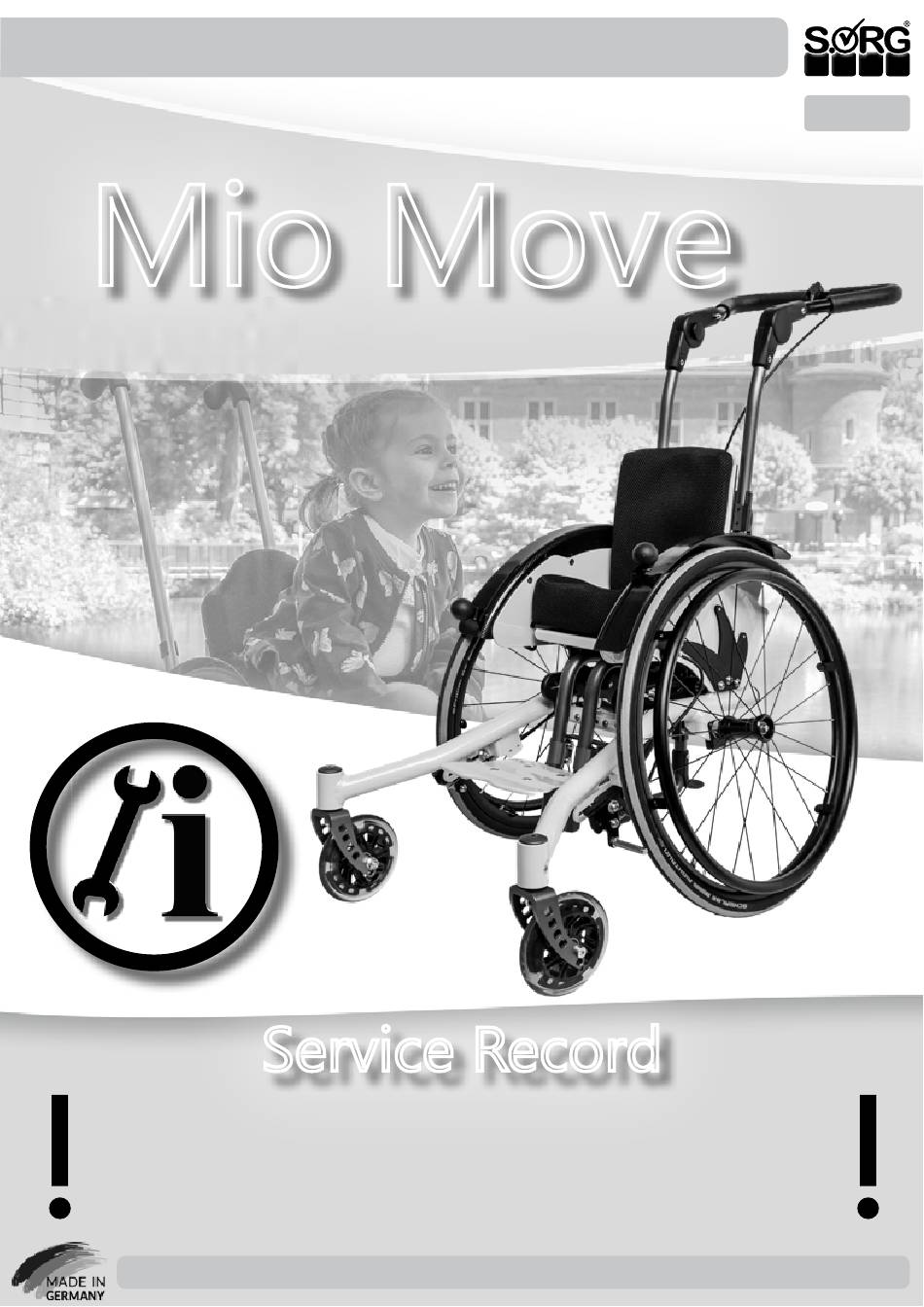

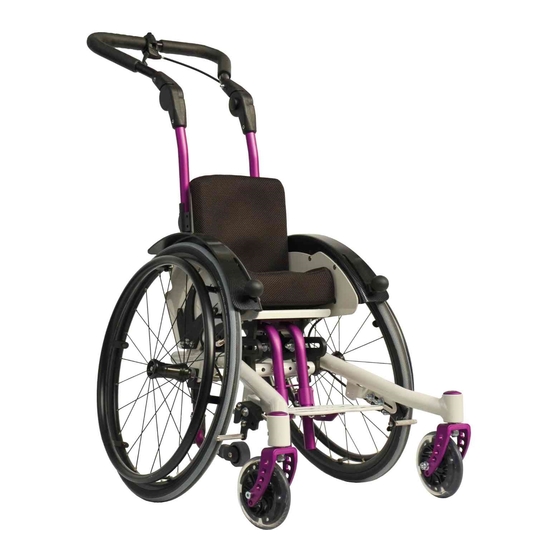

Service Record Mio Move
ENG
Mio Move
Service Record
In the following all individual adjustments of the wheelchair are
described. These adjustments require tools and specialised
knowledge. Please leave the adjustments to a qualified rehab
consultant.
2019-07-16
Service Record Mio Move
Unique people, unique solutions.
1 of 32

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mio Move and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SORG Mio Move

Summary of Contents for SORG Mio Move

  • Page 1 Service Record Mio Move Mio Move Service Record In the following all individual adjustments of the wheelchair are described. These adjustments require tools and specialised knowledge. Please leave the adjustments to a qualified rehab consultant. 2019-07-16 Service Record Mio Move Unique people, unique solutions.
  • Page 2 All texts, pictures and graphics underlie co- pyright protection. All rights, including co- pying, publishing, editing and translating, remain reserved. © by SORG Rollstuhltech- nik GmbH+Co. KG Benzstraße 3-5, 68794 Oberhausen-Rhein hausen / Germany. Our terms and conditions can be found on our order forms and at www.sorgrollstuhl-...

  • Page 3: Table Of Contents

    3.7.3 Setting the length of the brake lever 20 3.7.4 Drum brake 3.8 Assembly group anti-tipper 3.8.1 Adjust height 3.9 Assembly group truss pads 3.9.1 Classification 3.9.2 Vertical setting 3.9.3 Horizontal setting 3.10 Assembly group outdoor front end 3.10.1 Settings 2019-07-16 Service Record Mio Move 3 of 32...

  • Page 4: Wheelchair Overview

    13 rear wheel 14 quick-release axle 15 hand rim 16 push bail 17 triggering lever tilt mechanism 18 angle adjustment 19 firm curved back plate 20 Eccentric tensioner for push bail 21 anti-tipper 4 of 32 Service Record Mio Move 2019-07-16...

  • Page 5: General Information

    • Phillips screw driver • flat head screw driver • plastic mallet • side cutter • threadlocker (fluid) • bicycle inner tube repair kit • work bench/jaw vise with rubber pads 2019-07-16 Service Record Mio Move 5 of 32...

  • Page 6: Explanation Of Symbols

    Turn counter-clockwise view from the back steps to be done at the same time fasten parts steps to be done after each other remove parts steps to be done on both sides 6 of 32 Service Record Mio Move 2019-07-16...

  • Page 7: General Safety Instructions

    In combination of wheelchair and electric auxiliary drive, certain strains can occur which can lead to damage to the wheelchair. Slowly approach obstacles and carefully overcome them so that little force is applied to the caster, driving wheel and wheelchair as a whole. 2019-07-16 Service Record Mio Move 7 of 32...

  • Page 8: Assembly Groups

    Make sure the distance of the quick-release fitting is the same on the left and right! The camber and toe adjustment from 01.01.2017 can be found in our service brochure Camber and toe compensation. This can be found at http://www.sorgrollstuhltechnik.de/ 8 of 32 Service Record Mio Move 2019-07-16...

  • Page 9: Casters

    • change the casters, • if necessary, guide the husks and wheels in the new holes (B), • replace the safety nuts with new ones (!) • and retighten all the screws. 2019-07-16 Service Record Mio Move 9 of 32...

  • Page 10: Assembly Group Seat

    3.2 Assembly group seat 3.2.1 Tilting You do not need to make any adjustments on the tilting mechanism of the Mio Move. (1) A list of names of the individual assembly parts of the seat (the same parts are found mir- ror-inverted on the opposite side): •...

  • Page 11: Changing The Seat Width

    (B) in the tilting blockers from the outside • and tighten these with the cap nuts (3A). Be sure that the blockers are attached the same on both sides. 2019-07-16 Service Record Mio Move 11 of 32...

  • Page 12: Assembly Group Back

    (A). • Remove the four screws (B), • Widen the wheelchair as described, • screw on the new curved back plate (A) with the screws (B). 12 of 32 Service Record Mio Move 2019-07-16...

  • Page 13: Bracklet Tabs For The Curved Back Plate

    (2) Open the velcro connections (A) andbring the straps to the desired posi- tion. • Close the connections (A) again. min. 8 cm Velcro and velcro part must be min. Overlap 8 cm. 2019-07-16 Service Record Mio Move 13 of 32...

  • Page 14: Assembly Group Belt System

    • displace the metal locks (A) along the elongated holes (B) in to the position wanted • and retighten the screws. • Guide the belts back in and close the metal locks. 14 of 32 Service Record Mio Move 2019-07-16...

  • Page 15: Height Setting Of The Belt Holders

    Guide the top belt as far away from the neck of the child/user as possible. This is why you need to adjust the height of the top belt holder only with the child/user in the wheelchair. 2019-07-16 Service Record Mio Move 15 of 32...

  • Page 16: Assembly Group Leg Support

    (= slanting foot plate) or backward (= rising foot plate) on the holder unit (C). • Loosen all four screws (D), • put the foot plate in the position wanted • and retighten the screws. 16 of 32 Service Record Mio Move 2019-07-16...

  • Page 17: Foot Plate Can Be Elevated, Divided

    Setting the tilting angle: • Loosen the screws (C) of the cushion holder on both sides inside and outside, • place the cushion (B) in the position wanted • and retighten the screws (C). 2019-07-16 Service Record Mio Move 17 of 32...

  • Page 18: Assembly Group Side Guards

    3.6 Assembly group side guards 3.6.1 Side guards The side guards on the Mio Move cannot be changed. (C) (D) Adjusting the skirt guard (1) The skirt guard (A) can be adjusted in height: • Loosen the screws (B) on both sides, •...

  • Page 19: Assembly Group Brake

    Loosen both screws (D), • move the whole brake pad ,while the brake is open, in the new position • and retighten the screws (D). Afterwards, check the functionality of the brake. 2019-07-16 Service Record Mio Move 19 of 32...

  • Page 20: Setting The Length Of The Brake Lever

    • locking nut (B) • push-on nipple (C) • holder (D) • holder screw (E) • inner cable (F) • locking lever (G) • clamp (H) • brake shoe (I) (G) (I) 20 of 32 Service Record Mio Move 2019-07-16...
  • Page 21 Bowden cables, • defected Bowden cable, • dirty brake pads/brake shoes. The wheelchair with passenger (max. load capacity) must stand securely, with drawn brake, on a ramp with a 12,3% (= 7°) decent. 2019-07-16 Service Record Mio Move 21 of 32...

  • Page 22: Assembly Group Anti-Tipper

    • place the anti-tipper wheel and the hold- er back on the anti-tipper bail (C), • place the screws (B) in the hole (D) • and tighten the screw (B). 22 of 32 Service Record Mio Move 2019-07-16...

  • Page 23: Assembly Group Truss Pads

    Remove the cover, • remove both screws (A), • displace the cushion (B) in the alterna- tive holes (C), • replace both screws (A) • and retighten them. • After, replace the covers. 2019-07-16 Service Record Mio Move 23 of 32...

  • Page 24: Horizontal Setting

    Horizontal extension (3) For the horizontal extension add a exten- sion piece (spare part): • Remove the screws (A), • add the extension piece • and screw it together on both ends. 24 of 32 Service Record Mio Move 2019-07-16...

  • Page 25: Assembly Group Outdoor Front End

    (A) of the height adjustment (B). • Displace the screws (A) along the holes of the height adjustment in to the position wanted • and retighten the screws (A). 2019-07-16 Service Record Mio Move 25 of 32...
  • Page 26 (but at the same time can also be a form of track fixation). 26 of 32 Service Record Mio Move 2019-07-16...

  • Page 27: Repairs And Maintenance

    Adjust seat tilt to 90° (if available) • If necessary, pack removable textile parts in foil or similar • Secure the wheelchair from rolling away and getting dirty • Store in a dry environment without aggressive environmental influences. 2019-07-16 Service Record Mio Move 27 of 32...

  • Page 28: Reinstatement

    (if available) Clean the wheelchair and oil all moving parts. If you notice any defects during maintenance, please contact your specialist retailer im- mediately and do not use the wheelchair anymore. 28 of 32 Service Record Mio Move 2019-07-16...
  • Page 29 Locking mechanisms (tripod springs of push handles, quick-release axles, eccentric clamps, etc.) checked for functionality, anti-tipper checked for firm fit and fuctionality. Oiling: moving parts and bearings oiled Final check: functional check of all mechanical adjusting devices carried out. 2019-07-16 Service Record Mio Move 29 of 32...

  • Page 30: Technical Specifications

    3 years at not excessive demand life cycle of the wheelchair 5 years Normative requirements The wheelchair meets the requirements of ISO 7176-8 and the requirements against ignition. 30 of 32 Service Record Mio Move 2019-07-16...

  • Page 31: Meaning Of Labels

    5.2 Meaning of labels The meaning of the individual labes is explained in the texts at the respective place. If the type plate is damaged or gets lost, a new one can be ordered from SORG Rollstuhltechnik. Type plate: manufacturer address...
  • Page 32 Service Record Mio Move SORG Rollstuhltechnik GmbH + Co. KG Benzstraße 3-5 68794 Oberhausen-Rheinhausen Germany Fon +49 7254 9279-0 Fax +49 7254 9279-10 info@sorgrollstuhltechnik.de www.sorgrollstuhltechnik.de company stamp...
