Summary of Contents for SORG Mio Move
- Page 1 service record Move service record for your rehab technician...
-
Page 2: Imprint
We are a member of rehaKIND e.V. International association child and adolescent rehabilitation COPYRIGHT © by SORG Rollstuhltechnik GmbH + Co. KG Benzstraße 3-5, 68794 Oberhausen-Rheinhausen. All texts and pictures in this user manual underlie the international copyright protection and are not allowed to be published without our consent –... -
Page 3: Table Of Contents
(OUTDOOR FRONT END) ADJUSTMENTS ON THE WHEELCHAIR REPAIRS AND MAINTENANCE 22 ASSEMBLY GROUP WHEELS CHECK LIST 2.1.1 Centre of gravity/ active MEASUREMENTS MIO MOVE level/seat height TYPE LABEL 2.1.2 Camber DECLARATION OF CONFORMITY 2.1.3 Casters ASSEMBLY GROUP SEAT 2.2.1 Tilting 2.2.2 Changing the seat position... -
Page 4: Wheelchair Overview

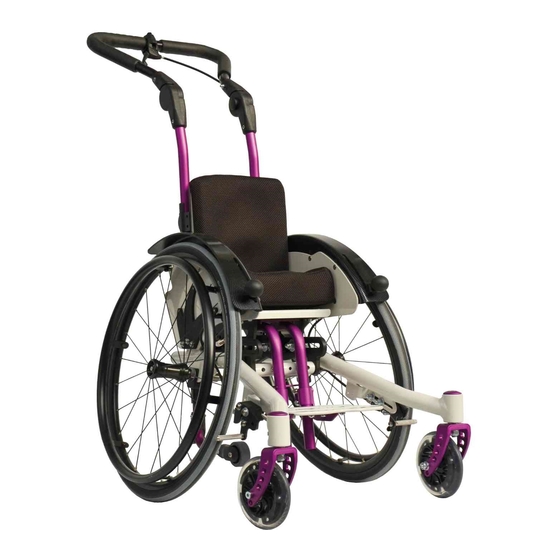

Mio Move wheelchair overview picture: Mio Move with taurus frame push bail frame foot plate seat plate connection tube for leg release lever for seat tilting seat cushion support angle adjustment for push bail wheel lock user lever caster fork... -
Page 5: Service And Maintenance
service record wheelchair IMMEDIATELY after receiving it and IN THE PRESENCE of the deliverer (forwarding company) for ADJUSTMENTS ON THE WHEELCHAIR possible damages that may have occurred during trans- portation. ATTENTION: DANGER OF BRUISING When operating the adjustable parts (back rest, side CONFIRMATION OF RECEIPT guard, leg support, wheel lock, positioning aids etc.) as �... -
Page 6: Adjustments On The Wheelchair
18.50.03. The wheel- base of Mio, Kika II and Mio Move is fixed and cannot be changed. The centre of gravity is adjusted by the seat or seat angle (see the appropriate chapter seat). -
Page 7: Assembly Group Seat
• retighten all four cap nuts (B). (4) vertical displacement The vertical displacement by Mio Move takes place over the thickness of the seat cushion and/or over the attachment of spacer bushings between seat board (A) and the seat hold- ers (B). -
Page 8: Changing The Seat Width
Mio Move 2.2.3 Changing the seat width The seat width is changed 2 cm through spacers between frame and side guards. • For preparation, remove the driving wheels, the push bail, the stabilizing rod and back depression. • (1) Remove the side guards on both sides with the six screws (A). -
Page 9: Changing The Seat Depth
service record 2.2.4 Changing the seat depth (1) To extend the seat board (A) with the seat extension (B): • Loosen the four screws (C), • pull the seat extension (B) as far forward as needed • and retighten the screws (C). 2.2.5 Blocking the tilting (2) Changing the maximum tilt The measurement of the maximum tilting forward and/or... -
Page 10: Assembly Group Back
Mio Move ASSEMBLY GROUP BACK The slot (A) of the back pipes (B) is screwed on to the seat holder (C) with the screw (D). Picture (1) shows a back pipe at the lowest position. The back pipes can be extended 50... -
Page 11: Attachment For Belt Systems
service record ATTACHMENT FOR BELT SYSTEMS 2.4.1 Displacing the bottom metal locks • (1+2) Open the metal locks (A) and remove the belts, • remove both screws (B) at the bottom of the belt holder, • displace the metal locks (A) in the wanted holes •... -
Page 12: Assembly Group Push Aids
Mio Move 2.5. ASSEMBLY GROUP PUSH AIDS 2.5.1 Height adjustable push bail (1) At the bottom end of the height adjustable push bail tubes (A) there are tripod springs (B) with which an unwanted sliding out of the holders (C) by the tubes is prevented. -
Page 13: Assembly Group Leg Supports
service record ASSEMBLY GROUP LEG SUPPORTS Setting the angle: (3) The angle of the foot plate is set by us at 90° ex works. ATTENTION (4) By changing the end stop (A) on the tubes (B) the angle A too highly set foot plate can lead to a kink stance in the of the foot plate can be adjusted up to ±... -
Page 14: Foot Plate Can Be Elevated, Divided
Mio Move 2.6.2 Foot plate can be elevated, divided 2.6.3 Leg rest (1) In order to elevate the leg support: (3+4) Setting the position: • Secure the wheelchair from rolling away by • Loosen the clamp lever (A) underneath the cush-... -
Page 15: Assembly Group Side Guards
ASSEMBLY GROUP SIDE GUARDS The side guards on the Mio Move cannot be changed. (C) (D) Adjusting the skirt guard (1) The skirt guard (A) can be adjusted in height: • Loosen the screws (B) on both sides, •... -
Page 16: Assembly Group Brakes
Mio Move ASSEMBLY GROUP BRAKES 2.8.1 Wheel lock/service brake ATTENTION WHEEL LOCKS ONLY SERVE THE PURPOSE OF PUTTING THE WHEELS IN A RESTING POSITION. THEY ARE NOT MADE TO BRAKE THE WHEELCHAIR WHILE DRIVING. ATTENTION BE SURE TO CHECK THE FUNCTIONALITY OF THE BRAKES AFTER EVERY ADJUSTMENT ON THE DRIVING WHEELS. -
Page 17: Drum Brake
service record 2.8.4 Drum brake (D)(E) The brake force of the drum brake is set ideally by our mechanics. ATTENTION For safety reasons it is necessary to regularly check the functionality, since through permanent use an adjustment of the brake force or even a replacement of a Bowden cable can be essential. -
Page 18: Assembly Group Anti-Tipper
Mio Move ASSEMBLY GROUP ANTI-TIPPER (1) The anti-tipper consists of 4 parts: Anti-tipper holder (A), foot lever (B), anti-tipper wheel (C) with holder and the an- ti-tipper bail (D) which can be pulled down and turned 180° (partly sticking in the anti-tipper holder). -
Page 19: Assembly Group Truss Pads
service record 2.10 ASSEMBLY GROUP TRUSS PADS 2.10.1 Classification (1) The truss pads consist of the following parts: • (A) locking joint • (B) connection (C-bar) • (C) truss pad cushion • (D) truss pad holder 2.10.2 Vertical setting (2) The vertical setting of the truss pads occurs on the one hand by moving the locking joint (A) along the c-bar (B): •... -
Page 20: Horizontal Setting
Mio Move 2.10.3 Horizontal setting (5a) (5a+b) The horizontal setting occurs on the one hand by dis- placing the locking joint. • Remove both screws (A), • place the locking joint in the alternative holes (B), • place the screws (A) in the metal tongue (picture 3C, last page), •... -
Page 21: Push Aid For Outside
service record 2.11 PUSH AID FOR OUTSIDE (OUTDOOR FRONT END) Length of the Outdoor Front End With the length of the Outdoor Front End (OFE) you can set the driving and pushing comfort: • long Outdoor Front End = very strong absorption of vibrations, very soft driving comfort, less driving and pushing strain, big turning circle. -
Page 22: Repairs And Maintenance
Mio Move 3 REPAIRS AND MAINTENANCE MEASUREMENTS MIO MOVE Misprints and Technical changes reserved. � INDICATION For safety reasons, when using the wheelchair regularly a Indication Measurements Comment yearly inspection according to the following maintenance seat width (SW) 2-cm-intervals 20 to 34 cm opt. -
Page 23: Type Label
CE-sign back height seat depth max. load type number capacity DECLARATION OF CONFORMITY SORG Rollstuhltechnik GmbH & Co.KG Benzstraße 3-5 D-68794 Oberhausen-Rheinhausen Tel.: +49 7254 9279.0 Fax: +49 7254 9279.10 e-mail: info@sorgrollstuhltechnik.de Web: www.sorgrollstuhltechnik.de declares with this in sole responsibility, that the following aid Mio Move Type Nr.: 604... - Page 24 Mio Move Your Specialized Retailer company stamp SORG Rollstuhltechnik GmbH + Co. KG Benzstraße 3-5 D-68794 Oberhausen-Rheinhn. Germany Tel. +49 7254-9279-0 Fax +49 7254-9279-10 info@sorgrollstuhltechnik.de www.sorgrollstuhltechnik.de Technical changes and misprints reserved.
