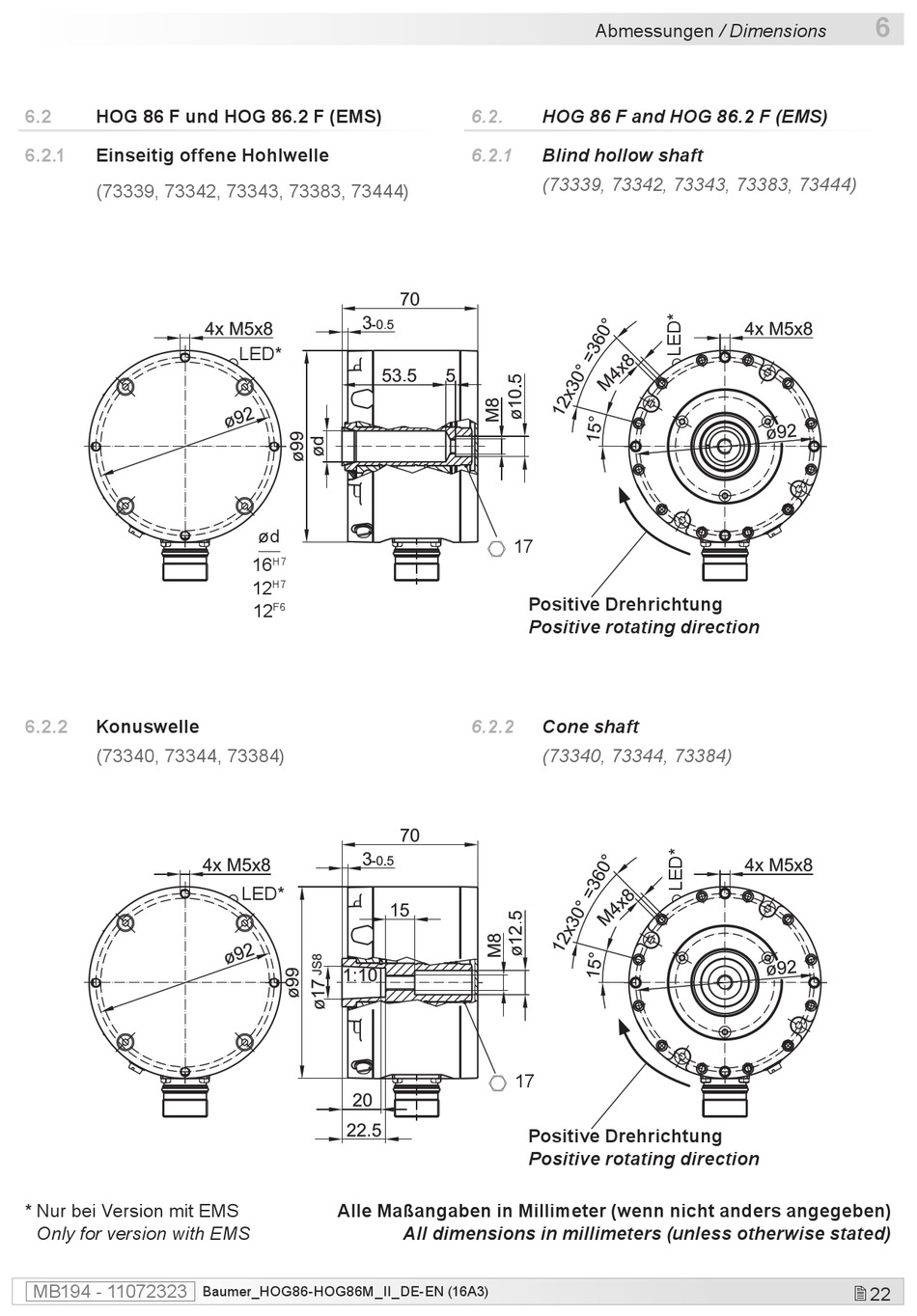

6.2
HOG 86 F und HOG 86.2 F (EMS)
6.2.1
Einseitig offene Hohlwelle
(73339, 73342, 73343, 73383, 73444)
6.2.2
Konuswelle
(73340, 73344, 73384)
* Nur bei Version mit EMS
Only for version with EMS
MB194 - 11072323
LED*
ød
16
H7
12
H7
12
F6
LED*
Alle Maßangaben in Millimeter (wenn nicht anders angegeben)
Baumer_HOG86-HOG86M_II_DE-EN (16A3)
6.2.
HOG 86 F and HOG 86.2 F (EMS)
6.2.1
Blind hollow shaft
(73339, 73342, 73343, 73383, 73444)
17
Positive Drehrichtung
Positive rotating direction
6.2.2
Cone shaft
(73340, 73344, 73384)
17
Positive Drehrichtung
Positive rotating direction
All dimensions in millimeters (unless otherwise stated)
Abmessungen / Dimensions
6
22
