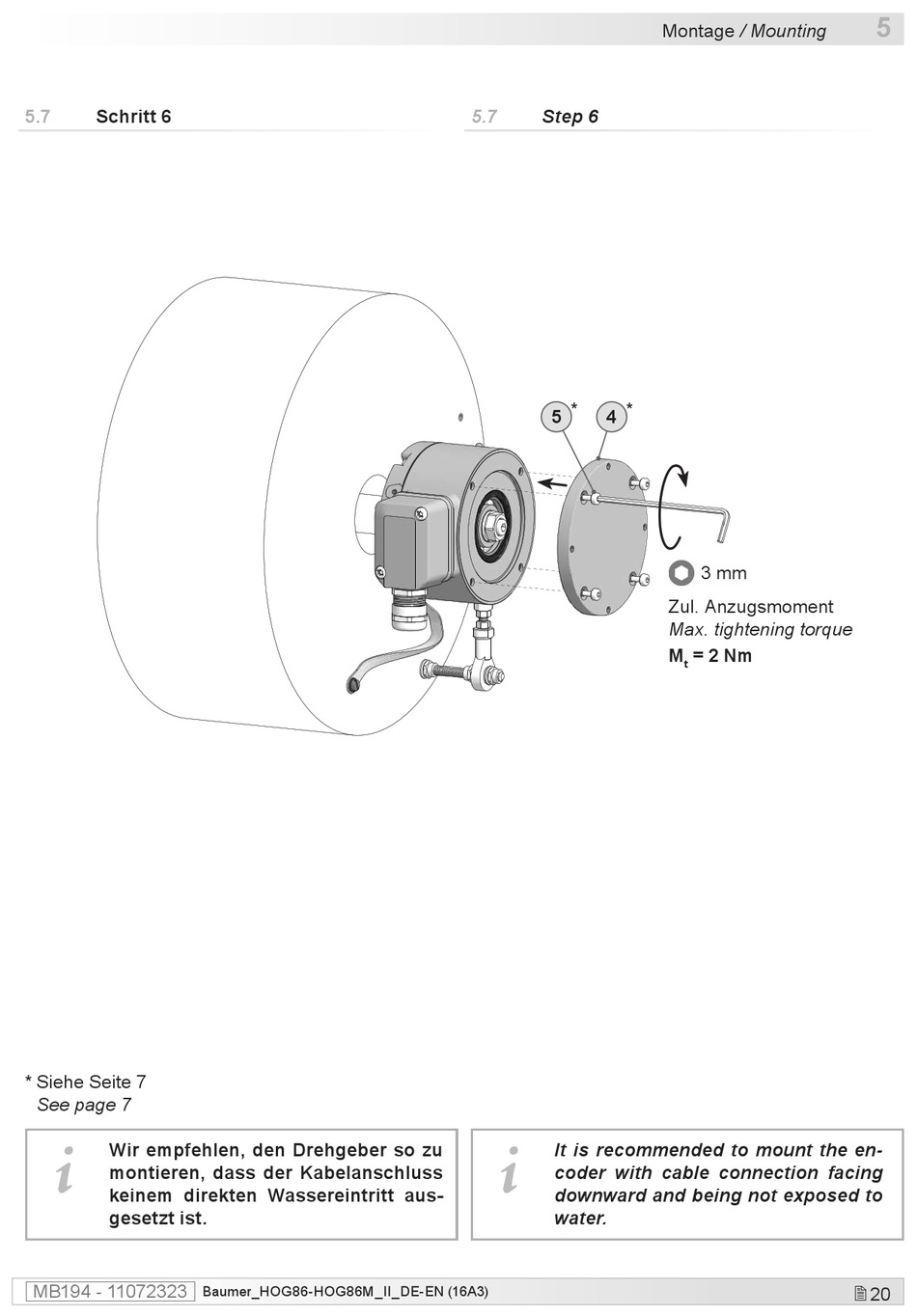

5.7
Schritt 6
* Siehe Seite 7
See page 7
i
Wir empfehlen, den Drehgeber so zu
montieren, dass der Kabelanschluss
keinem direkten Wassereintritt aus-
gesetzt ist.
MB194 - 11072323
Baumer_HOG86-HOG86M_II_DE-EN (16A3)
5.7
Step 6
*
*
5
4
i
It is recommended to mount the en-
coder with cable connection facing
downward and being not exposed to
water.
Montage / Mounting
3 mm
Zul. Anzugsmoment
Max. tightening torque
M
= 2 Nm
t
5
20
