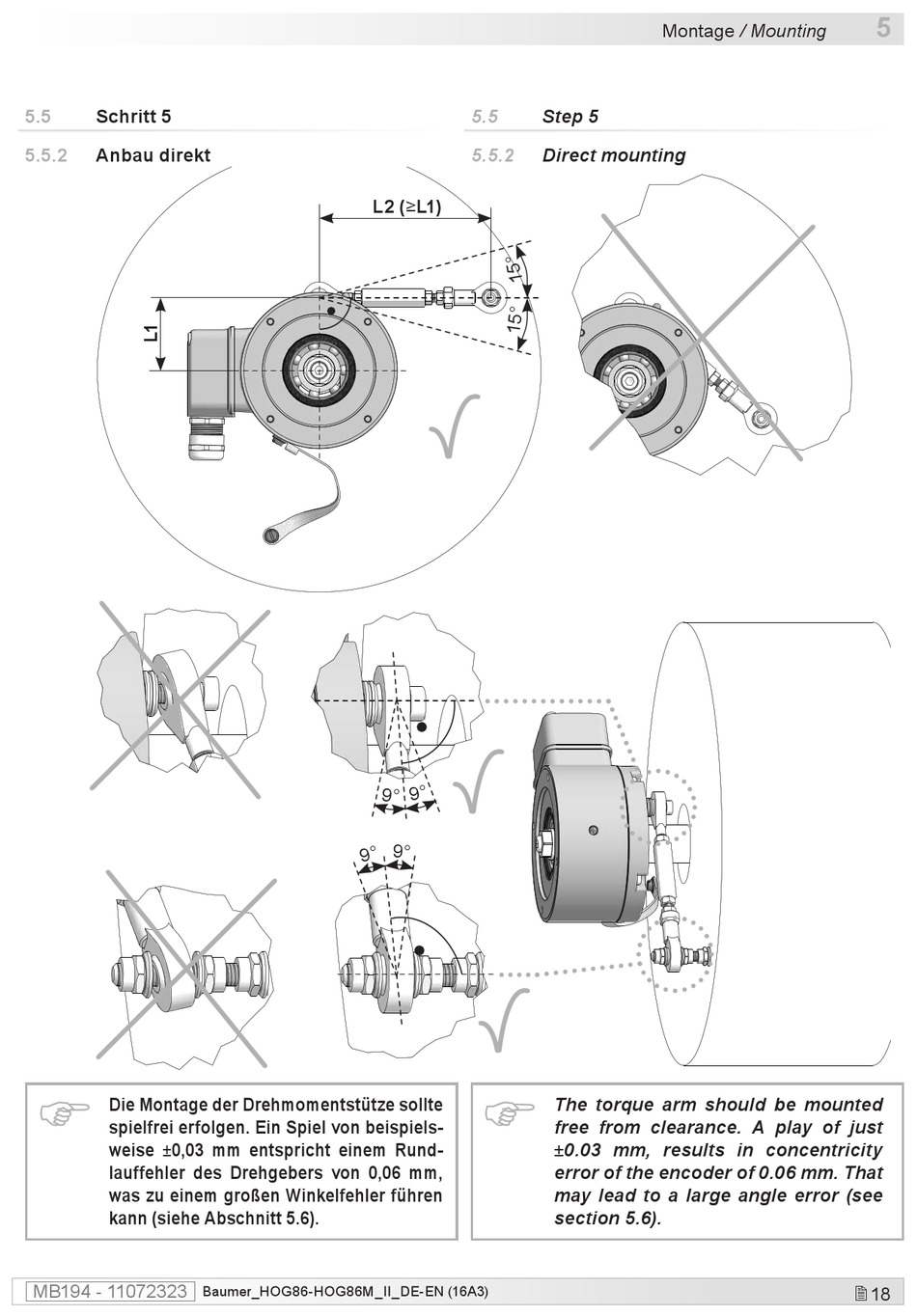

5.5
Schritt 5
5.5.2
Anbau direkt
Die Montage der Drehmomentstütze sollte
spielfrei erfolgen. Ein Spiel von beispiels-
weise ±0,03 mm entspricht einem Rund-
lauffehler des Drehgebers von 0,06 mm,
was zu einem großen Winkelfehler führen
kann (siehe Abschnitt 5.6).
MB194 - 11072323
L2 (≥L1)
Baumer_HOG86-HOG86M_II_DE-EN (16A3)
5.5
Step 5
5.5.2
Direct mounting
The torque arm should be mounted
free from clearance. A play of just
±0.03 mm, results in concentricity
error of the encoder of 0.06 mm. That
may lead to a large angle error (see
section 5.6).
Montage / Mounting
5
18
