5.3

Schritt 3

5.3.1

Version mit einseitig offener Hohlwelle

* Siehe Seite 7 oder 8
See page 7 or 8
Motorwelle einfetten!
Die Antriebswelle sollte einen mög-
lichst kleinen Rundlauffehler aufwei-
sen, da dieser zu einem Winkelfehler
führen kann (siehe Abschnitt 5.6).
Außerdem verursachen Rundlauffeh-
ler Vibrationen, die die Lebensdauer
des Drehgebers verkürzen können.
MB194 - 11072323
53
L
M6
*
3
Alle Maßangaben in Millimeter (wenn nicht anders angegeben)
Baumer_HOG86-HOG86M_II_DE-EN (16A3)
5.3

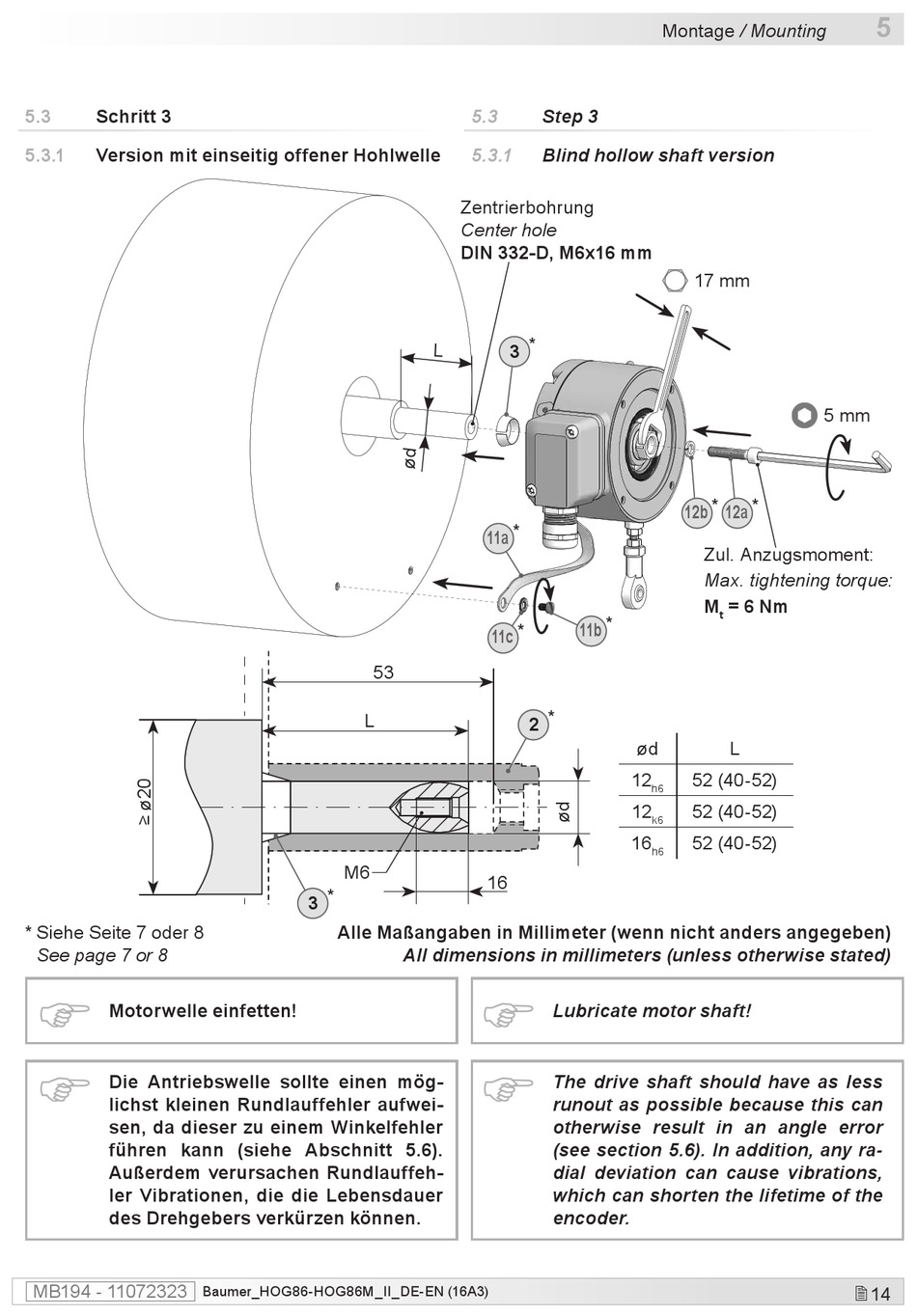

Step 3

5.3.1

Blind hollow shaft version

Zentrierbohrung
Center hole
DIN 332-D, M6x16 mm
3 *
*
11a
*
11c
*
2
16
All dimensions in millimeters (unless otherwise stated)
Lubricate motor shaft!
The drive shaft should have as less
runout as possible because this can
otherwise result in an angle error
(see section 5.6). In addition, any ra-
dial deviation can cause vibrations,
which can shorten the lifetime of the
encoder.
Montage / Mounting
17 mm
*
*
12b 12a
Zul. Anzugsmoment:
Max. tightening torque:
M
= 6 Nm
t
*
11b
ød
L
12
52 (40-52)
h6
12
52 (40-52)
k6
16
52 (40-52)
h6
5
5 mm
