Harmony Series H1 Mortise Lock
5 Outside Escutcheon and Inside Mounting Plate Installation (Continued)

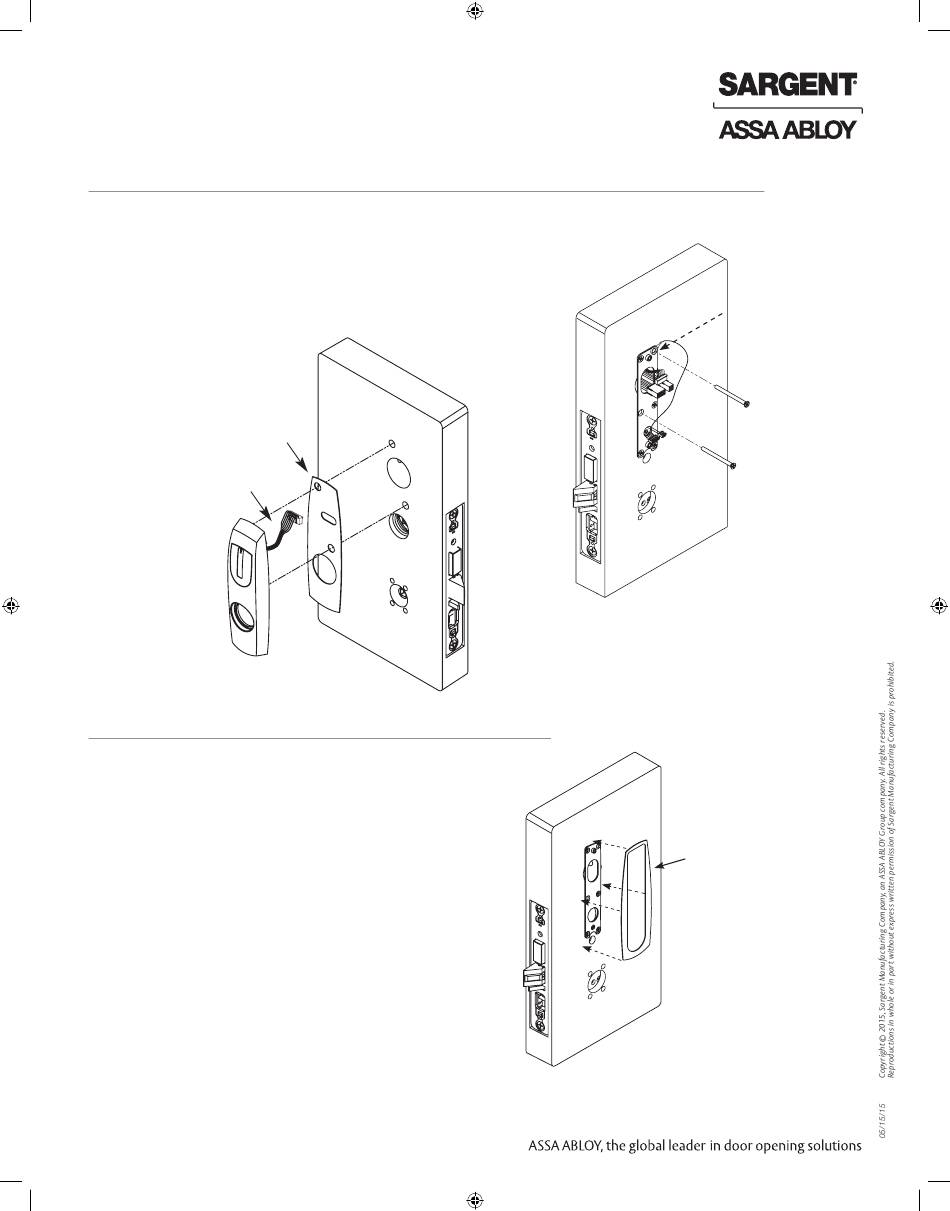

2. Feed the reader cable located on the back of the outside
escutcheon through the door prep. Remember, the outside
gasket must be used when installing Harmony in an
outdoor application (Fig. 5B).
3. Secure the mounting plate to the outside escutcheon with
(2) #8-32 x 2" flat head machine screws (Fig. 5C).
Outside of Door
Gasket required
for exterior door
applications
Reader Cable
6 Install Inside Gasket (if necessary)
Add gasket (if necessary):
Remember to install inside gasket when
lock is being used in an outdoor application.
Gasket fits snug around plate at top and sides,
leaving room for the hole at the bottom.
Remove (peel) backing and place gasket
on door (Fig. 6).
A7877F • 800-810-WIRE (9473) • www.sargentlock.com
Fig. 5B
Fig. 6
9
Attach earth ground
ring terminal to top right screw
Inside of Door
Fig. 5C
Inside of Door
Required for exterior
door applications.
