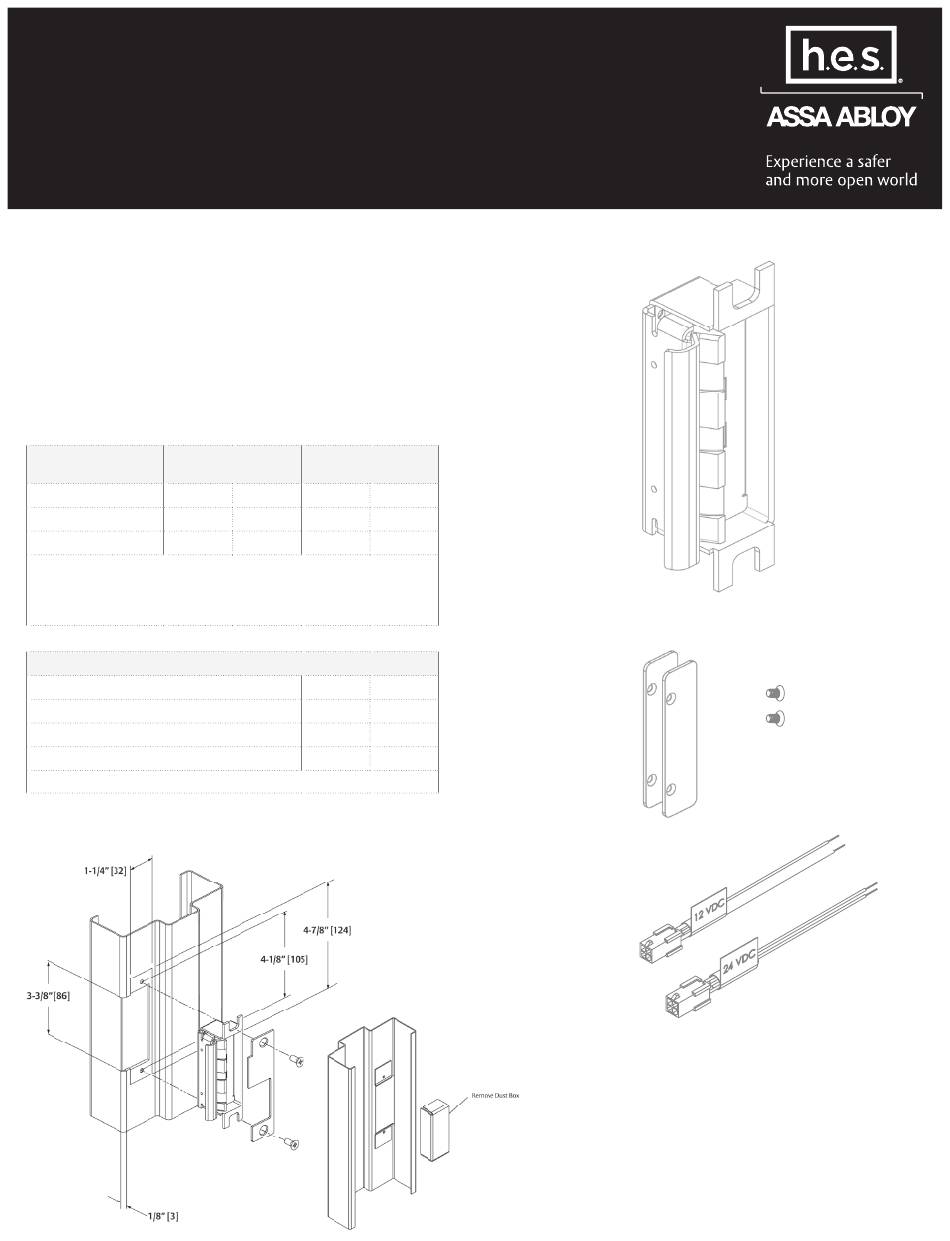

8500 Series
Electric Strike
Installation Instructions
Product Components
A
8500 Series Electric Strike Body
B
Horizontal Lockdown Shims
C
#4–40 Screws (2)
D
12 & 24 Volt Plug In Connectors
Electrical Specifications
Electrical Ratings
for Solenoid
Continuous Duty
Voltage
12 VDC
Resistance in Ohms
50
Amps
.24
Solenoids are rated at +/– 10% indicated value.
* 10% max duty cycle (2 min. max on time)
For inductive kickback protection, consider using with the HES 2005M3
SMART Pac
III or 2001M Plug-in Bridge Rectifier with built-in MOV.
®
Minimum Wire Guage Requirements
Voltage
200 feet or less
200–300 feet
300–400 feet
Lengths based on round trip.
Frame Preparation
Intermittent Duty*
24 VDC
12–16 VAC
24 VAC
200
50
200
.12
.24–.32
.12
12 VDC
24 VDC
18 guage
20 guage
16 guage
18 guage
14 guage
16 guage
A
B
C
D
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the h.e.s. 8500 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Assa Abloy h.e.s. 8500 Series

  • Page 1 8500 Series Electric Strike Installation Instructions Product Components 8500 Series Electric Strike Body Horizontal Lockdown Shims #4–40 Screws (2) 12 & 24 Volt Plug In Connectors Electrical Specifications Electrical Ratings for Solenoid Continuous Duty Intermittent Duty* Voltage 12 VDC 24 VDC 12–16 VAC 24 VAC Resistance in Ohms...
  • Page 2: Installation

    Installation WARNING: Before connecting any device at the installation site, verify input voltage using a multimeter. Many power supplies and low voltage transformers operate at higher levels than listed. Any input voltage exceeding 10% of the solenoid rating may cause severe damage to the unit. Installation wiring for the product and wiring methods shall be in accordance with the National Electrical Code, ANSI/NFPA 70.
  • Page 3 Lockset Style Position the frame (in the direction of the Sargent 8100, opening), and tighten screws. 8200, 9200; ASSA ABLOY CLOSE the door. If excessive movement ACCENTRA ™ 8800 (door play) when latched, remove strike (formerly Yale from the jamb cutout, and add one or...
  • Page 4 Printed in the U.S.A. Patent pending and/or patent www.assaabloydss.com/patents techsupport.hes@assaabloy.com Copyright © 2024, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company. hesinnovations.com | 800 626 7590 All rights reserved. Reproduction in whole or in part without the express written...
  • Page 5 8500 Install Instructions Appendix WARNING: In order to ensure proper catch and release of the latchbolt, the 8500 electric strike requires that the opening be plumb and square . Important Figure 1: TroubleShooting Tips Apply Force to L:atch Bolt Door sag and latchbolt wear are two common conditions that may prevent an electric strike from working properly.
