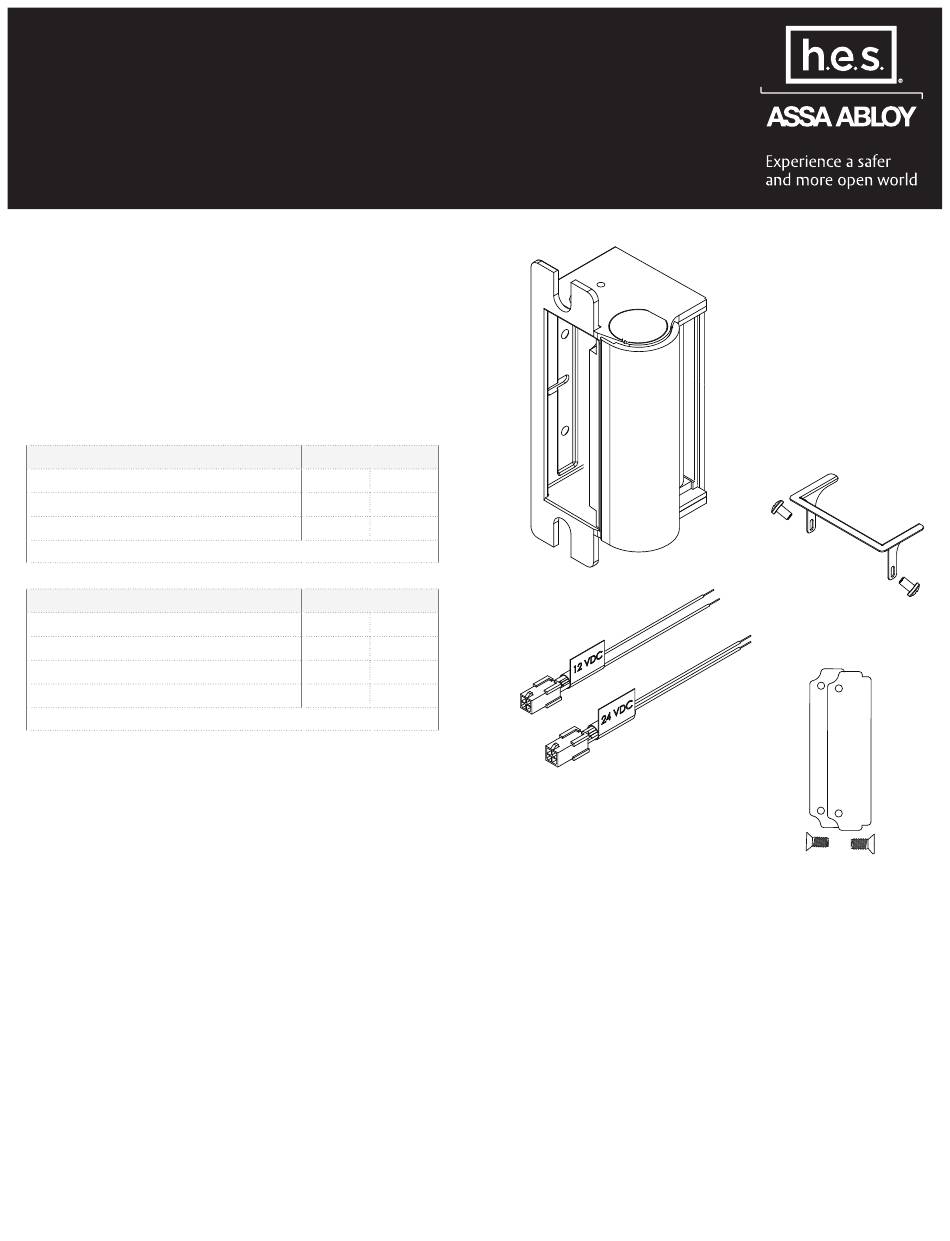

1006
Electric Strike
Installation Instructions
Product Components
A
1006 Electric Strike Body
B
Trim Enhancer (with screws)
C
12 & 24 Volt Plug In Connectors
D
Keeper Shims with screws (2)
Electrical Specifications
Electrical Ratings for Solenoid
Voltage
Resistance in Ohms
mA Continuous Duty
Solenoids are rated at +/– 10% indicated value.
Minimum Wire Guage Requirements
Voltage
200 feet or less
200–300 feet
300–400 feet
Lengths based on round trip.
Continuous Duty
12 VDC
24 VDC
25
100
480
240
Continuous Duty
12 VDC
24 VDC
18 guage
18 guage
16 guage
18 guage
14 guage
16 guage
A
C
B
D
1
