5000 | 5300 Series
Electric Strikes
Installation Instructions

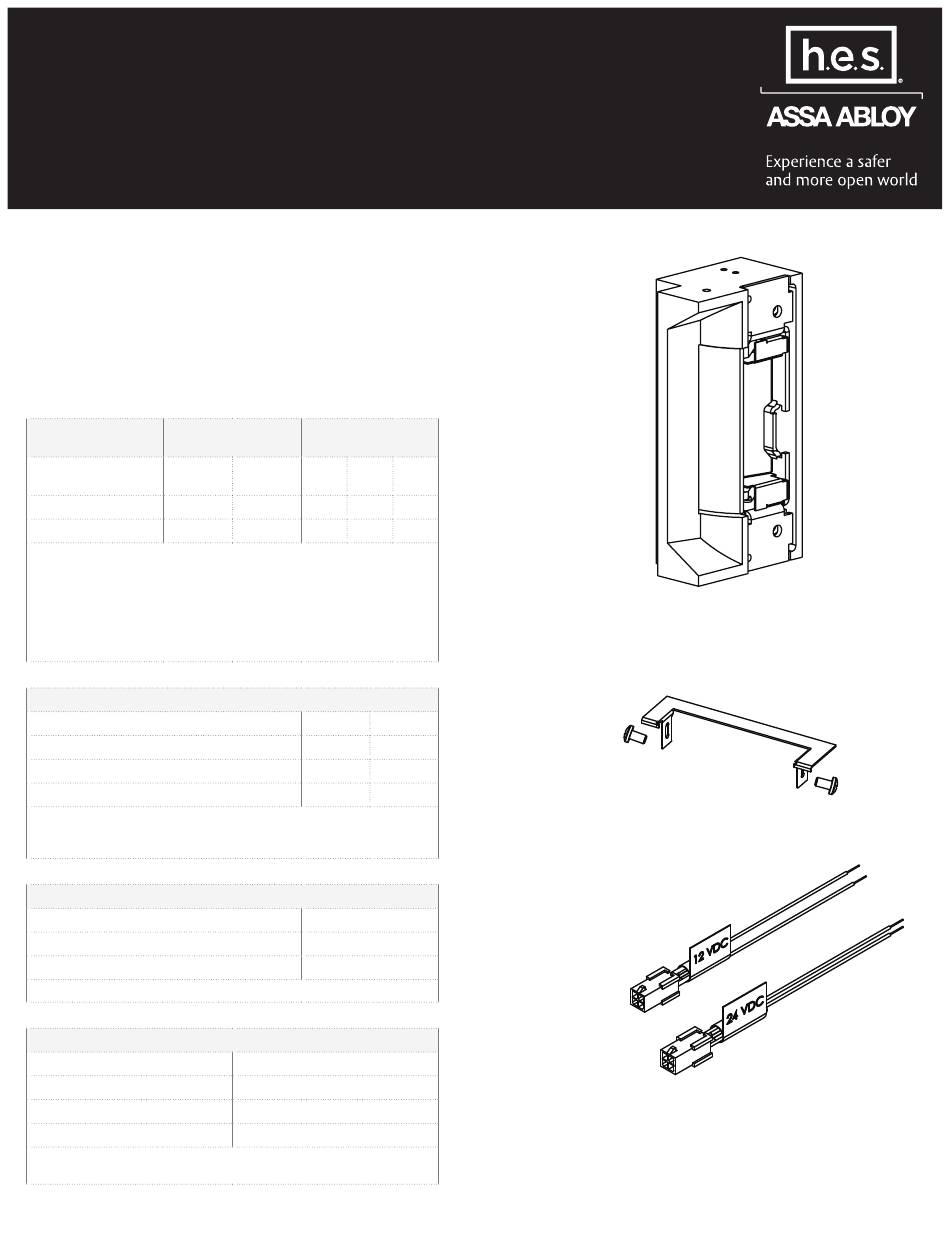

Product Components
A
5000 | 5300 Electric Strike Body
B
Trim Enhancer & Screws (#4-40 x 1/8")
C
12 & 24 Volt Plug In Connectors
Electrical Specifications
Electrical Ratings
for Solenoid
Continuous Duty
Voltage
12 VDC
Resistance in Ohms
50
Amps
.24
Solenoids are rated at +/– 10% indicated value.
* 10% max duty cycle (2 min. max on time)
Shall be powered by a a UL 294 Class 2 Power Limited power supply or Listed Access
Control units or ULC-60839-11-1: Grade 1 listed Access Control Units.
For inductive kickback protection, consider using with the HES 2005M3 SMART Pac
or 2001M Plug-in Bridge Rectifier with built-in MOV (not evaluated by UL294/UL1034).
Minimum Wire Gauge Requirements
Voltage
200 feet or less
200–300 feet
300–400 feet
Lengths based on round trip. The minimum permissible wire size to be used shall
not be less than 26 AWG. Wiring methods shall be in accordance with the National
Electrical Code (ANSI/NFPA70), local codes and the authorities having jurisdiction.
UL1034 Performance Levels
Static Strength
Dynamic Impact
Endurance
Suitable for outdoor use.
UL294 Performance Levels*
Destructive Attack
Line Security
Endurance
Standby Power
*Monitor options were not evaluated to UL294/UL1034/
ULC-60839-11-1: Grade 1. Indoor use.
Intermittent Duty*
12
16
24
24 VDC
VAC
VAC
VAC
200
50
50
200
.12
.24
.32
.12
®
12 VDC
24 VDC
18 gauge
20 gauge
16 gauge
18 gauge
14 gauge
16 gauge
1,500 lbs
70 ft–lbs
250,000 cycles
Level I (No attack test)
Level I (No line security)
Level IV (100,000 cycles)
Level I (No secondary power source)
III
A
B
C
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the h.e.s. 5000 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Assa Abloy h.e.s. 5000 Series

  • Page 1 5000 | 5300 Series Electric Strikes Installation Instructions Product Components 5000 | 5300 Electric Strike Body Trim Enhancer & Screws (#4-40 x 1/8") 12 & 24 Volt Plug In Connectors Electrical Specifications Electrical Ratings for Solenoid Continuous Duty Intermittent Duty* Voltage 12 VDC 24 VDC...
  • Page 2 Installation WARNING: Before connecting any device at the installation site, verify input voltage using a multimeter. Many power supplies and low voltage transformers operate at higher levels than listed. Any input voltage exceeding 10% of the solenoid rating may cause severe damage to the unit. Installation wiring for the product and wiring methods shall be in accordance with the National Electrical Code, ANSI/NFPA 70.
  • Page 3 Installation (continued) Converting the Diagram 2: Fail Safe Conversion Operation Mode This unit ships in Fail Secure mode. To convert to Fail Safe mode, perform the following instructions. The system shall not be installed in the fail-secure mode unless permitted by local authority having jurisdiction and shall not interfere with the operation of Listed panic hardware.
  • Page 4 Warranty For information on warranty coverage and replacement options, please visit hesinnovations.com/warranty Printed in the U.S.A. Patent pending and/or patent www.assaabloydss.com/patents techsupport.hes@assaabloy.com 8 -1/2" 10" 8 -1/2" Copyright © 2025, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company. 1 -7/16" [215.6] hesinnovations.com | 800 626 7590 [254] [215.6] [36.6] All rights reserved.
