INSTRUCTIONS FOR INSTALLING 8888, 12-8888, 8800, 12-8800,
WS8800, 12-WS8800, HC-8800 and 12-HC8800 SERIES
RIM EXIT DEVICES WITH ALL STANDARD TRIM
FOR ASSISTANCE, CONTACT SARGENT AT 800-727-5477 or www.sargentlock.com
US PATENT No 268003 • CANADIAN PATENT No RD1981
AVAILABLE STOCK LENGTHS
Length "E": 32" door, no cut off required.
Can be cut to fit doors down to 24" wide.
Length "F": 36" door, no cut off required.
Can be cut to fit doors down to 33" wide.
Length "J": 42" door, no cut off required.
Can be cut to fit doors down to 37" wide.
Length "G": 48" door, no cut off required.
Can be cut to fit doors down to 43" wide.
16- Cylinder Lockdown

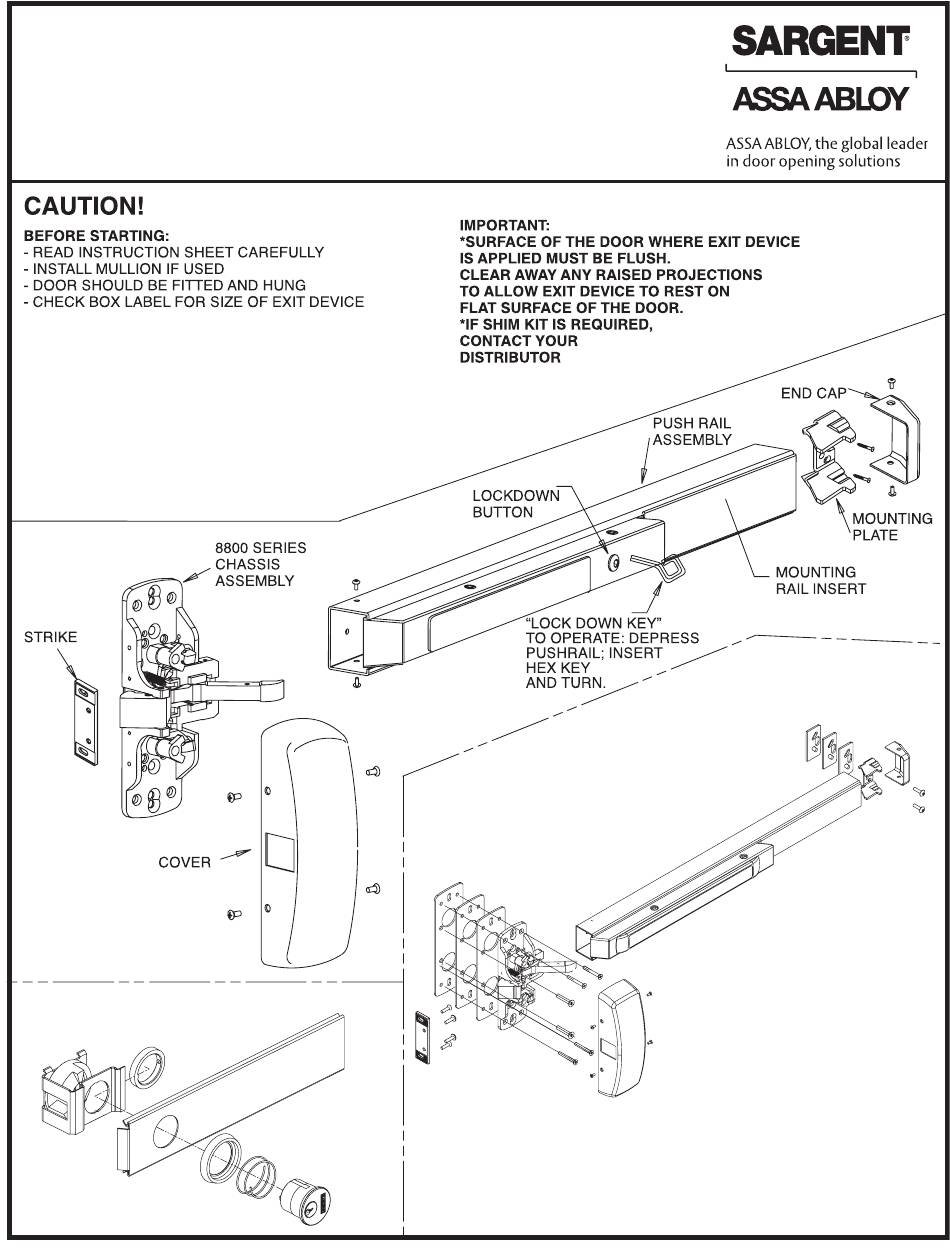

(Exploded View for clarity)
WS8800 & 12-WS8800 Rim Exit Device
(Shown Below)
- Requires 3 shims under the
chassis and end bracket
HC8800 & 12-HC8800 Rim Exit Device
(Not Shown )
- Requires 2 shims under the chassis and end bracket
