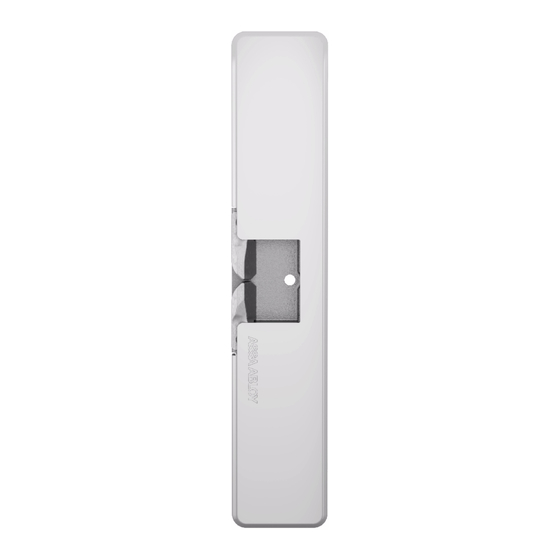

Assa Abloy HES 9400 Series Installation Template

Electric Strike Installation Template

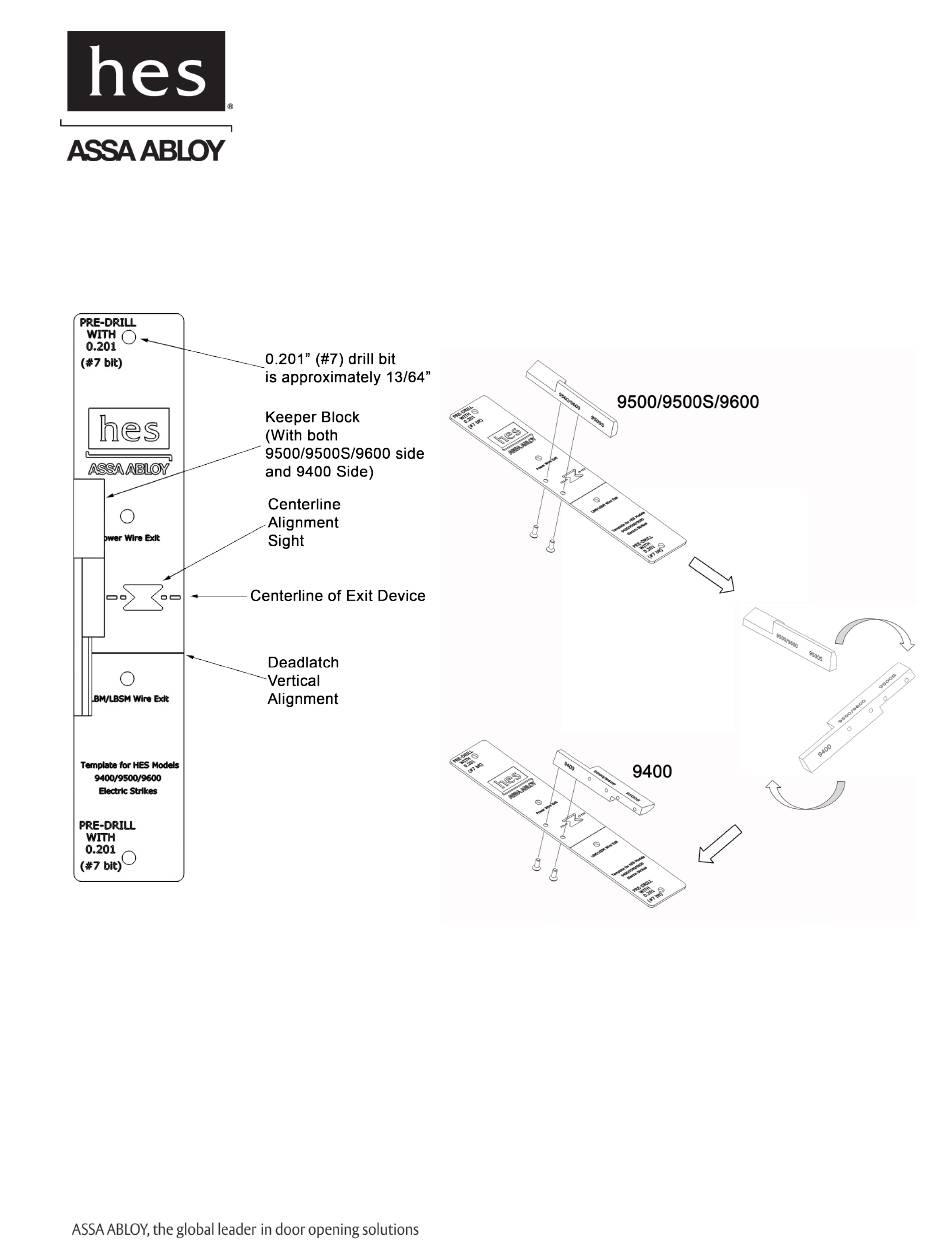

Figure 1
Product Components
Installation Template Parts
1. 9400/9500/9600 Series Installation Template Plate
NOTE: Keeper Block is factory preset to the
9500/9500S/9600 side, but can be changed to
the 9400 side, if needed, by removing the two
6-32 x 3/8" screws.
2. Keeper Block (9400 side and 9500/9500S/9600 side)
3. 6-32 x 3/8" screws
(securing Keeper Block to Template Plate)
9400/9500/9600 Series
IF a conversion is required,
THEN UNSCREW and CHANGE Keeper Block.
HES, Inc.
10027 South 51st Street, Suite 102
Phoenix, AZ 85044
Phone: (800) 626-7590
www.hesinnovations.com
2
1
3
Other Tools Required
Screwdriver, Phillips #2
Drill Bit, #7 (0.201" or 13/64" [5.1 mm])
Tap, 1/4"-20 UNC
Figure 2
3026006.001, Rev. B
