Assa Abloy h.e.s. 9400 Installation Instructions

9400 | 9500 | 9600 | 9700 | 9800
Electric Strike
Installation Instructions & Frame Preparation

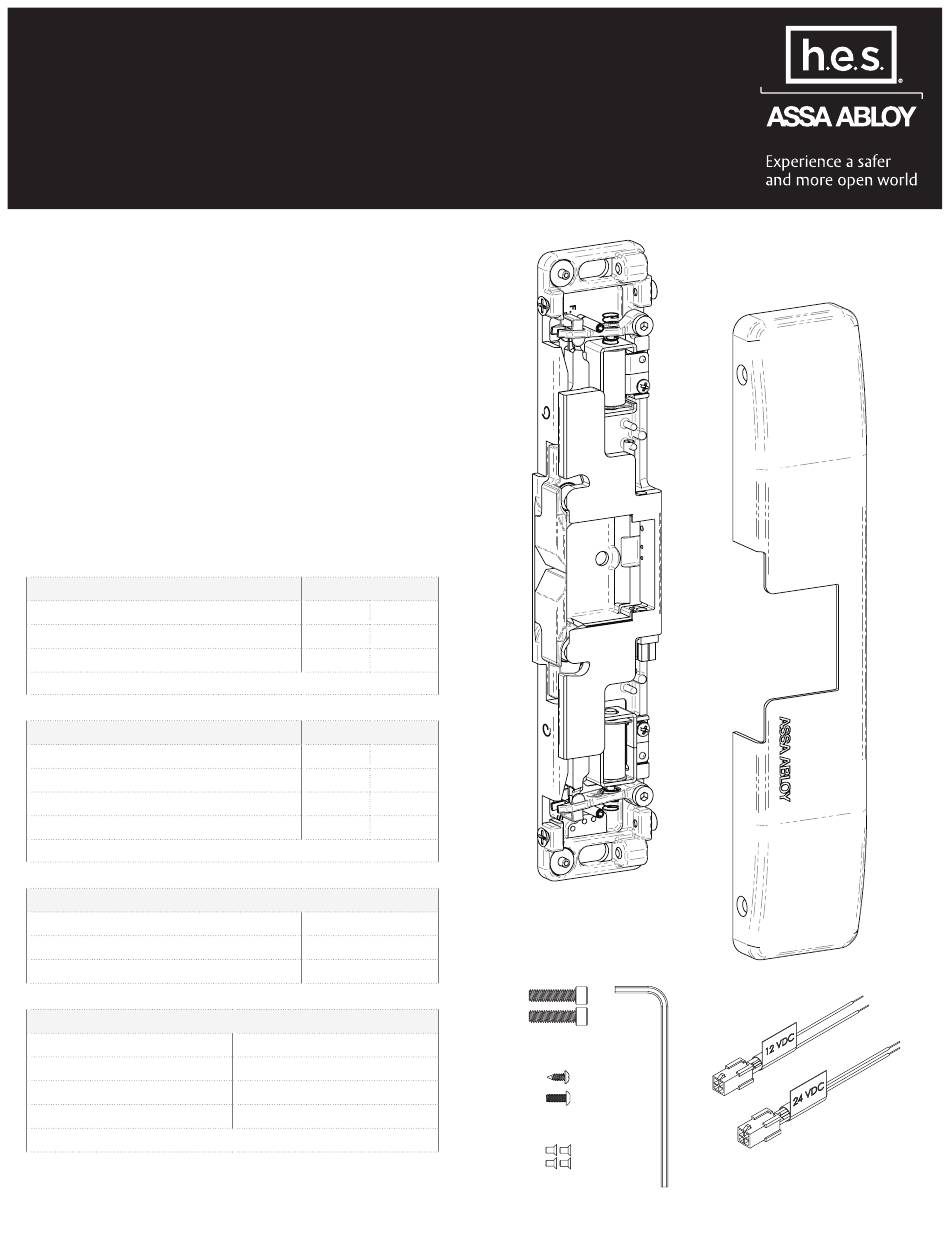

Product Components
A
9400 | 9500 | 9600 | 9700 | 9800
Electric Strike Body
B
9400 | 9500 | 9600 | 9700 | 9800
Cover
C
1/4"-20 x 1" Mounting Screws
D
#10-32 & 10-24 Lockdown
Screws (optional)
E
#6-32 x 1/4" Cover Screws
F
5/64" Hex Key
G
12 & 24 Volt Plug In Connectors
Electrical Specifications
Electrical Ratings for Solenoid
Voltage
Resistance in Ohms
mA Continuous Duty
Solenoids are rated at +/– 10% indicated value.
Minimum Wire Guage Requirements
Voltage
200 feet or less
200–300 feet
300–400 feet
Lengths based on round trip.
9400 | 9500 | 9600 | 9700 | 9800 Series UL1034 Rating
Static Strength
Dynamic Impact
Endurance
UL294 Performance Levels*
Destructive Attack
Line Security
Endurance
Standby Power
* Monitor options were not evaluated by UL294/UL1034/ULC60839-11-1
Continuous Duty
12 VDC 24 VDC
24 96
500 250
Continuous Duty
12 VDC 24 VDC
18 guage 22 guage
16 guage 22 guage
16 guage 20 guage
1,500 lbs
70 ft–lbs
250,000 cycles
Level I (No attack test)
Level I (No line security)
Level IV (100,000 cycles)
Level I (No secondary power source)
A
C
F
D
E
B
G
