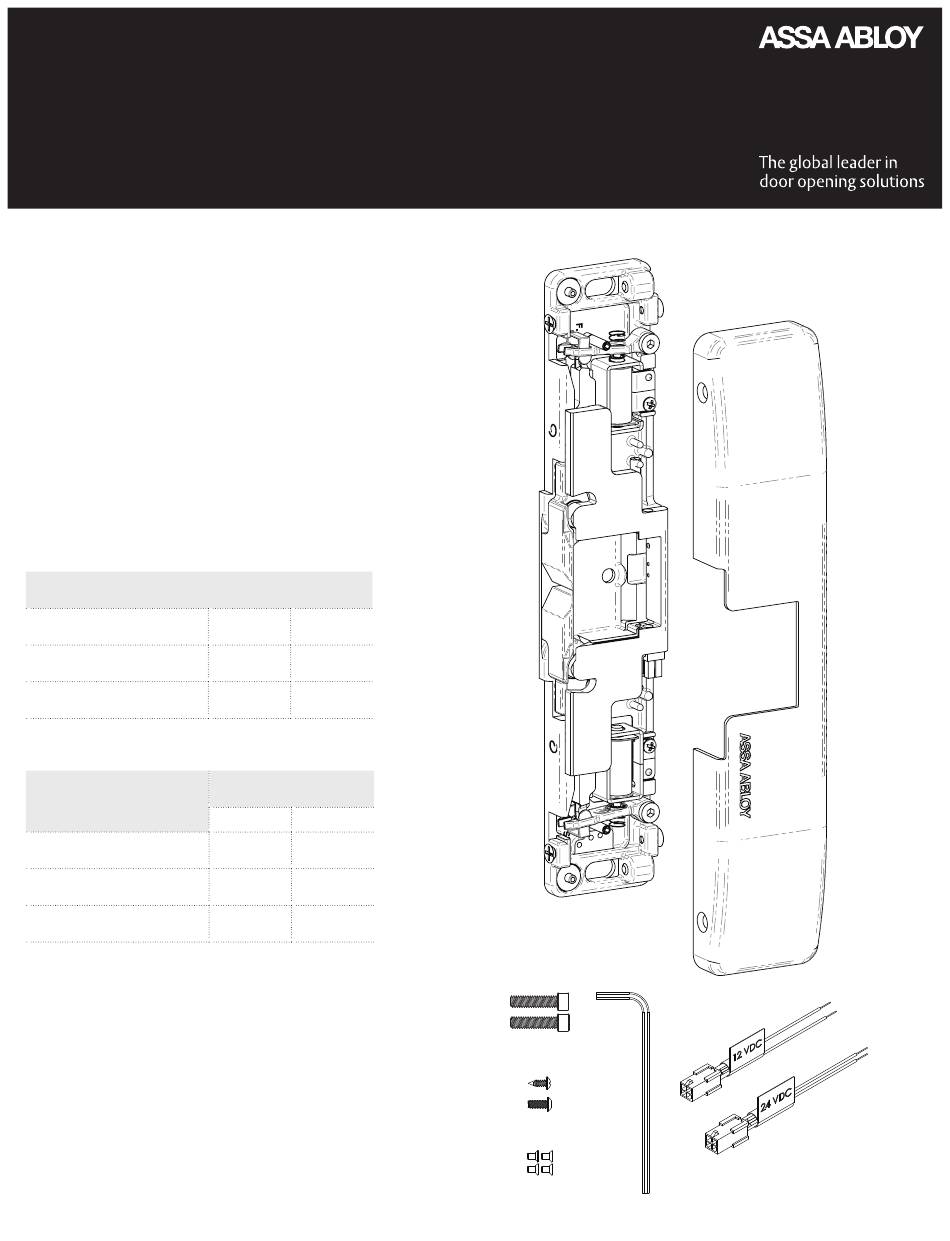

HES 9400/9500/9600 Electric Strike Installation Instructions and Frame Preparation Product Components Diagram 1: Product Components 9400/9500/9600 Strike Body 9400/9500/9600 Cover 1/4"-20 x 1" Mounting Screws #10-32 & 10-24 Lockdown Screws (optional) #6-32 x 1/4" Cover Screws 5/64" Hex Key 12-Volt and 24-Volt Pigtails...
Page 2
Installation CAUTION Before connecting any device at the installation site, verify input voltage using a multimeter. Many power supplies and low voltage transformers operate at higher levels than listed. Any input voltage exceeding 10% of the solenoid rating may cause severe damage to the unit and will void the warranty. Preparing the Strike NOTE: For 12 VDC, the Plug In Connector (pigtail) marked “12 VDC”...
Page 3
Finishing the Installation Diagram 3 Diagram 4 Latchbolt Monitor Latchbolt Strike Monitor Electrically CONNECT the 9400/9500/9600 White Common Brown Common to the Plug In Connector, and ATTACH Orange Normally Open Blue Normally Open the electric strike to the jamb using the Green Yellow Normally Closed...
