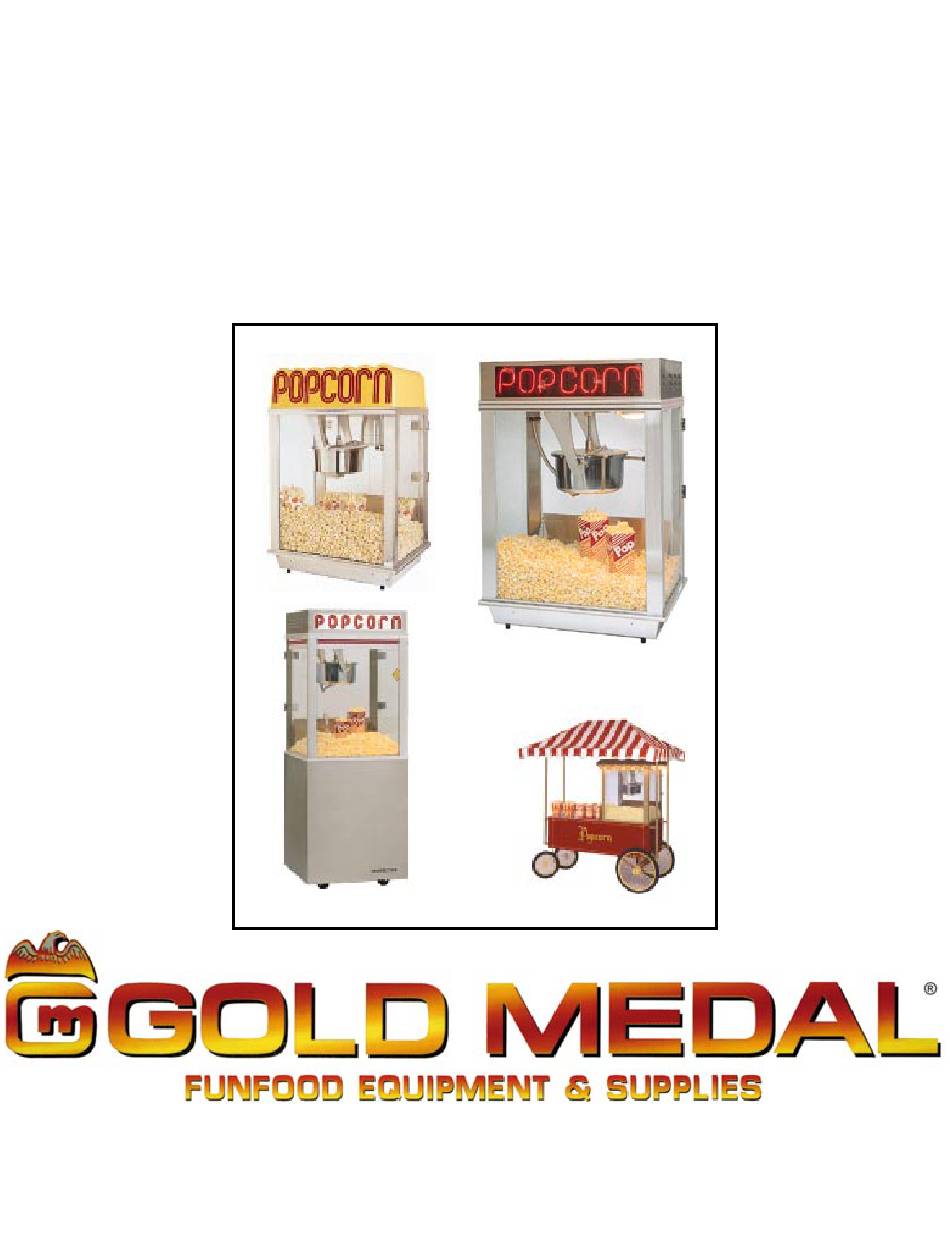

- Page 1 Citation, Whiz Bang & Part No. 47699EX Revised June 1996 Pop-A-Lot Instruction Manual Model #2001EX and #2003EX Model #2005EX and #2007EX Model #2102EX and #2119EX Model #2001EX Model #2003EX Model #2102EX Model #2119EX Cincinnati, OH 45241-4807 USA...
-
Page 2: Safety Precautions
Always unplug the equipment before cleaning or servicing. NOTE The information, specifications and illustrations contained in this manual represent the latest data available at time of publication. Right is reserved to make changes as required at the discretion of Gold Medal Products Company without notice. -
Page 3: Installation Instructions
Citation, Whiz Bang & Pop-a-Lot INSTALLATION INSTRUCTIONS This Instruction Manual and parts list will cover all poppers listed on the front cover as these are so similar in construction and operation. There is a common parts list beginning on page xx. When using this parts list, refer to the column which lists your machine and obtain all your part numbers from this column. -
Page 4: Circuit Breaker
Citation, Whiz Bang & Pop-a-Lot CIRCUIT BREAKER All the poppers covered by this manual have a 15 amp. circuit breaker mounted on the switch panel. This circuit breaker protects the entire machine excluding the kettle. If this circuit breaker kicks out continually, check for loose wires, short circuit, etc. EXTENSION CORDS Extension cords SHOULD NOT BE USED. -
Page 5: Controls And Their Functions
Citation, Whiz Bang & Pop-a-Lot OPERATING INSTRUCTIONS CONTROLS AND THEIR FUNCTIONS LIGHT SWITCH Flipping the lever of this switch to the "ON" position lights the bulbs in the popper dome and the heat lamp in the case. (Heat lamp only on Antique Citation). KETTLE MOTOR AND EXHAUST SWITCH Flipping the lever of this switch to the "ON"... -
Page 6: Dimmer Switch
Citation, Whiz Bang & Pop-a-Lot TIMER SWITCH This switch on the bucket seasoning pump control box determines the length of time the heat element of the bucket pump is at "HIGH HEAT". This "HIGH HEAT" is produced by 500 watts of electrical power. Its purpose is to melt the oil quickly. Whenever the timer switch is "ON", the pilot light above it will be "ON". - Page 7 4-5 oz. (118,3-147,9ml) 1 Tablespoon (14,8ml) Your Gold Medal popper comes complete with corn and oil measure cups, sized as close to rated capacity of your machine as are commercially available. We recommend that you use a flavored and colored coconut oil, as popcorn popped in coconut oil stays fresher longer.
- Page 8 4-5 oz. (118,3-147,9ml) 1 Tablespoon (14,8ml) Your Gold Medal popper comes complete with corn and oil measure cups, sized as close to rated capacity of your machine as are commercially available. We recommend that you use a flavored and colored coconut oil, as popcorn popped in coconut oil stays fresher longer.
-
Page 9: Care And Cleaning
Citation, Whiz Bang & Pop-a-Lot CARE AND CLEANING Disconnect main electrical power supply cord before cleaning to eliminate the possibility of electrical shock. GLASS PANEL AND CASE A clean looking, well kept machine is one of the best ways of advertising your popcorn. Take a clean cloth and first wipe excess oil from the glass. - Page 10 We recommend cleaning the bucket seasoning pump by cycling a cleaning solution through it. Use a clean, empty seasoning bucket and fill it with hot water and Old Soak cleaner (available from Gold Medal). Use one ounce of Old Soak per gallon of hot water.
- Page 11 If you're using your new Gold Medal popper in a snack bar with other snack foods of FunFoods, then you will want to have a copy of the current edition of "How to Make Money with Snacks".
-
Page 12: Maintenance Instructions
Citation, Whiz Bang & Pop-a-Lot MAINTENANCE INSTRUCTIONS THE FOLLOWING SECTIONS OF THIS MANUAL ARE IN- TENDED ONLY FOR QUALIFIED SERVICE PERSONNEL WHO ARE FAMILIAR WITH ELECTRICAL EQUIPMENT. THESE ARE NOT INTENDED FOR THE OPERATOR. Adequate eye protection must be used when servicing this equipment to prevent the possibility of injury. -
Page 13: Troubleshooting
Replace with genuine parts if any burning or arcing is observed. LUBRICATION The kettle drive motor on your Gold Medal popcorn machine has sealed bearings that require no lubrication. The exhaust blower motor should be lubricated every six months with a few drops of S.A.E. -
Page 14: Kettle Does Not Heat
If no defect is apparent, check the current to the heating elements. If defective, new elements are available from your local Gold Medal Dealer or directly from the factory. MOTOR WILL NOT TURN AGITATOR The kettle is not set back into its correct position. - Page 15 Citation, Whiz Bang & Pop-a-Lot MISALIGNMENT BETWEEN SLOT IN GEARBOX ON TOP OF POPPER AND NEEDLE BEARING ON END OF AGITATOR SHAFT After the kettle is dumped and returned to the upright position, the small needle bearing on the end of the agitator shaft should slide freely into the slot in the gearbox to ensure proper meshing of the drive gears.
-
Page 16: Ordering Spare Parts
3. Please include your model name and machine serial number (located on the machine nameplate) with your order. 4. Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 or, place orders at:... -
Page 17: Front View
Citation, Whiz Bang & Pop-a-Lot FRONT VIEW 3-10 XPORT ODELS... - Page 18 Citation, Whiz Bang & Pop-a-Lot PARTS LIST – FRONT VIEW Model Model Model Model Model Model #2001 #2003 #2005 #2007 #2102 #2119 Item Part No. Part No. Part No. Part No. Part No. Part No. Description 47263 47263 47263 47263 47263 47263 Rear Hanger Arm...
-
Page 19: Rear View
Citation, Whiz Bang & Pop-a-Lot REAR VIEW XPORT ODELS... - Page 20 Citation, Whiz Bang & Pop-a-Lot PARTS LIST – REAR VIEW Model Model Model Model Model Model #2001 #2003 #2005 #2007 #2102 #2119 Item Part No. Part No. Part No. Part No. Part No. Part No. Description 47279 47279 47279 47279 47279 Rubber Washer 47395...
-
Page 21: Top View
Citation, Whiz Bang & Pop-a-Lot TOP VIEW XPORT ODELS... - Page 22 Citation, Whiz Bang & Pop-a-Lot PARTS LIST – TOP VIEW Model Model Model Model Model Model #2001 #2003 #2005 #2007 #2102 #2119 Item Part No. Part No. Part No. Part No. Part No. Part No. Description 47343 47343 47343 47792 47343 47343 Exhaust Blower, Japan...
- Page 23 Citation, Whiz Bang & Pop-a-Lot KETTLE – TOP VIEW Model Model Model Model Model Model #2001 #2003 #2005 #2007 #2102 #2119 Item Part No. Part No. Part No. Part No. Part No. Part No. Description 47059 47059 47059 47059 47059 47059 Spur Gear 47331...
- Page 24 Citation, Whiz Bang & Pop-a-Lot KETTLE – BOTTOM VIEW Model Model Model Model Model Model #2001 #2003 #2005 #2007 #2102 #2119 Item Part No. Part No. Part No. Part No. Part No. Part No. Description 47393 47393 47393 47393 47393 47393 Junction Box Kettle 47394...
- Page 25 Citation, Whiz Bang & Pop-a-Lot BLOWER – WARMER ASSEMBLY Used on Citation, Deluxe Citation and Deluxe Whiz Bang Only Item No. Part No. Description 47355 Heat Element, Warmer 47356 Motor, Warmer 47385 Thermostat, Warmer 47545 Warmer Chassis 47542 Cover, Warmer 41113 Blower Wheel 47456...
- Page 26 Citation, Whiz Bang & Pop-a-Lot ANTIQUE CITATION – REAR VIEW Model #2219EX Item No. Part No. Description 47439 Top Right Ornament Assembly 47406 Upper Top Frame 47408 Lower Top Frame 47429 U-Clip (5 Required) 47880EX Kettle Complete w/o Agitator & Lid 47879EX Kettle Complete w/o Agitator &...
- Page 27 37516 37516 Hinge Pin 41011 41011 Door Catch 41013 41013 41013 Door Knob 41192S 41192S 41192S Gold Medal Nameplate 41349 41349 Male Hinge Short Right 41350 41350 41350 Male Hinge Short Left 41354 41354 41354 Female Hinge Right 41355 41355...
- Page 28 Citation, Whiz Bang & Pop-a-Lot ACCESSORIES AND ASSEMBLIES Complete Hanger Assemblies w/o Kettle (Ready to Operate) Part No. Model Number 47889 #2003C, #2003JX and #2005JX 47889EX #2001EX, #2003EX, #2102EX, #2005EX and #2005JX 47890 #2007C 47890EX #2007EX 47894 #2007JX 47888EX #2119EX Kettle Complete with Agitator &...
- Page 29 Citation, Whiz Bang & Pop-a-Lot CORN BIN SLIDE KIT An optional corn bin slide kit (Model #2520) may be purchased to accompany the following base models (#2111, #2031 and #2032). Our Model #2120 Antique Base comes already equipped with a version of this corn bin slide. A parts listing of this kit (#2520) follows: Part No.
- Page 30 Citation, Whiz Bang & Pop-a-Lot XPORT ODELS...
- Page 31 Citation, Whiz Bang & Pop-a-Lot KETTLE LEAD ASSEMBLY XPORT ODELS...
- Page 32 Citation, Whiz Bang & Pop-a-Lot ELECTRICAL SCHEMATIC – ANTIQUE CITATION XPORT ODELS...
- Page 33 Citation, Whiz Bang & Pop-a-Lot ELECTRICAL SCHEMATIC – CITATION & DELUXE WHIZBANG XPORT ODELS...
- Page 34 Citation, Whiz Bang & Pop-a-Lot ELECTRICAL SCHEMATIC – WHIZBANG & POP-A-LOT XPORT ODELS...
- Page 35 Citation, Whiz Bang & Pop-a-Lot ELECTRICAL SCHEMATIC – DELUXE CITATION XPORT ODELS...
-
Page 36: Warranty
WARRANTY WE WARRANT to the original purchaser the Gold Medal equipment sold by us to be free from defects in material or workmanship under normal use and service. Our obligation under this warranty shall be limited to the repair or replacement of any...
