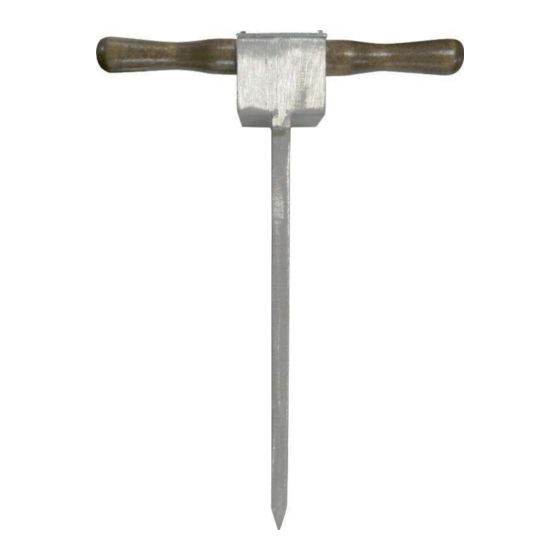

- Page 1 Instruction Manual Excalibur Hot Wand Model No. 2018, 2018EX 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA Part No. 79434...
-
Page 2: Safety Precautions
Excalibur Hot Wand Model No. 2018, 2018EX SAFETY PRECAUTIONS gmpopcorn.com Page 2... -
Page 3: Installation Instructions
Failure to wire properly will void the warranty and may result in damage to the machine. It is Gold Medal Products Company’s recommendation that this machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to safety concerns, and may cause sacrificed and/or reduced performance. - Page 4 Excalibur Hot Wand Model No. 2018, 2018EX OPERATING INSTRUCTIONS 1. The Excalibur Hot Wand has been designed to melt coconut popping oil in a 50lb pail. To use, carefully remove lid from metal oil pail. 2. Plug hot wand into an appropriate outlet, as described above under electrical requirements.
-
Page 5: Care And Cleaning
Excalibur Hot Wand Model No. 2018, 2018EX CARE AND CLEANING 1. Unplug the machine and allow it to cool before cleaning 2. Wipe the stainless steel down with a warm, soapy cloth. 3. Make sure to clean the wooden handles in order to sanitize them before each use. -
Page 6: Maintenance Instructions
Excalibur Hot Wand Model No. 2018, 2018EX MAINTENANCE INSTRUCTIONS DANGER Improper installation, adjustment, alteration, service, or maintenance can cause property damage, injury or death. Read the installation, Operating, and Maintenance Instructions thoroughly before installing or servicing this equipment. DANGER Do Not immerse the equipment in water. Unplug your machine before servicing. -
Page 7: Ordering Spare Parts
Excalibur Hot Wand Model No. 2018, 2018EX ORDERING SPARE PARTS 1. Identify the needed part by checking it against the photos, illustrations, and/or parts list. 2. When ordering, please include part number, part name, and quantity needed. 3. Please include your model number, serial number, and date of manufacture (located on the machine nameplate) with your order. - Page 8 Excalibur Hot Wand Model No. 2018, 2018EX Wand Breakdown 5, 6 Part Number Item Part Description Qty. 2018 2018EX HOT WAND 79056 79088 WOOD HANDLE 15010 15010 LEAD-IN CORD 87085 42369 STRAIN RELIEF T&B #3302 89045 89045 JUNCTION BOX COVER...
-
Page 9: Wiring Diagrams
Excalibur Hot Wand Model No. 2018, 2018EX WIRING DIAGRAMS Model No. 2018 gmpopcorn.com Page 9... - Page 10 Excalibur Hot Wand Model No. 2018, 2018EX Model No. 2018EX gmpopcorn.com Page 10...
- Page 11 Model No. 2018, 2018EX WARRANTY WE WARRANT to the original purchaser the Gold Medal equipment sold by us to be free from defects in material or workmanship under normal use and service. Our obligation under this warranty shall be limited to the repair or replacement of any...
