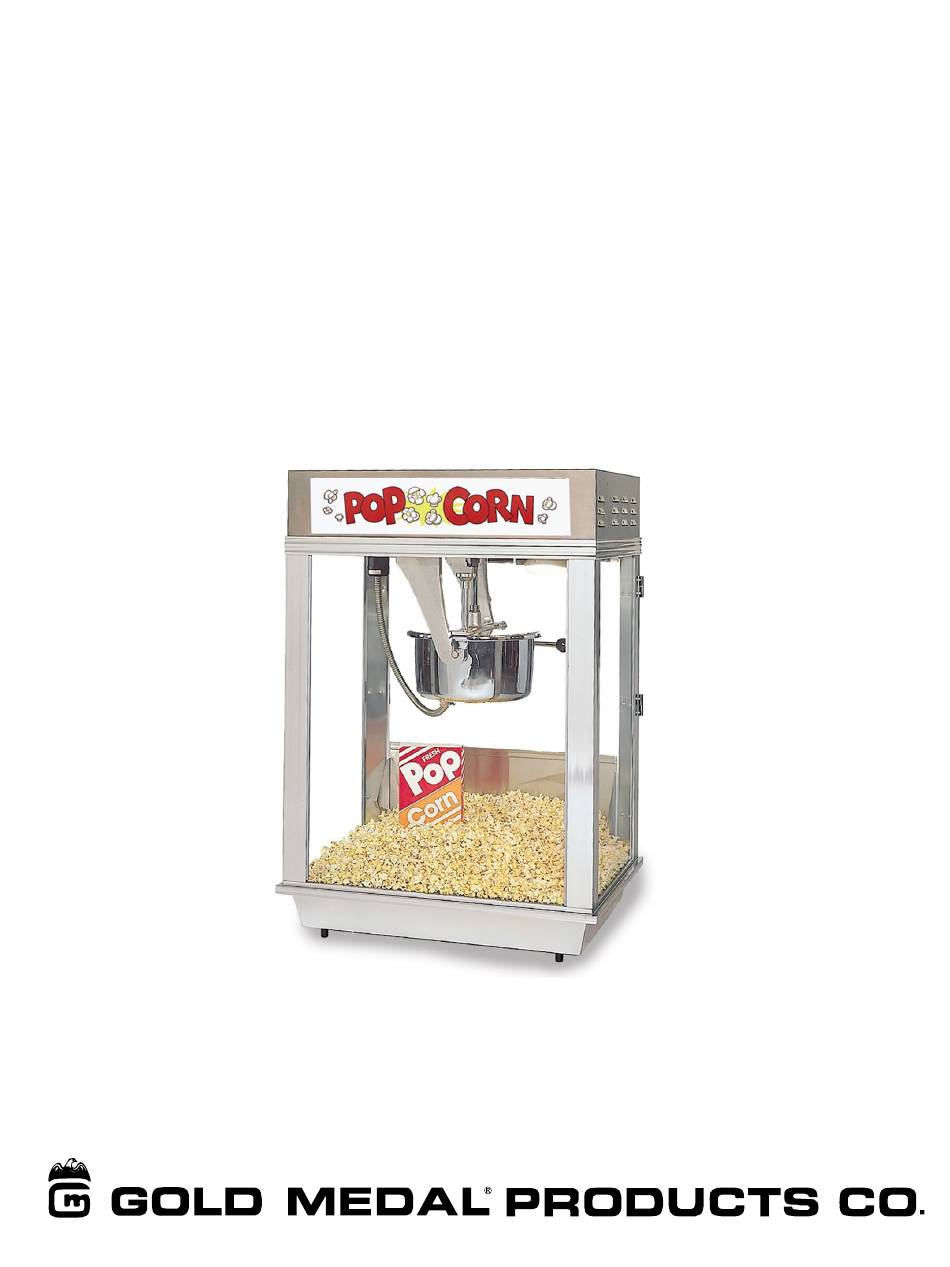

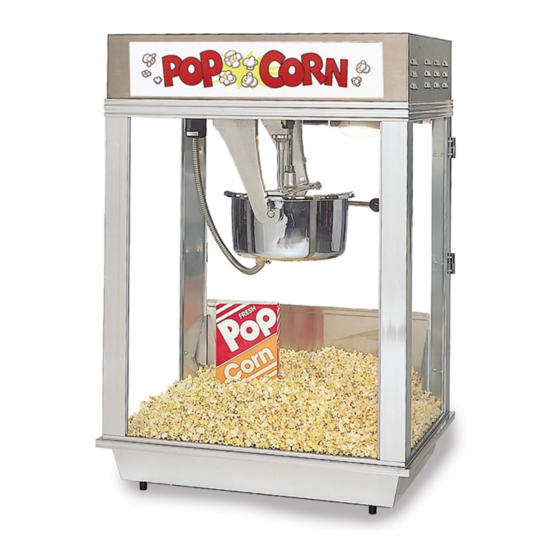

- Page 1 Part No.47664 DELUXE CITATION Instruction Manual Domestic 2102 Model Series Export 2102EX and 2102XE Model Series Model 2102XEST shown 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA...
-
Page 2: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215... - Page 3 Note: Improvements are always being made to Gold Medal’s equipment. This information may not be the latest available for your purposes. It is critical that you call Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions.
-
Page 4: Inspection Of Shipment
Read and understand the operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862. -
Page 5: Electrical Requirements
We recommend this equipment be on a dedicated and protected circuit. Failure to wire properly will void the warranty and may result in damage to the machine. It is Gold Medal Products Co.’s recommendation that this machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to safety concerns, and may cause sacrificed and/or reduced performance. -
Page 6: Controls And Their Functions
DELUXE CITATION OPERATING INSTRUCTIONS Controls and Their Functions LIGHTS/WARMER SWITCH Two position (ON/OFF), lighted rocker switch(s) which operates the interior light, dome light, and heat element for the corn deck freshener. KETTLE MOTOR SWITCH Two position (ON/OFF), lighted rocker switch which operates the kettle agitator motor, and the exhaust fan. - Page 7 DELUXE CITATION Oil System Master Light Kettle Motor Switch Switch Switch p/n 42798 p/n 42798 p/n 42798 Oil Dispense Load/Dump Indicator Warmer Kettle Heat Momentary Switch p/n 55039 Switch Switch p/n 41031 2102E Model Series p/n 42798 p/n 42798 ONLY Label used on units with the PowerOff Control feature.
-
Page 8: Amount Of Popcorn And Oil
DELUXE CITATION POPPING CORN INSTRUCTIONS Amount of Popcorn and Oil Your new popper is equipped with a corn, salt, and oil measure. We recommend flavored and colored coconut oil. Popcorn popped in coconut oil stays fresh longer and does not leave black deposits in your kettle like other oils. - Page 9 DELUXE CITATION Popping Popcorn - 2102 and 2102EX (Non-Electronic Units Only) This section describes popping instructions for 2102 and 2102EX. See previous section for electronic kettle models (2102E Model Series). 1. Turn all switches ON. Note: When popping with coconut oil, be sure the oil is liquid. As a check, dispense oil into a measuring cup first (should be 5 oz.), then use that oil for the first popping cycle.
-
Page 10: Care And Cleaning
Cleaner (Item No. 2088). DO NOT use oven cleaners or abrasive materials as they will damage the kettle. 3. Mix 2 tablespoons (29.6 ml) of Gold Medal’s Heat’n Kleen (Item No. 2095) in 1 gallon (3.8 L) of water. 4. Only pour enough of the Heat’n Kleen pre-mixed solution into the kettle to fill it 1/2 inch (12.7 mm) deep (it is not necessary to use the entire gallon at once). - Page 11 (cloth may be SLIGHTLY dampened with soap and water, then wipe again with clean water to remove any remaining cleaner). 6. Clean glass panels with glass cleaner. Gold Medal Watchdog Glass Cleaner (Item No. 2588) is recommended.
- Page 12 DELUXE CITATION Agitator Set Collar Adjustment The following instructions describe how to properly adjust set collars on an agitator assembly with a fixed stir rod. Steps to Adjust Set Collars on Agitator with a Fixed Stir Rod Agitator assembly is adjusted while fastened to the kettle (image shown for general reference only). 1.
-
Page 13: Troubleshooting
DELUXE CITATION Troubleshooting Long Popping Cycles If your pop cycle is longer than 4 minutes, it can be the result of several things: 1. LOW VOLTAGE - If the machine is operated on low voltage, this could cause the kettle not to reach the proper operating temperature. -
Page 14: Maintenance Instructions
DELUXE CITATION THE FOLLOWING SECTIONS ARE FOR QUALIFIED SERVICE PERSONNEL ONLY MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. Make sure all machine switches are in the OFF position before plugging the equipment into the receptacle. -
Page 15: Electronic Temperature Control
DELUXE CITATION Electronic Temperature Control (for Export 2102XE Series) Operation The temperature control is factory set to stop the power to the kettle when the thermocouple reaches set point. This is also the ideal point to dump the popped corn out of the kettle. On the first start-up, this is the ideal time to load the corn and oil. -
Page 16: Ordering Spare Parts
Web Page: gmpopcorn.com Model Variations (Voltage Specific Parts) CAUTION: If a hardwired supply cord is damaged, it must be replaced by Gold Medal Products Co., its service agent, or similarly qualified persons in order to avoid a hazard. If a removable supply cord is damaged, it must be replaced by a special cord or assembly available from Gold Medal Products Co. -
Page 17: Replacing Broken Glass
DELUXE CITATION Replacing Broken Glass Broken glass panels can be easily replaced. Gold Medal Products Co. does not ship glass. It can be obtained from a local glass shop and always purchase tempered glass. 1. Remove all loose pieces of glass. - Page 18 DELUXE CITATION 16 oz. Kettle Assembly (55166, 55166EX, 55166XE) Agitator Assembly View 55166 Overall Kettle 55166E Ag. Assy. 55199E Exp. Views Complete Agitator Assembly (Includes Lids) 10* *See Parts See Kettle Bottom List note. Assy. section for parts breakdown 13, 14 (includes Handle Assembly and Kettle Lead). Complete Kettle Assembly Complete Agitator Assy. (Includes Lids) Part Number Item Part Description 55166, 55166EX, 55166XE THUMB SCREW 1/4-20 X 3/4 38379 10-32 X 1/2 PH FL HD MS 40717...
- Page 19 DELUXE CITATION 16 oz. Kettle Assembly (55166) – Kettle Bottom Assembly 55199 Kettle Element 55199EX Kettle Bottom Assy. 55199E exp. views Top Lock Nut ‐ Fastens each thermostat and ground. Install Lock Nut with triangle in UP position (as shown). ONE TIME USE ONLY, REPLACE Use high temp red Loctite on the three flange nuts. Element View Kettle Conduit 16 17 Label (not shown) 25, 26 18* *Dump Handle Assembly (includes Knob) Kettle Bottom Assembly View Domestic and Export Model Series 2102 and 2102XE...
- Page 20 DELUXE CITATION 16 oz. Kettle Assembly (55166) – Kettle Bottom Assy. – Parts List Part Number Item Part Description 55166 16OZ KETTLE BOTTOM ASSY (Complete Assy.) 55200 TRANSFER PLATE ASSY (beneath heat element) 67944 KETTLE GASKET 41598 KETTLE WELDMENT 67892 8-32 SERRATED FLANGE NUT 61151 ¼...
- Page 21 DELUXE CITATION 16 oz. Kettle Assembly (55166EX) – Kettle Bottom Assembly 55199EX Kettle Element 55199EX Kettle Bottom Assy. 55199E exp. views Top Lock Nut ‐ Fastens each thermostat and ground. Install Lock Nut with triangle in UP position (as shown). ONE TIME USE ONLY, REPLACE Use high temp red Loctite on the three flange nuts. Element View Kettle Conduit 14 15 Label (not shown) 23, 24 16* *Dump Handle Assembly (includes Knob) Kettle Bottom Assembly View Domestic and Export Model Series 2102 and 2102XE...
- Page 22 DELUXE CITATION 16 oz. Kettle Assembly (55166EX) – Kettle Bottom Assy. – Parts List Part Number Item Part Description 55166EX 16OZ KETTLE BOTTOM ASSY (Complete Assy.) 55200EX TRANSFER PLATE ASSY (beneath heat element) 67944 KETTLE GASKET 41598 KETTLE WELDMENT 67892 8-32 SERRATED FLANGE NUT 61151 ¼...
- Page 23 DELUXE CITATION 16 oz. Kettle Assembly (55166XE) – Kettle Bottom Assembly 55199E Kettle Element 55199E Kettle Bottom Assy. 55199E exp. views Element View 11 12 20, 21 13* *Dump Handle Assembly (includes Knob) Kettle Bottom Assembly View Domestic and Export Model Series 2102 and 2102XE...
- Page 24 DELUXE CITATION 16 oz. Kettle Assembly (55166XE) – Kettle Bottom Parts List Part Number Item Part Description 55166XE 16OZ KETTLE BOTTOM ASSY (Complete Assy.) 55201EX HEAT TRANSFER PLATE (beneath heat element) 67890 KETTLE GASKET 41598 KETTLE WELDMENT 67892 ¼ - 20 SERRATED LOCK NUT 46311 ELEMENT CLAMP (6 required) 67894...
-
Page 25: Cabinet Assembly
DELUXE CITATION CABINET ASSEMBLY 1A, 1B 4, 5 For Glass Panels, see Replacing Glass section. Replacement LH and RH Door Hardware Kits (see next page for individual component breakdown and parts list). Power Cord (Not Shown) * CAUTION: If supply cord is damaged, it must be replaced by Gold Medal Products Co., its service agent, or similarly qualified persons in order to avoid a hazard. 9, 10 Data Plate Domestic and Export Model Series 2102 and 2102XE... - Page 26 DELUXE CITATION Door Hardware Kits – Individual Component Breakdown Complete Right Hand Door Complete Left Hand Door Hardware Kit (P/N 47055) Hardware Kit (P/N 47054) (contains all parts shown above) (contains all parts shown above) Part Number Item Part Description 47054 47055 DOOR KNOB 41013 41013 8-32 X ½ SCREWS PH PAN W/SEMS 47124 47124 ACORN NUT #8-32 47702 47702 TEE BOLT 75267 75267 MALE HINGE SHORT LEFT...
- Page 27 DELUXE CITATION INSIDE CABINET COMPONENTS See LED parts in Dome Interior Components section. 9, 10 Domestic and Export Model Series 2102 and 2102XE...
- Page 28 DELUXE CITATION WARMER ASSEMBLY Model Series 2102E Shown for image reference only. DOME INTERIOR COMPONENTS LED Bulb Assembly Model Series 2102E Shown for image reference only. Domestic and Export Model Series 2102 and 2102XE...
- Page 29 DELUXE CITATION Parts List Model 2102 and 2102EX Part No. Item Part Description 2102 2102EX DOME, MOLDED 20 X 28 77001 77001 LED DOME LIGHT ASSY (not shown) 77040 77040 LED STRIP COOL WHITE (not shown) 55379 55379 LED MOUNTING WHITE DOME (not shown) 55475 55475 POWER SUPPLY CORD (not shown)
- Page 30 DELUXE CITATION Parts List Model Export 2102XE Series Part No. Item Part Description 2102XE 2102XEST DOME, MOLDED 20 X 28 (not shown) 77001 LED DOME LIGHT ASSY (not shown) 77040 LED STRIP COOL WHITE (not shown) 55379 LED MOUNTING WHITE DOME (not shown) 55475 MOLDED PLUG (not shown) 47726...
-
Page 31: Electrical Schematic
DELUXE CITATION ELECTRICAL SCHEMATIC MODEL 2102 Domestic and Export Model Series 2102 and 2102XE... - Page 32 DELUXE CITATION ELECTRICAL SCHEMATIC MODEL 2102EX Domestic and Export Model Series 2102 and 2102XE...
- Page 33 DELUXE CITATION ELECTRICAL SCHEMATIC MODELS: 2102XE, 2102XEST Domestic and Export Model Series 2102 and 2102XE...
- Page 34 DELUXE CITATION ELECTRICAL SCHEMATIC MODELS: 2102-23-010 Domestic and Export Model Series 2102 and 2102XE...
-
Page 35: Warranty
© 2021 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
