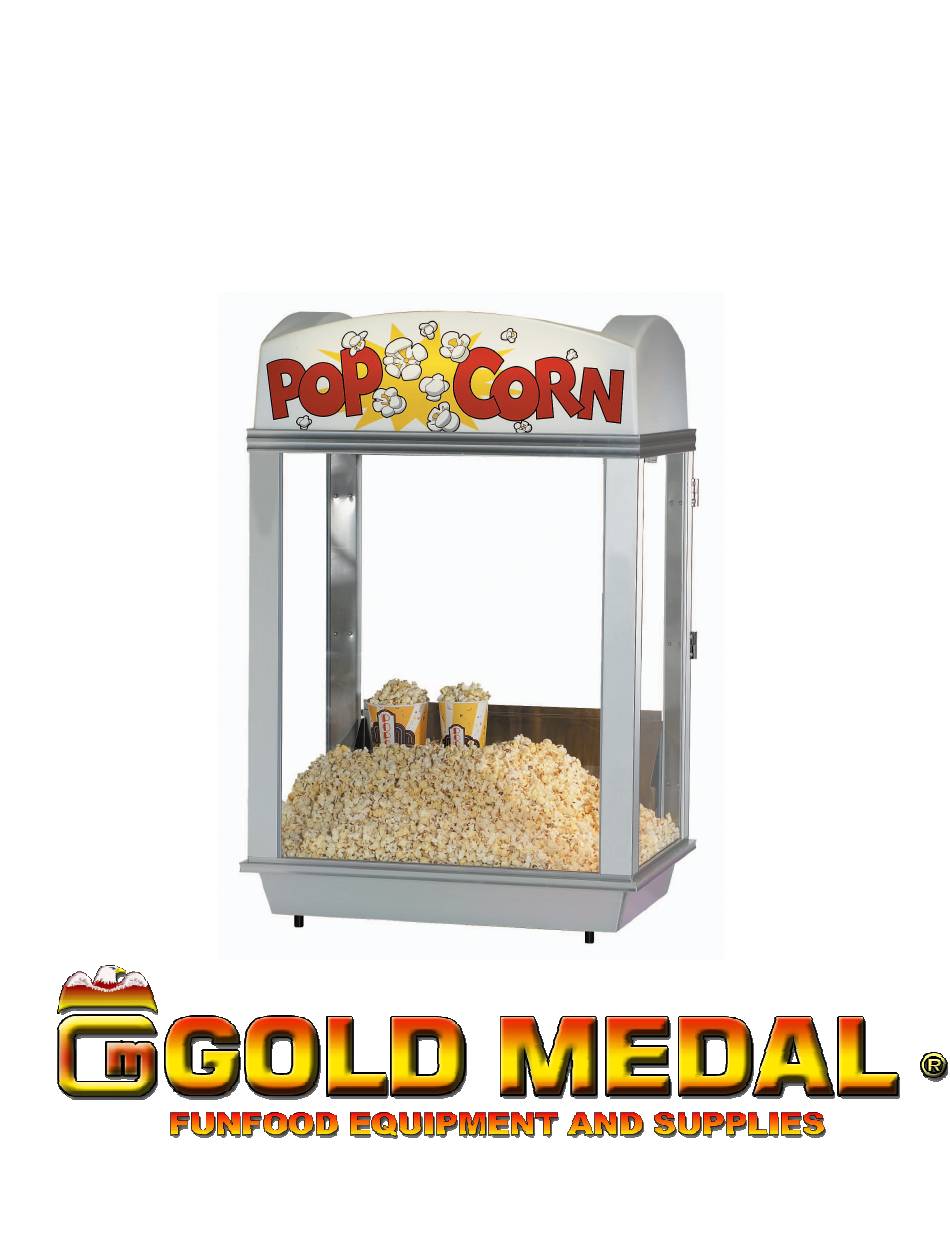

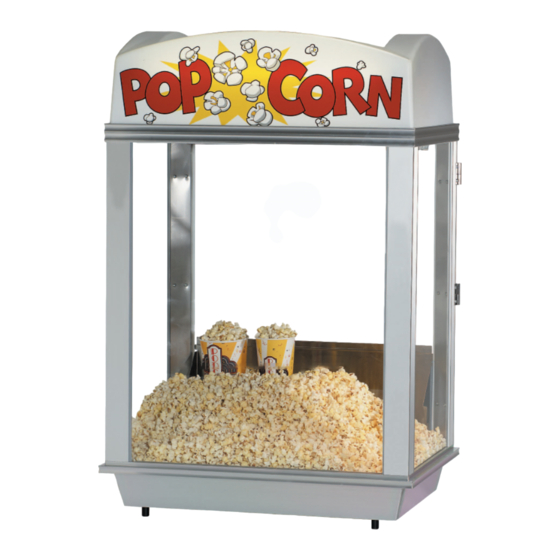

- Page 1 Part No 53021 Model 2016, 2025, 2025BN, 2025ST Staging Cabinets Instruction Manual Cincinnati, OH 45241-4807 USA...
-
Page 2: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215... - Page 3 Note: Improvements are always being made to Gold Medal’s equipment. This information may not be the latest available for your purposes. It is critical that you call Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions.
-
Page 4: Installation Instructions
We recommend this equipment be on a dedicated and protected circuit. Failure to wire properly will void the warranty and may result in damage to the machine. It is Gold Medal Products Co.’s recommendation that this machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to safety concerns, and may cause sacrificed and/or reduced performance. -
Page 5: Before You Plug In Machine
4. DO NOT use a grounded to un-grounded receptacle adapter (where applicable). 5. Install unit in a level position. CAUTION If the supply cord is damaged, it must be replaced by Gold Medal Products Co., its service agent or similarly qualified persons in order to avoid a hazard. 039_080614... -
Page 6: Care And Cleaning
Gold Medal Watchdog Stainless Cleaner (Item No. 2088). DO NOT use oven cleaners or abrasive materials as they will damage parts of machine. 4. Clean glass panels with glass cleaner. Gold Medal Watchdog Glass Cleaner (Item No. 2588) is recommended. -
Page 7: Maintenance Instructions
No user serviceable parts inside. Refer servicing to qualified service personnel. 011_051514 CAUTION THE FOLLOWING SECTIONS OF THIS MANUAL ARE INTENDED ONLY FOR QUALIFIED SERVICE PERSONNEL WHO ARE FAMILIAR WITH ELECTRICAL EQUIPMENT. THESE ARE NOT INTENDED FOR THE OPERATOR. 027_010914 2016, 2025... -
Page 8: Ordering Spare Parts
3. Please include your model name, serial number, and date of manufacture (located on the machine nameplate) with your order. 4. Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 Or, place orders by phone or online:... -
Page 9: Cabinet Breakdown
Staging Cabinet Cabinet Breakdown See Lighted Dome on next page. Dome (2016 Pictured) Glass: (2025) p/n 77001 Front (2025ST) p/n 41811 p/n 47133 (2025BN) p/n 45006 Side (2) (2016) p/n 77001 p/n 47134 Conical Light Shield (2) LED Sign (2025BN) - Page 10 1/4-20 X 1/2 HEX HD (fastens LED mount.) 14821 FENDER WASHER (fastens LED mount.) 82101 1/4-20 SERRATED NUT (fastens LED mount.) 46311 MOLDED PLUG 47726 24VDC 20W POWER SUPPLY 55394 6-32 X 3/8 PHIL PAN (fastens power supply) 39000 6-32 NUT (fastens power supply) 14221 2016, 2025...
-
Page 11: Cabinet Interior
Corn Pan w/Strip Old Maid Pan Female Cordset Heater p/n 61021 p/n 47336 p/n 47598 (2025 Uses Corn p/n 47736) Warmer Blower Assembly Male Cordset (2025 Models) p/n 61020 p/n 47563 Old Maid Pan Female Cordset p/n 61021 p/n 47336 2016, 2025... - Page 12 115V p/n 47356 Heat Element, 120V, 400W Warmer Blower p/n 47355 Assy. (Complete) p/n 47563 Blower Wheel Female Cordset Thermostat p/n 41113 p/n 61021 Warmer (Male Cordset, p/n 47385 located in the bottom of the machine, p/n 61020) 2016, 2025...
- Page 13 Staging Cabinet Electrical Schematic – 2016, 2025 2016, 2025...
-
Page 14: Warranty
(513) 769-7676 (513) 769-8500 © 2016 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
