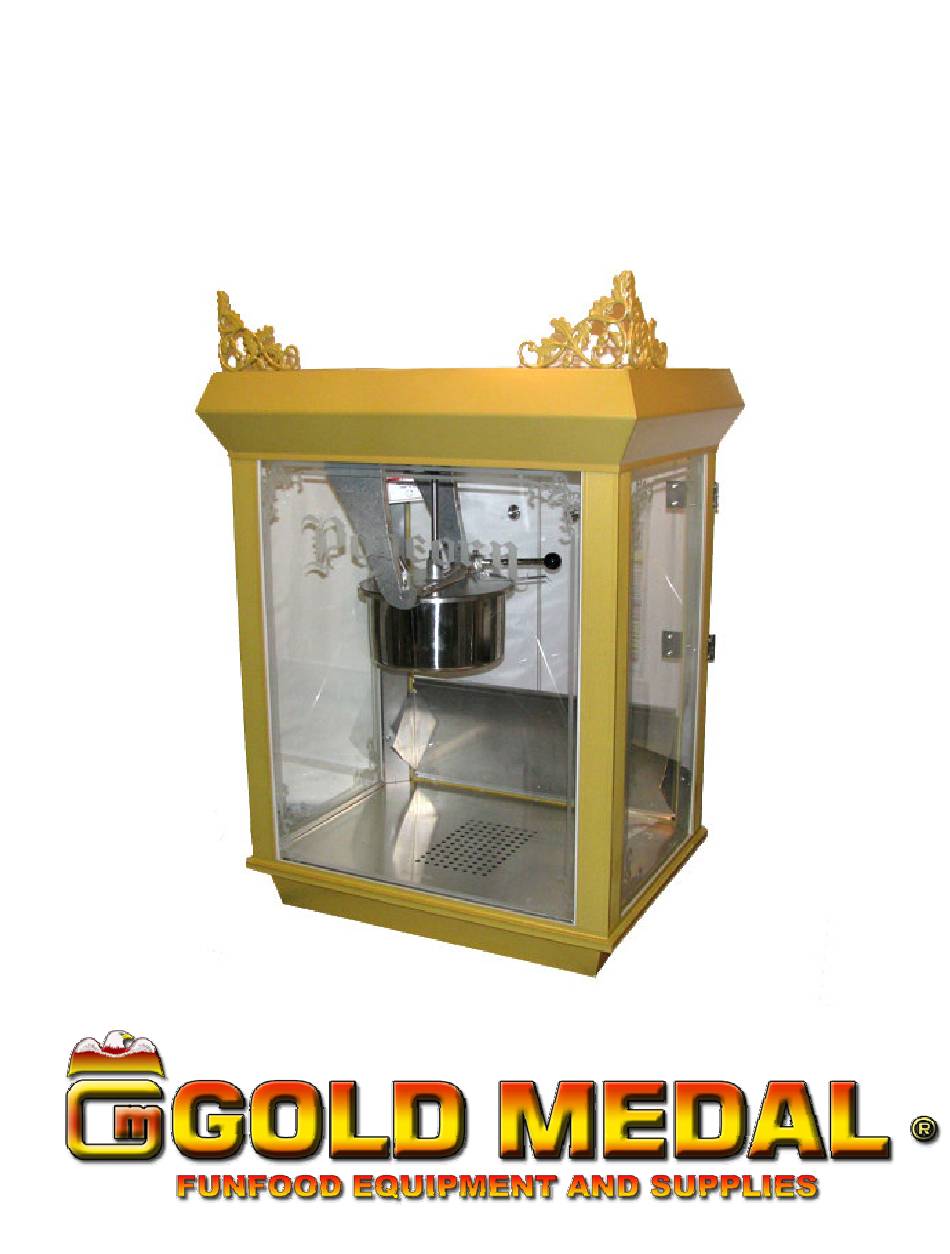

- Page 1 Part No. 75104 Issued: November 2008 Gay 90 Whiz Bang Models #2014, 2014EX Instruction Manual Cincinnati, OH 45241-4807 USA...
-
Page 2: Table Of Contents
Gay 90 Whiz Bang Unimaxx Safety Precautions ..............Installation Instructions .............. Operating Instructions ............Cleaning Instructions ..............Maintenance Instructions ........................... Troubleshooting ..............Ordering Spare Parts System Parts Location Section ........11-17 ........Cabinet Breakdown & Door Hardware 11-12 ............ -
Page 3: Safety Precautions
SAFETY PRECAUTIONS... -
Page 4: Installation Instructions
It is Gold Medal Products Company’s recommendation that this machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to safety reasons and the popper’s performance will be sacrificed/reduced. -
Page 5: Operating Instructions
Gay 90 Whiz Bang Unimaxx OPERATING INSTRUCTIONS Controls and their functions LIGHT/WARMER SWITCH Turns on all of the lights, interior, and dome on your popcorn machine, and operates the elements for the heated corn pan. KETTLE HEAT SWITCH Operates the heating elements in the popping kettle. - Page 6 Gay 90 Whiz Bang Unimaxx POPPING CORN AMOUNT OF POPCORN AND OIL Your new popper is equipped with a corn, salt, and oil measure. We recommend flavored and colored coconut oil. Popcorn popped in coconut oil stays fresh longer and does not leave black deposits in your kettle like other oils.
-
Page 7: Cleaning Instructions
1. Wipe the stainless steel parts with a clean cloth and cleaner designed for stainless steel. Do not use oven cleaners, as they will damage parts of the machine. 2. Ammonia cleaners will damage the plastic doors. Use only non-ammonia cleaners, such as Gold Medal’s – Watchdog Glass Cleaner – item number 2588. Models 2014, 2014EX... -
Page 8: Maintenance Instructions
Gay 90 Whiz Bang Unimaxx MAINTENANCE INSTRUCTIONS Models 2014, 2014EX... -
Page 9: Troubleshooting
Gay 90 Whiz Bang Unimaxx TROUBLESHOOTING Below are some common issues you may encounter, along with basic trouble shooting steps to resolve them. EXPERIENCING LONG POPPING CYCLES If your pop cycle is longer than 4 minutes, it can be the result of several things: LOW VOLTAGE - If the machine is operated on low voltage, this could cause the kettle not to reach the proper operating temperature. -
Page 10: Ordering Spare Parts
Gay 90 Whiz Bang Unimaxx ORDERING SPARE PARTS 1. Identify the needed part by checking it against the photos, illustrations, and/or the parts list. 2. When ordering, please include part number, part name, and quantity needed. 3. Please include the machine’s model name, serial number, and date of manufacture (located on the machine nameplate) with your order. -
Page 11: System Parts Location Section
Gay 90 Whiz Bang Unimaxx Cabinet Breakdown Magnetic Catch Bracket p/n 41340 Magnetic Catch Kettle Receptacle p/n 47561 15A Twist Lock p/n 49330 Kettle Plug 15A Twist Lock p/n 49329 Kettle Lead Assy. p/n 61053 12/14 oz Unimaxx Kettle Complete... -
Page 12: Cabinet Interior-Ceiling
Gay 90 Whiz Bang Unimaxx Complete Hardware Complete Hardware Kit for LH Door Kit for RH Door p/n 47054 p/n 47055 Door Hardware Kits Cabinet Interior – Ceiling Components Spur Gear (2) p/n 47060 10-32 x 3/16 Set Gear Block Assy. -
Page 13: Bottom Corn Pan Assembly
Gay 90 Whiz Bang Unimaxx Filter p/n 47043 Bottom Corn Pan Assembly – Part Number 47598 Complete Bottom Corn Pan Assembly Is Everything Shown Below, Including Female Cordset p/n 61020. Heat Element 115V, p/n 44026 (EX Uses 230V, 75W p/n 44075) -
Page 14: Kettle Shell Components
Gay 90 Whiz Bang Unimaxx Kettle Shell Components 8-32 x ½” (4) Countersunk Phillips Flathead Screws p/n 20066 Kettle Gasket p/n 61012 Kettle Integral Heater 12/14 p/n 58011 Kettle Shell p/n 61017 Block, Shell and Kettle (2) p/n 61013 (Secures Weld to... -
Page 15: Lid And Agitator Assembly
Gay 90 Whiz Bang Unimaxx Lid And Agitator Assy. Spur Gear Retaining Ring Set Screw for Spur Gear p/n 47060 p/n 49701 10-32 x 3/16 p/n 41742 Needle Bearing p/n 47106 Set Collar (2) (Same above and below lid) p/n 47326... -
Page 16: Unimaxx 12/14 Oz Kettle Specification
Gay 90 Whiz Bang Unimaxx UNIMAXX 12/14 OZ KETTLE P/N 58220 - 120V P/N 58220EX - 230V LID AND AGITATOR PARTS KETTLE PARTS PART PART DESCRIPTION DESCRIPTION NUMBER NUMBER 47707 DUMP HANDLE 58011 120V KETTLE W/ELEMENTS 47110 KNOB FOR DUMP HANDLE... -
Page 17: Motor Plate Assembly
Gay 90 Whiz Bang Unimaxx Top - Motor Plate Assy. Kettle Drive Motor, Lamp Holder Light Shield 75 Watt Flood Light 120V p/n 47038 p/n 41671 p/n 47047 p/n 49480 (EX Uses 230V p/n (EX uses p/n 49033) 47067) Blower Plug... -
Page 18: Electrical Schematic
Gay 90 Whiz Bang Unimaxx Electrical Schematic – 2014 Models 2014, 2014EX... - Page 19 Gay 90 Whiz Bang Unimaxx Electrical Schematic - 2014EX Models 2014, 2014EX...
-
Page 20: Warranty
Gay 90 Whiz Bang Unimaxx WARRANTY WE WARRANT to the original purchaser the Gold Medal equipment sold by us to be free from defects in material or workmanship under normal use and service. Our obligation under this warranty shall be limited to the repair or replacement of any...
