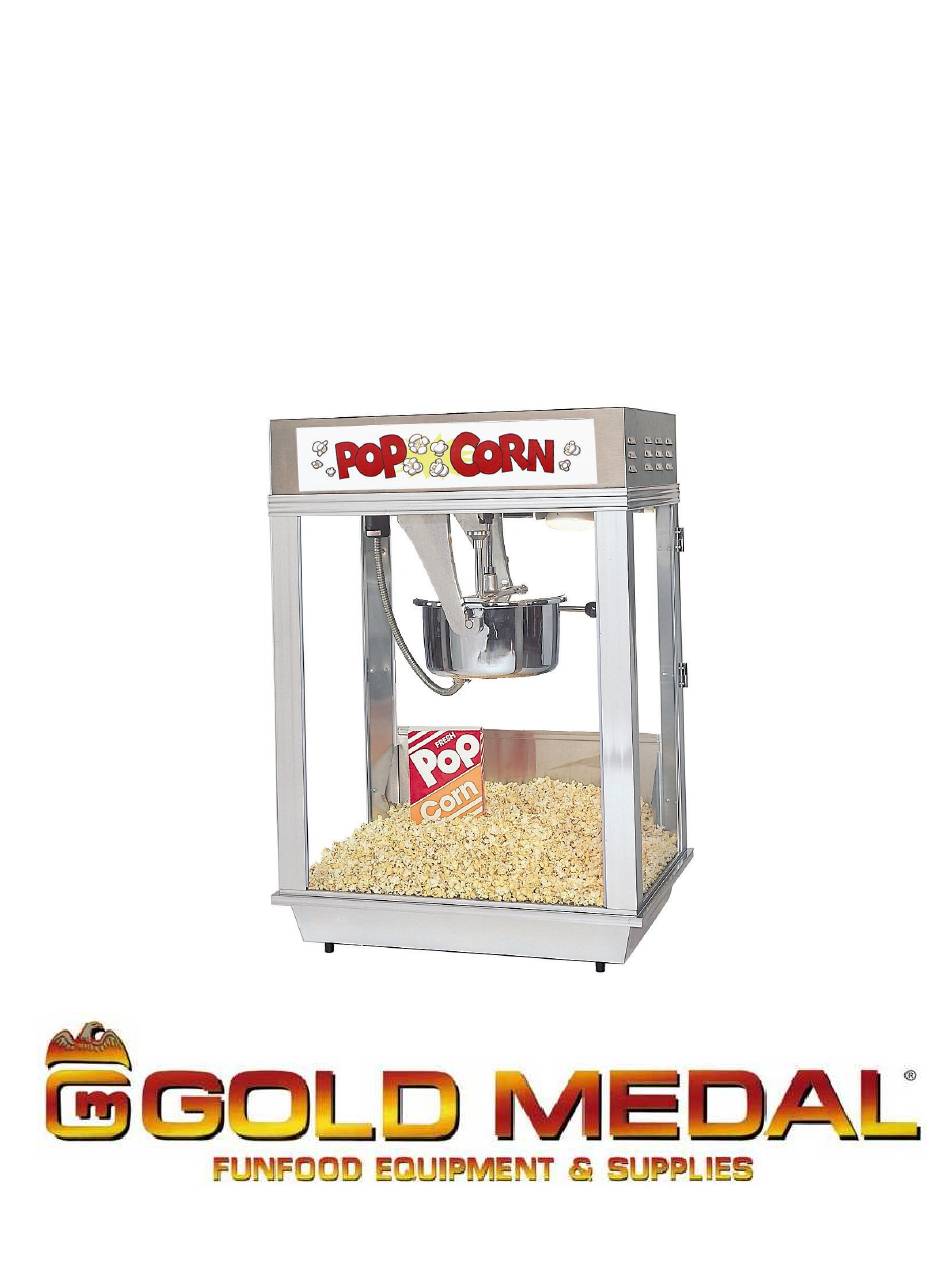

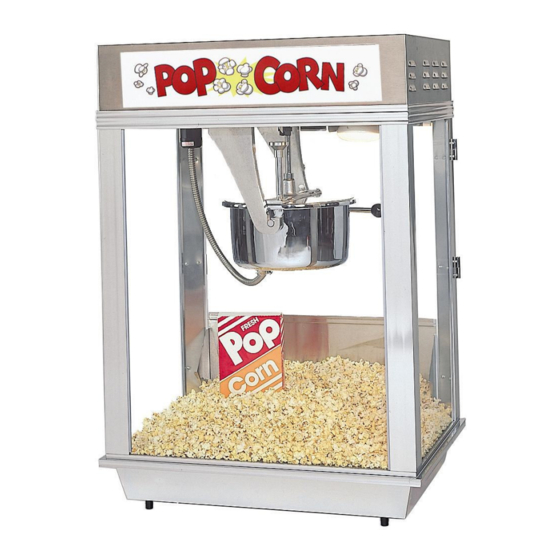

- Page 1 Part No.47664 DELUXE CITATION Instruction Manual Domestic Series 2102 and 2102E Export Series 2102EX and 2102XE Cincinnati, OH 45241-4807 USA...
-
Page 2: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215... - Page 3 Note: Improvements are always being made to Gold Medal’s equipment. This information may not be the latest available for your purposes. It is critical that you call Gold Medal’s Technical Service Department at 1-800-543-0862 for any...
-
Page 4: Installation Instructions
Failure to wire properly will void the warranty and may result in damage to the machine. It is Gold Medal Products Co.’s recommendation that this machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to safety concerns, and may cause sacrificed and/or reduced performance. -
Page 5: Before You Plug In Machine
4. DO NOT use a grounded to un-grounded receptacle adapter (where applicable). 5. Install the unit in a level position. CAUTION If the supply cord is damaged, it must be replaced by Gold Medal Products Co., its service agent or similarly qualified persons in order to avoid a hazard. 039_080614 Final Preparation The popcorn machine was adjusted, inspected, and tested before it left the factory. -
Page 6: Controls And Their Functions
DELUXE CITATION OPERATING INSTRUCTIONS Controls and Their Functions LIGHTS/WARMER SWITCH Two position (ON/OFF), lighted rocker switch(s) which operates the interior light, dome light, and heat element for the corn deck freshener. KETTLE MOTOR SWITCH Two position (ON/OFF), lighted rocker switch which operates the kettle agitator motor, and the exhaust fan. - Page 7 DELUXE CITATION Oil System Master Light Kettle Motor Switch Switch Switch 42798 42798 42798 Oil Dispense Load/Dump Indicator Warmer Kettle Heat Momentary Switch 55039 Switch Switch 41031 2102E Model Series 42798 42798 ONLY Domestic and Export Model Series 2102 and 2102E...
-
Page 8: Amount Of Popcorn And Oil
DELUXE CITATION POPPING CORN INSTRUCTIONS Amount of Popcorn and Oil Your new popper is equipped with a corn, salt, and oil measure. We recommend flavored and colored coconut oil. Popcorn popped in coconut oil stays fresh longer and does not leave black deposits in your kettle like other oils. - Page 9 DELUXE CITATION Popping Popcorn - 2102 and 2102EX Models Only This section describes popping instructions for 2102 and 2102EX. See previous section for electronic kettle models (2102E Model Series). 1. Turn all switches ON. Note: When popping with coconut oil, be sure the oil is liquid. As a check, dispense oil into a measuring cup first (should be 5 oz.), then use that oil for the first popping cycle.
-
Page 10: Care And Cleaning
2. Every night, mix Gold Medal’s Heat’n Kleen solution (Item No. 2095), 2 tablespoons per gallon of water. It is not necessary to use the entire gallon at once; only use enough to fill the kettle 1/2 inch deep. - Page 11 Gold Medal Watchdog Stainless Cleaner (Item No. 2088). DO NOT use oven cleaners or abrasive materials as they will damage parts of the machine. 5. Clean the glass panels with glass cleaner. Gold Medal Watchdog Glass Cleaner (Item No. 2588) is recommended.
-
Page 12: Troubleshooting
DELUXE CITATION Troubleshooting Long Popping Cycles If your pop cycle is longer than 4 minutes, it can be the result of several things: 1. LOW VOLTAGE - If the machine is operated on low voltage, this could cause the kettle not to reach the proper operating temperature. -
Page 13: Maintenance Instructions
DELUXE CITATION MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. DO NOT immerse any part of this equipment in water. DO NOT use excessive water when cleaning. Keep cord and plug off the ground and away from moisture. -
Page 14: Operation
DELUXE CITATION Electronic Temperature Control (for Domestic 2102E Series) Operation The temperature control is factory set to stop the power to the kettle when the thermocouple reaches setpoint. This is also the ideal point to dump the popped corn out of the kettle. On the first start-up, this is the ideal time to load the corn and oil. - Page 15 DELUXE CITATION Electronic Temperature Control (for Export 2102XE Series) Operation The temperature control is factory set to stop the power to the kettle when the thermocouple reaches set point. This is also the ideal point to dump the popped corn out of the kettle. On the first start-up, this is the ideal time to load the corn and oil.
-
Page 16: Ordering Spare Parts
4. Please include your model number, serial number, and date of manufacture (located on the machine nameplate/data plate) with your order. 5. Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 Or, place orders by phone or online:... -
Page 17: Replacing Broken Glass
DELUXE CITATION Replacing Broken Glass Broken glass panels can be easily replaced. Gold Medal Products Co. does not ship glass. It can be obtained from a local glass shop and always purchase tempered glass. 1. Remove all loose pieces of glass. - Page 18 DELUXE CITATION Complete 16 oz. Kettle Assy. (55166, EX and 55166E, XE) Complete Agitator Assembly (Includes Lids) * See Complete Kettle Bottom Assembly section for kettle parts breakdown (includes handle assembly). 12, 13 ** See Parts List note. Complete Agitator Assembly Domestic and Export Model Series 2102 and 2102E...
- Page 19 DELUXE CITATION Complete 16 oz. Kettle Assy. (55166, EX and 55166E, XE) – Parts List Part Number Item Parts Description 55166 55166EX 55166E 55166XE 1/4-20 X 1 THUMB SCREW 47691 47691 47691 47691 8-32 X 1/2 PHILL FLAT M/S ZINC 20066 20066 20066...
- Page 20 DELUXE CITATION Complete Kettle Bottom Assy. (55166, EX) - Parts Breakdown Model 55166 only has a Thermostat Shunt Bar. Use high temp red Loctite on the three flange nuts. Element View Model 55166EX shown for image reference with kettle shell removed. 25, 26 * Dump Handle Assembly...
- Page 21 DELUXE CITATION Complete Kettle Bottom Assy. (55166, EX) - Parts List Part No. Item Part Description 55166 55166EX 16OZ KETTLE BOTTOM ASSY (Complete Assy.) 55200 55200EX TRANSFER PLATE ASSY (beneath heat element) 67944 67944 8-32 SERRATED FLANGE NUT 61151 61151 KETTLE GASKET 41598 41598...
- Page 22 DELUXE CITATION Complete Kettle Bottom Assy. (55166E, XE) – Parts Breakdown Element View (Kettle Shell Removed) 20, 21 * Dump Handle Assembly includes Knob. Kettle Bottom Assembly View Domestic and Export Model Series 2102 and 2102E...
- Page 23 DELUXE CITATION Complete Kettle Bottom Assy. (55166E, XE) - Parts List Part No. Item Part Description 55166E 55166XE 16OZ KETTLE BOTTOM ASSY (Complete Assy.) 55201 55201EX HEAT TRANSFER PLATE (beneath heat element) 67890 67890 KETTLE GASKET 41598 41598 KETTLE WELDMENT 67892 67892 ¼...
- Page 24 Broken Glass Section for glass. Power Cord (Not Shown) * CAUTION: If supply cord is damaged, it must be replaced by Gold Medal Products Co., its service agent, or similarly qualified persons in order to avoid a hazard. Domestic and Export Model Series 2102 and 2102E...
- Page 25 DELUXE CITATION CABINET ASSEMBLY – REAR VIEW Replacement LH and RH Door Hardware Kits (see next page for individual component breakdown and parts list). 9, 10 Data Plate Domestic and Export Model Series 2102 and 2102E...
- Page 26 DELUXE CITATION Door Hardware Kits – Individual Component Breakdown Complete Right Hand Door Complete Left Hand Door Hardware Kit (P/N 47055) Hardware Kit (P/N 47054) (contains all parts shown above) (contains all parts shown above) Part Number Item Part Description 47054 47055 DOOR KNOB...
- Page 27 DELUXE CITATION INSIDE CABINET COMPONENTS Domestic and Export Model Series 2102 and 2102E...
- Page 28 DELUXE CITATION INSIDE CABINET COMPONENTS – CONTINUED 9, 10 Domestic and Export Model Series 2102 and 2102E...
- Page 29 DELUXE CITATION WARMER ASSEMBLY Model Series 2102E Shown for image reference only. Domestic and Export Model Series 2102 and 2102E...
- Page 30 DELUXE CITATION INSIDE ROOF COMPONENTS Model Series 2102E Shown for image reference only. Domestic and Export Model Series 2102 and 2102E...
- Page 31 DELUXE CITATION Parts List Model 2102 and 2102EX Part No. Item Part Description 2102 2102EX DOME, MOLDED 20 X 28 77001 77001 LED DOME LIGHT ASSY (not shown) 77040 77040 LED STRIP COOL WHITE (not shown) 55379 55379 POWER SUPPLY 24VDC 20W (not shown) 55394 55394 LED MOUNTING WHITE DOME (not shown)
- Page 32 DELUXE CITATION Parts List Model Domestic 2102E Series Part No. Item Part Description 2102E 2102EN 2102EST DOME, MOLDED 20 X 28 77001 LED DOME LIGHT ASSY (not shown) 77040 LED STRIP COOL WHITE (not shown) 55379 POWER SUPPLY 24VDC 20W (not shown) 55394 LED MOUNTING WHITE DOME (not shown) 55475...
- Page 33 DELUXE CITATION Parts List Model Export 2102XE Series Part No. Item Part Description 2102XE 2102XEN 2102XEST 2102XESTJ DOME, MOLDED 20 X 28 (not shown) 77001 LED DOME LIGHT ASSY (not shown) 77040 LED STRIP COOL WHITE (not shown) 55379 POWER SUPPLY 24VDC 20W (not shown) 55394 LED MOUNTING WHITE DOME (not shown) 55475...
-
Page 34: Electrical Schematic
DELUXE CITATION ELECTRICAL SCHEMATIC MODEL 2102 Domestic and Export Model Series 2102 and 2102E... - Page 35 DELUXE CITATION ELECTRICAL SCHEMATIC MODEL 2102EX Domestic and Export Model Series 2102 and 2102E...
- Page 36 DELUXE CITATION ELECTRICAL SCHEMATIC MODELS: 2102E, 2102EN, 2102EST Domestic and Export Model Series 2102 and 2102E...
- Page 37 DELUXE CITATION ELECTRICAL SCHEMATIC MODELS: 2102XE Domestic and Export Model Series 2102 and 2102E...
- Page 38 DELUXE CITATION ELECTRICAL SCHEMATIC MODELS: 2102XEST Domestic and Export Model Series 2102 and 2102E...
- Page 39 DELUXE CITATION ELECTRICAL SCHEMATIC MODELS: 2102XEN Domestic and Export Model Series 2102 and 2102E...
- Page 40 DELUXE CITATION ELECTRICAL SCHEMATIC MODELS: 2102XESTJ Domestic and Export Model Series 2102 and 2102E...
-
Page 41: Warranty
