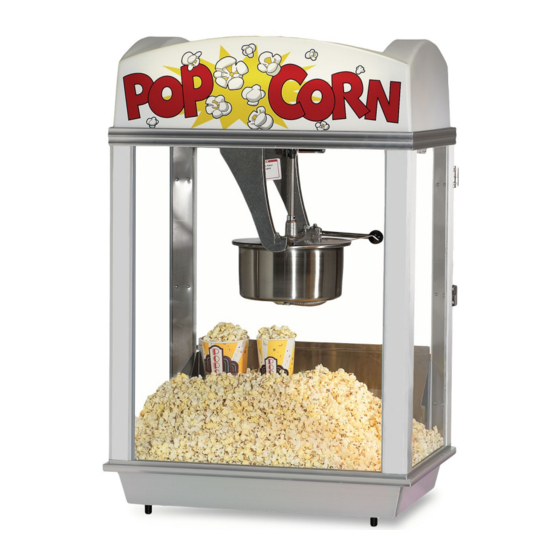

- Page 1 Instruction Manual Citation 16 oz. Popper Model No. 2001, 2001ST Model 2001 Model 2001ST 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA © 2021 Gold Medal Products Co. Part No. 67861...
-
Page 2: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215 gmpopcorn.com... - Page 3 007_010914 Note: Improvements are always being made to Gold Medal’s equipment. This information may not be the latest available for your purposes. It is critical that you call Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions.
-
Page 4: Inspection Of Shipment
Citation 16 oz. Popper Model No. 2001, 2001ST INSTALLATION INSTRUCTIONS Inspection of Shipment After unpacking, check thoroughly for any damage which may have occurred in transit. Claims should be filed immediately with the transportation company. The warranty does not cover damage that occurs in transit, or damage caused by abuse, or consequential damage due to the operation of this machine, since it is beyond our control (reference warranty in back of manual). -
Page 5: Electrical Requirements
We recommend this equipment be on a dedicated and protected circuit. Failure to wire properly will void the warranty and may result in damage to the machine. It is Gold Medal Products Co.’s recommendation that this machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to safety concerns, and may cause sacrificed and/or reduced performance. -
Page 6: Controls And Their Functions
Citation 16 oz. Popper Model No. 2001, 2001ST OPERATING INSTRUCTIONS Controls and Their Functions Two position, ON/OFF lighted rocker switch - supplies power to the popcorn sign and LIGHTS SWITCH interior cabinet light. The green switch light ON indicates there is power to the lights. Two position, ON/OFF lighted rocker switch - supplies power to the heating elements in the KETTLE HEAT SWITCH popping kettle. -
Page 7: Amount Of Popcorn And Oil
Citation 16 oz. Popper Model No. 2001, 2001ST Popping Corn This section describes instructions for popping Standard (salted popcorn) Amount of Popcorn and Oil The popper is equipped with a corn, salt, and oil measure. We recommend flavored and colored coconut oil. -
Page 8: Care And Cleaning
Watchdog Stainless Cleaner (Item No. 2088). DO NOT use oven cleaners or abrasive materials as they will damage the kettle. 3. Mix 2 tablespoons (29.6 ml) of Gold Medal’s Heat’n Kleen (Item No. 2095) in 1 gallon (3.8 L) of water. - Page 9 6. Clean glass panels with glass cleaner. Gold Medal Watchdog Glass Cleaner (Item No. 2588) is recommended. Ammonia cleaners will damage plastic doors/panels. Only use a non-ammonia cleaner, such as Gold Medal Watchdog Glass Cleaner (Item No.
- Page 10 Citation 16 oz. Popper Model No. 2001, 2001ST Weekly Filter Cleaning Instructions The popcorn machine is equipped with an efficient and durable filtration system. The filter should be cleaned every week to maintain maximum efficiency. Steps to Clean Filter 1. Turn unit OFF and allow it to cool before removing filter.
-
Page 11: Troubleshooting
Citation 16 oz. Popper Model No. 2001, 2001ST Troubleshooting A. Power to the Unit A. Make sure the unit’s power cord is plugged in. Issue Possible Cause Solution A. Power to the Kettle A. Make sure kettle lead-in cord is plugged in and Power to the Unit twisted to lock into the kettle receptacle. - Page 12 Citation 16 oz. Popper Model No. 2001, 2001ST Agitator Set Collar Adjustment The following instructions describe how to properly adjust set collars on an agitator assembly with a fixed stir rod. Steps to Adjust Set Collars on Agitator with a Fixed Stir Rod Agitator assembly is adjusted while fastened to the kettle (image shown for general reference only).
-
Page 13: Maintenance Instructions
Citation 16 oz. Popper Model No. 2001, 2001ST THE FOLLOWING SECTIONS ARE FOR QUALIFIED SERVICE PERSONNEL ONLY MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. Make sure all machine switches are in the OFF position before plugging the equipment into the receptacle. -
Page 14: Ordering Spare Parts
Web Page: gmpopcorn.com Replacing Broken Glass Broken glass panels can be easily replaced. Gold Medal Products Co. does not ship glass. It can be obtained from a local glass shop, always purchase tempered glass. GLASS DIMENSIONS (Height x Width x Thickness) Front Glass: 28 3/16”... - Page 15 Citation 16 oz. Popper Model No. 2001, 2001ST 16 oz. Kettle Assembly (55199) – Agitator Assembly View 55199 Overall Kettle 55199E Ag. Assy. 55199E Exp. Views Complete Agitator Assembly (Includes Lids) *See Parts See Kettle Bottom List note. Assy. section for parts breakdown 13, 14 (includes Handle...
- Page 16 Citation 16 oz. Popper Model No. 2001, 2001ST 16 oz. Kettle Assembly (55199) – Kettle Bottom Assembly Top Lock Nut - Fastens each 55199 Kettle Element 55199EX Kettle Bottom Assy. 55199E exp. views thermostat and ground. Install Lock Nut with triangle in UP position (as shown).
- Page 17 Citation 16 oz. Popper Model No. 2001, 2001ST 16 oz. Kettle Assembly (55199) – Kettle Bottom Assy. – Parts List Part Number Item Part Description 16OZ KETTLE BOTTOM ASSY (Complete Assy.) 55200 55199 TRANSFER PLATE ASSY (beneath heat element) 67944 KETTLE GASKET 41598 KETTLE WELDMENT...
- Page 18 Citation 16 oz. Popper Model No. 2001, 2001ST Cabinet Exterior – Front View 2005ST See Dome and Lighted Sign Assembly section. See Kettle Assembly section. For Glass Panels, see Replacing Glass section. 2, 3 4, 5, 6 General image shown for parts reference only. Part Number Item Part Description...
- Page 19 Safety Label Section. Data Plate *CAUTION: If supply cord is damaged, it must be replaced by Gold Medal Products Co., its service agent, or similarly qualified persons in order to avoid a hazard. General image shown for parts reference only...
- Page 20 Citation 16 oz. Popper Model No. 2001, 2001ST Door Hardware Kits – Individual Component Breakdown Complete Right Hand Door Complete Left Hand Door Hardware Kit (P/N 47055) Hardware Kit (P/N 47054) (contains all parts shown above) (contains all parts shown above) Part Number Item Part Description...
- Page 21 Citation 16 oz. Popper Model No. 2001, 2001ST Cabinet Interior – Hanger Assembly/Controls View 2005ST For Labels, see Safety Label Section. 13, 14 11*, 12 *See Parts LED Bulb List note. General image shown for parts reference only. Part Number Item Part Description 5 HOLE SWITCH BOX...
- Page 22 Citation 16 oz. Popper Model No. 2001, 2001ST Cabinet Interior – Element View 2001ST For Labels, see Safety Label section. 4, 5, 6 16, 17, 18 4, 5, 6 13, 14 12 11 Model 2001ST Shown Part Number Item Part Description 120V 60CY EXHAUST BLOWER 47343 2001, 2001ST...
- Page 23 Citation 16 oz. Popper Model No. 2001, 2001ST Dome Interior – Electrical Components 2001ST LED Bulb Assembly 10, 7 6, 7 See Controls View Control Box and Cover used on molded dome models only. 7, 10 Model 2001ST Shown gmpopcorn.com Page 23...
- Page 24 Citation 16 oz. Popper Model No. 2001, 2001ST Dome Interior – Parts List Part Number Item Part Description LED REPLACEMENT NO PLATE 100544 100544 2001 2001ST POWER SUPPLY 24VDC 20W 55394 POWER SUPPLY 24VDC 60W 55586 20W POWER SUPPLY BRACKET 55414 60W POWER SUPPLY BRACKET 55624...
- Page 25 Citation 16 oz. Popper Model No. 2001, 2001ST Lighted Sign Assembly – Stainless Steel Dome 2001ST 9, 10 Front Wrapper - Front View 15, 16 Fastens Front Wrapper to Main Wrapper Front Wrapper - Rear View Part Number Item Part Description 5/16-18 X 5/8 PH TR (fastens dome) 46638 2001ST...
- Page 26 Citation 16 oz. Popper Model No. 2001, 2001ST Lighted Sign Assembly – Molded Dome 2003 Complete LED Light Assembly 7, 8 LED Light Assembly – Front View 16, 17 11, 12 LED Light Assembly – Rear View Part Number Item Part Description 5/16-18 X 5/8 PH TR (fastens dome) 46638...
-
Page 27: Safety Labels
Citation 16 oz. Popper Model No. 2001, 2001ST Safety Labels Kettle Lead-In Label Unit Labels Power Cord Label Part Number Item Part Description UNIVERSAL POPPER DECAL 41019 All Models MAIN GROUND LABEL 42375 WARNING, SURFACE CONTACT 87087 CONDUIT WARNING LABEL 82840 WARNING LABEL CORD 68720... -
Page 28: Wiring Diagram
Citation 16 oz. Popper Model No. 2001, 2001ST Wiring Diagram Model No. 2001 and 2001ST gmpopcorn.com Page 28... -
Page 29: Warranty
© 2021 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
