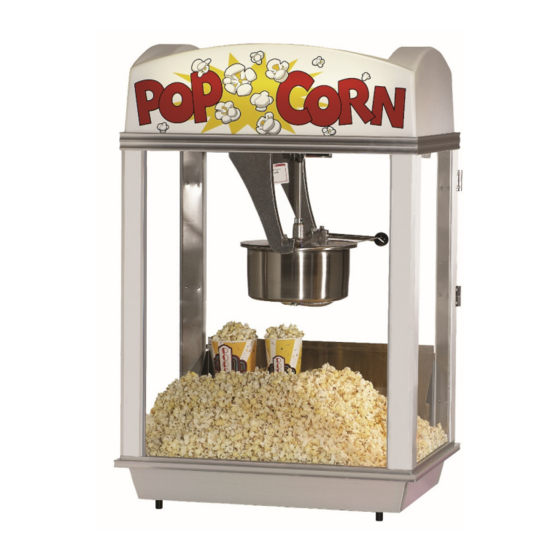

- Page 1 Instruction Manual Pop-A-Lot Model No. 2007, 2007BN, 2007ST, 2007EX, 2007STX 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA © 2016 Gold Medal Products Co. Part No. 11000...
-
Page 2: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215 gmpopcorn.com... - Page 3 Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions. (Gold Medal Products Co. does not assume any liability for injury due to careless handling and/or reckless operation of this equipment.) gmpopcorn.com...
-
Page 4: Installation Instructions
Pop-A-Lot Model No. 2007, 2007BN, 2007ST, 2007EX, 2007STX INSTALLATION INSTRUCTIONS Inspection of Shipment After unpacking, check thoroughly for any damage which may have occurred in transit. Claims should be filed immediately with the transportation company. The warranty does not cover damage that occurs in transit, or damage caused by abuse, or consequential damage due to the operation of this machine, since it is beyond our control. -
Page 5: Electrical Requirements
4. DO NOT use a grounded to un-grounded receptacle adapter (where applicable). 5. Install the unit in a level position. CAUTION If the supply cord is damaged, it must be replaced by Gold Medal Products Co., its service agent or similarly qualified persons in order to avoid a hazard. 039_080614 gmpopcorn.com... -
Page 6: Controls And Their Functions
Pop-A-Lot Model No. 2007, 2007BN, 2007ST, 2007EX, 2007STX OPERATING INSTRUCTIONS Controls and Their Functions LIGHT SWITCH – Turns on the dome light and the interior heat light. WARMER SWITCH – Turns on the heat to the bottom corn pan. KETTLE MOTOR SWITCH – Turns on the motor which drives kettle agitator shaft and the exhaust blower in the popper dome. -
Page 7: Care And Cleaning
2. Every night, mix Gold Medal’s Heat’n Kleen solution (Item No. 2095), 2 tablespoons per gallon of water. It is not necessary to use the entire gallon at once; only use enough to fill the kettle 1/2 inch deep. - Page 8 DO NOT use oven cleaners or abrasive materials as they will damage parts of the machine. 5. Clean the glass panels with glass cleaner. Gold Medal Watchdog Glass Cleaner (Item No. 2588) is recommended. Ammonia cleaners will damage the plastic doors. Use only non-ammonia cleaners, such as Gold Medal Watchdog Glass Cleaner (Item No.
-
Page 9: Troubleshooting
Pop-A-Lot Model No. 2007, 2007BN, 2007ST, 2007EX, 2007STX Troubleshooting Issue Possible Cause Solution Power to the Unit A. Power to the Unit A. Make sure the unit’s power cord is plugged in. Kettle Does Not Heat A. Power to the Kettle A. - Page 10 Pop-A-Lot Model No. 2007, 2007BN, 2007ST, 2007EX, 2007STX Agitator Set Collar Adjustment The following instructions describe how to properly adjust set collars on an agitator assembly with a floating stir rod. Steps to Adjust Set Collars Step 1: Make sure machine is OFF and unplugged, then allow unit to cool completely Agitator’s Spur Gear before attempting to adjust the agitator height.
-
Page 11: Maintenance Instructions
Pop-A-Lot Model No. 2007, 2007BN, 2007ST, 2007EX, 2007STX MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. DO NOT immerse any part of this equipment in water. DO NOT use excessive water when cleaning. -
Page 12: Ordering Spare Parts
3. Please include your model number, serial number, and date of manufacture (located on the machine nameplate) with your order. 4. Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 Or, place orders by phone or online:... - Page 13 Pop-A-Lot Model No. 2007, 2007BN, 2007ST, 2007EX, 2007STX 8 oz. Kettle Assembly (47987N, 47987EX) – Agitator Assembly 582 20 Ov erall Im age 582 20 Agi ta tor Assem bly Complete Agitator Assembly (Includes Lids) See Kettle Bottom Assy. Complete Kettle Assembly *See Parts List note.
- Page 14 Pop-A-Lot Model No. 2007, 2007BN, 2007ST, 2007EX, 2007STX 8 oz. Kettle Assy. (47987N, 47987EX) – Agitator Assy. – Parts List Part Number Item Part Description 47987N 47987EX 1/4-20 X 1.25 THUMB SCREW 61068 61068 8-32 X 1/2 PHILL FLAT M/S ZINC 20066 20066 SHELL &...
- Page 15 Pop-A-Lot Model No. 2007, 2007BN, 2007ST, 2007EX, 2007STX 8 oz. Kettle Assembly (47987N) – Kettle Bottom View Overall k et tle bot tom 5 82 20 Elem en t vi ew 4 79 87N Kettle Bottom Assembly Element View Top Lock Nut - Fastens each thermostat and ground.
- Page 16 Pop-A-Lot Model No. 2007, 2007BN, 2007ST, 2007EX, 2007STX 8 oz. Kettle Assembly (47987EX) – Kettle Bottom View Overall k et tle bot tom 5 82 20 EX Elem en t vi ew 4 79 87E X Kettle Bottom Assembly 8, 9 As of February 1, 2016, the EXPORT Kettle Lead-in Assembly Plug is 230V (NEMA L-6).
- Page 17 Pop-A-Lot Model No. 2007, 2007BN, 2007ST, 2007EX, 2007STX Cabinet Assembly - Exterior Molded Dome (Model 2007) Shown - see Dome / Lighting Breakdown for Part Numbers per Dome Assembly * Complete Left or Right Hand Door Hardware Kit - see next page for individual component breakdown.
- Page 18 Pop-A-Lot Model No. 2007, 2007BN, 2007ST, 2007EX, 2007STX Door Hardware Kits – Individual Component Breakdown Complete Hardware Kit Complete Hardware Kit Left Hand Door (P/N 47054) Right Hand Door (P/N 47055) Part Number Item Part Description Qty. 47054 47055 DOOR KNOB 41013 41013 TEE BOLT...
- Page 19 Pop-A-Lot Model No. 2007, 2007BN, 2007ST, 2007EX, 2007STX Cabinet Interior – Hanger Assembly – Parts Breakdown 6, 7 LED Bulb Replacement Assembly (shown below) LED Bulb Replacement 4c, 4d Assembly (if equipped) General image shown for parts reference only. gmpopcorn.com Page 19...
- Page 20 Pop-A-Lot Model No. 2007, 2007BN, 2007ST, 2007EX, 2007STX Cabinet Interior – Hanger Assembly – Parts List Part Number Item Parts Description 2007 2007BN 2007ST 2007EX 2007STX COVER PLATE FOR NO OIL 77478 77478 77478 77478 77478 FILTER RETAIN ANGLE 41644 41644 41644 41644...
- Page 21 Pop-A-Lot Model No. 2007, 2007BN, 2007ST, 2007EX, 2007STX Cabinet Assembly - Interior - Heated Corn Deck Part Number Item Parts Description Qty. 2007 2007BN 2007ST 2007EX 2007STX CORN PAN ASSY 47598 47598 47598 47598EX 47598EX STRAIN RELIEF SR 15-1 61099 61099 61099 61099...
- Page 22 Pop-A-Lot Model No. 2007, 2007BN, 2007ST, 2007EX, 2007STX Electrical Breakdown – Dome Interior – Parts Breakdown For Models with LED Bulb Replacement Assembly, see Cabinet Interior – Hanger Assembly section. 6, 7 * Control Box and Cover used on Molded Dome Models Only Dome Interior View (Model 2007 shown for parts reference only.) gmpopcorn.com...
- Page 23 Pop-A-Lot Model No. 2007, 2007BN, 2007ST, 2007EX, 2007STX Electrical Breakdown – Dome Interior – Parts List Part Number Item Parts Description Qty. 2007 2007BN 2007ST 2007EX 2007STX LAMP HOLDER 47047 47047 47047 LIGHT SHIELD CONICAL 49480 49480 49480 EXHAUST BLOWER 47343 47343 47343...
- Page 24 Pop-A-Lot Model No. 2007, 2007BN, 2007ST, 2007EX, 2007STX Dome / Lighting Breakdown – Molded Dome Models 2007, 2007EX 8, 9 4, 5, 6 Item Part Description Qty. Part No. 20 X 28 MOLDED DOME 77001 LED DOME LIGHT ASSEMBLY (includes 77040 itemized parts listed below) LED MOUNTING WHITE DOME...
- Page 25 Pop-A-Lot Model No. 2007, 2007BN, 2007ST, 2007EX, 2007STX Dome / Lighting Breakdown – Stainless Steel w/LED Neon Sign Model 2007BN Item Part Description Qty. Part No. DOME ASSY W/LED SIGN (includes itemized 45006 parts listed below) LED POPCORN SIGN 69708 POWER SUPPLY 12VDC 55231 MOLDED PLUG...
- Page 26 Pop-A-Lot Model No. 2007, 2007BN, 2007ST, 2007EX, 2007STX Dome / Lighting Breakdown – Stainless Steel with LED Lighting Models 2007ST, 2007STX 7, 8 View behind Popcorn Sign Item Part Description Qty. Part No. COMPLETE DOME ASSY (includes itemized 41811 parts listed below) MAIN WRAPPER 41794 FRONT WRAPPER ASSY...
- Page 27 Pop-A-Lot Model No. 2007, 2007BN, 2007ST, 2007EX, 2007STX Accessories Item Part Description Qty. Part No. MEASURE ONE CUP 47147 STAMPED ALUMINUM SCOOP 2071 MEASURE 6.5CC 47678 OIL MEASURE (1/3 CUP) 47150 gmpopcorn.com Page 27...
-
Page 28: Wiring Diagram
Pop-A-Lot Model No. 2007, 2007BN, 2007ST, 2007EX, 2007STX WIRING DIAGRAM Model No. 2007, 2007ST gmpopcorn.com Page 28... - Page 29 Pop-A-Lot Model No. 2007, 2007BN, 2007ST, 2007EX, 2007STX Model No. 2007BN gmpopcorn.com Page 29...
- Page 30 Pop-A-Lot Model No. 2007, 2007BN, 2007ST, 2007EX, 2007STX Model No. 2007EX, 2007STX gmpopcorn.com Page 30...
- Page 31 © 2016 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
