- Page 1 Gold Medal equipment and this information may not be the latest available for your purposes. It is critical that you call Gold Medal Products technical service department at 1-800-543-0862 for any questions about machine operations, replacement parts, or any service questions.

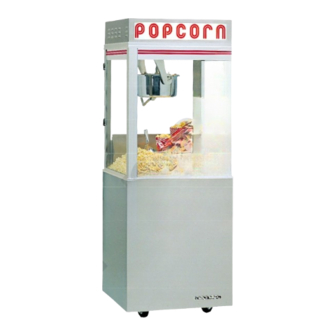

- Page 2 WWW.CONCESSIONPALACE.COM Part No. 41474 Revised 8/89 ASTRO –POP 16 & 20 OZ. Instruction Manual Model #2022,#2023, #2024, #2026, #2026T #2023EX, #2024EX, #2026EX Cincinnati, OH 45241-4807 USA SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
-
Page 3: Installation Instructions
ASTRO- POP 16 & 20 OZ WWW.CONCESSIONPALACE.COM SAFETY SHEET INSTALLATION INSTRUCTIONS 2022,2023,2024,2023EX,2024EX,2026,2026EX,2026T SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE... -
Page 4: Checking Shipment
If you purchased a bucket seasoning pump, it too is in a separate carton. Unpack all cartons and check thoroughly for any damage, which may have occurred during transit. Damage claims should be filed immediately with the transportation company. 2022,2023,2024,2023EX,2024EX,2026,2026EX,2026T SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE... - Page 5 WWW.CONCESSIONPALACE.COM SPECIFICATIONS ASTRO POP – 16OZ ASTRO POP – 16OZ ASTRO POP – 20OZ ASTRO POP – 20 OZ #2022, 2023 , 2024 # 2023EX , 2024EX #2026, 2026T #2026EX HEIGHT * 46 IN 46 IN. 46 IN. 46 IN.
-
Page 6: Controls And Their Functions
WWW.CONCESSIONPALACE.COM OPERATING INSTRUCTIONS CONTROLS AND THEIR FUNCTIONS LIGHT SWITCH Flipping this lever to the “ON” position lights all the lights on your popper. WARMER SWITCH Flipping the lever of this switch to the “ON” position energizes the blower, which will freshen any prepopped corn you may have left over. - Page 7 POPPING CORN (COUNTER MODEL) 1. Turn the “LIGHT SWITCH” and ‘WARMER SWITCH” on. 2. Turn the “ KETTLE HEAT” switch on approximately five minutes before you are ready to pop corn. 2022,2023,2024,2023EX,2024EX,2026,2026EX,2026T SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
-
Page 8: Care And Cleaning
Wipe the outside, too. Then, use any glass cleaner this is recommended for cutting grease. We find a wax cleaner such as Johnson’s Shine-Up to be good for cleaning the aluminum exterior of your machine. 2022,2023,2024,2023EX,2024EX,2026,2026EX,2026T SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE... -
Page 9: Exhaust Filter
We recommend the use of Gold Medal “OLD SOAK” cleaner. This is a specially formulated USDA Food approved cleaner used in bakeries for removing burned material from baking pans. -
Page 10: Maintenance Instructions
NOTE: WE DO NOT SHIP GLASS, OBTAIN FROM LOCAL GLASS SHOP OR HARDWARE STORE. ALWAYS PURCHASE DOUBLE STRENGTH TYPE GLASS. Glass sizes: 23 1/16 x 32 3/16 x 1/8 (2022, 2023, 2023EX, 2016) 23 1/16 X 28 3/16 X 1/8 (2024, 2024EX) MAINTENANCE INSTRUCTIONS... -
Page 11: Ordering Spare Parts
2. When ordering parts, include part number, part name, and quantity required. 3. Include you model name and machine serial number (found on nameplate) with your order. 4. Address orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 or, place orders at:... - Page 12 6. To get more oil to the kettle, turn nylon adjustment screw clockwise. This permits the pump motor to run longer, thus pumping more oil. 2022,2023,2024,2023EX,2024EX,2026,2026EX,2026T SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
-
Page 13: Troubleshooting
E. INFERIOR CORN--Inferior quality corn would result in longer popping cycles. Use only top quality hybrid popcorn from reputable suppliers. Even then, if you let your corn pick up moisture or dry out, your popping cycles will be slow. 2022,2023,2024,2023EX,2024EX,2026,2026EX,2026T SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE... -
Page 14: Motor Will Not Turn Agitator
Visual inspection might show a hole burned through the metal sheath in some cases. If no defect is apparent, check the current to the heating elements. If defective, new elements are available from our local Gold Medal Dealer or directly from the factory. - Page 15 If the voltage is found to be low, contact your local electric company. Some symptoms of low voltage are long popping cycles, and pump not cycling with kettle heat on. PARTS LIST 2022,2023,2024,2023EX,2024EX,2026,2026EX,2026T SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
- Page 16 ASTRO- POP 16 & 20 OZ WWW.CONCESSIONPALACE.COM CABINET ASSEMBLY 16 OZ REF# ITEM 2022 2023 2023EX 2024 2024EX HANGER ARM 47262 47262 47262 47262 47262 GEAR BLOCK 47065 47065 47065 47065 47065 GEAR 47059 47059 47059 47059 47059 HANGER ARM...
- Page 17 #8 – 32 HEX NUT 49177 49177 49177 49177 49177 #8 – 32 PH. HD, X ¾ 74147 74147 74147 74147 74147 #8 – 32 PH. X ½ ST 89128 89128 89128 89128 89128 2022,2023,2024,2023EX,2024EX,2026,2026EX,2026T SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
- Page 18 47225 47225 SWITCH BOX PUMP 41106 41106 41106 BUTTON OIL PUMP 41031 41031 41031 SWITCH OIL PUMP 47201 47201 47201 PILOT LIGHT 41033 41033 41033 SWITCH 47202 74087 47202 SWITCH 47201 47201 47201 2022,2023,2024,2023EX,2024EX,2026,2026EX,2026T SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
- Page 19 #8 IN TOOTH WASHER 74150 74150 74150 #8 – 32 HEX NUT 74149 74149 74149 #8 – 32 ACORN NUT 47702 47702 47702 #8 – 32 HX X 3/8 ST 74141 74141 74141 2022,2023,2024,2023EX,2024EX,2026,2026EX,2026T SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
- Page 20 41183 41183 41183 ELEMENT RETAINER 41878 41878 41878 WASHER 76079 76079 76079 NUT ¼-20 74133 74133 74133 KETTLE SHELL 41081 41081 41081 NUT ¼-20 74133 74133 74133 DUMP HANDLE COLLAR 47325 47325 47325 2022,2023,2024,2023EX,2024EX,2026,2026EX,2026T SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
- Page 21 47707 47707 47707 DUMP HANDLE KNOB 47110 47110 47110 90 DEGREE EL 46241 46241 46241 CONDUIT 82107-24 82107-24 82107-24 CONDUIT BUSHING 82135 82135 82135 PLUG 41145 41145 41145 SCREW LONG 74153 74153 74153 2022,2023,2024,2023EX,2024EX,2026,2026EX,2026T SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
