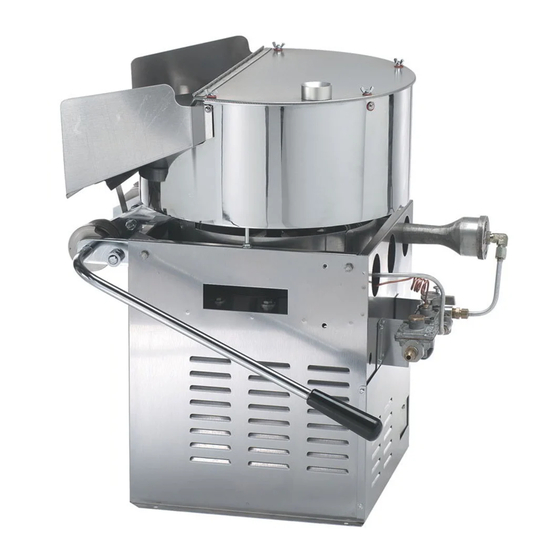

- Page 1 Instruction Manual Jumbo 360 Model No. 2033BG, 2033EX, 2033DC 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA © 2016 Gold Medal Products Co. Part No. 74103...
-
Page 2: Safety Precautions
Jumbo 360 Model No. 2033BG, 2033EX, 2033DC SAFETY PRECAUTIONS DANGER Gas is safe when used properly, but can be very dangerous when used improperly. We suggest that installation be carefully made by qualified personnel only. Gas companies have competent service personnel to provide safe installation. - Page 3 Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215 gmpopcorn.com...
- Page 4 Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions. (Gold Medal Products Co. does not assume any liability for injury due to careless handling and/or reckless operation of this equipment.) gmpopcorn.com...
-
Page 5: Installation Instructions
2033BG: 36 oz. Jumbo 360 Popper, LP Gas, utilizes an electric kettle drive motor. 2033EX: Export, 36 oz. Jumbo 360 Popper, LP Gas, utilizes an electric kettle drive motor. 2033DC: 36 oz. Jumbo 360 Popper, LP Gas, utilizes a DC powered kettle drive motor (battery is not included with this unit). - Page 6 Jumbo 360 Model No. 2033BG, 2033EX, 2033DC Setup This unit has been tested at the factory. 1. Remove all packaging and tape prior to operation. 2. This unit is for outdoor use only. 3. Place popper on a level, sufficiently stable base or counter that is strong enough to safely support it when in use.
-
Page 7: Gas Requirements
DO NOT connect the unit to a power source before gas connection is complete. Gas Requirements Converting the unit to an alternate fuel source will void the warranty and may cause a dangerous condition. 2033BG, 2033EX, and 2033DC: Propane Gas, 33,500 BTU/HR NOTE: For outdoor use only. Gas Installation DANGER Gas is safe when used properly, but can be very dangerous when used improperly. -
Page 8: Checking For Gas Leaks
Stop using the appliance immediately if damage is found, and contact a qualified professional to inspect and correct any issue. 3. Securely route all gas lines away from flames and high temperature areas. 4. Contact Gold Medal Technical Support, or a qualified Gas Service Technician with any questions. Gas Pressure We have determined that optimum popping occurs when the gas pressure is adequate. - Page 9 Jumbo 360 Model No. 2033BG, 2033EX, 2033DC gmpopcorn.com Page 9...
- Page 10 Jumbo 360 Model No. 2033BG, 2033EX, 2033DC gmpopcorn.com Page 10...
- Page 11 Jumbo 360 Model No. 2033BG, 2033EX, 2033DC gmpopcorn.com Page 11...
- Page 12 Jumbo 360 Model No. 2033BG, 2033EX, 2033DC gmpopcorn.com Page 12...
- Page 13 Jumbo 360 Model No. 2033BG, 2033EX, 2033DC gmpopcorn.com Page 13...
-
Page 14: Electrical Requirements
This unit must be wired in accordance with local electric and building code requirements by a qualified technician. Model 2033BG and 2033EX are supplied with a hot, neutral, and ground lead as shown in image below. Model 2033DC is supplied with a black (negative) lead and a red (positive) lead as shown in the image below. - Page 15 Failure to wire properly will void the warranty and may result in damage to the machine. It is Gold Medal Products Co.’s recommendation that this machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to safety concerns, and may cause sacrificed and/or reduced performance.
-
Page 16: Operating Instructions
Jumbo 360 Model No. 2033BG, 2033EX, 2033DC OPERATING INSTRUCTIONS Controls and Their Functions GAS SAFETY VALVE The Gas Safety Valve has three settings used to control gas flow; PILOT, ON, and OFF positions. (Reference the Lighting and Shutdown Instructions in the Operating Instruction section of this manual.) - Page 17 Jumbo 360 Model No. 2033BG, 2033EX, 2033DC KETTLE MOTOR SWITCH Two position, ON/OFF toggle switch which provides power to the kettle agitator drive motor. DO NOT pop corn if the agitator is NOT rotating. Safety Valve Gas Safety Valve Gas Safety...
-
Page 18: Lighting And Shutdown Instructions
Jumbo 360 Model No. 2033BG, 2033EX, 2033DC Lighting and Shutdown Instructions Steps to Light the Pilot and Burner: 1. Turn the Gas Safety Valve to the PILOT position. 2. Depress the Safety Valve Button next to the safety valve handle. Hold this button down for 30-45 seconds. - Page 19 Jumbo 360 Model No. 2033BG, 2033EX, 2033DC If the Flame Goes Out If the flame goes out, a five minute shutdown period is required before attempting to re-light. 1. Check to see if you are out of gas. 2. Check to see if the thermocouple is in the proper position.
-
Page 20: Amount Of Popcorn And Oil
Jumbo 360 Model No. 2033BG, 2033EX, 2033DC Popping Corn This section describes popping instructions for Standard (Salted) Popcorn using a gas popper. Amount of Popcorn and Oil The popper unit is equipped with a corn, salt, and oil measure. We recommend flavored and colored coconut oil. -
Page 21: Care And Cleaning
1. When cool, wipe outside of kettle with a clean, soft cloth. DO NOT use oven cleaners or abrasive materials as they will damage the kettle. 2. Every night, mix Gold Medal’s Heat’n Kleen solution (Item No. 2095), 2 tablespoons per gallon of water. It is not necessary to use the entire gallon at once; only use enough to fill the kettle 1/2 inch deep. - Page 22 4. Wipe stainless steel parts with a clean cloth and cleaner designed for stainless steel, such as Gold Medal Watchdog Stainless Cleaner (Item No. 2088). DO NOT use oven cleaners or abrasive materials as they will damage parts of machine.
-
Page 23: Troubleshooting
Jumbo 360 Model No. 2033BG, 2033EX, 2033DC Troubleshooting Issue Possible Cause Solution Gas Issues A. For gas issues refer to the initial Gas Setup Instructions. Long Popping Cycles A. Inferior Corn A. Inferior quality corn would result in longer (Longer than 4 minutes) popping cycles. -
Page 24: Maintenance Instructions
Jumbo 360 Model No. 2033BG, 2033EX, 2033DC MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. DO NOT immerse any part of this equipment in water. -
Page 25: Ordering Spare Parts
Jumbo 360 Model No. 2033BG, 2033EX, 2033DC ORDERING SPARE PARTS 1. Identify the needed part by checking it against the photos, illustrations, and/or parts list. 2. Use only approved replacement parts when servicing this unit. 3. When ordering, please include part number, part name, and quantity needed. -
Page 26: Kettle Assembly
Jumbo 360 Model No. 2033BG, 2033EX, 2033DC Kettle Assembly 1, 2 * NOTE: The position of the Belville Washers is IMPORTANT. Conical surfaces must face each other as shown. gmpopcorn.com Page 26... - Page 27 Jumbo 360 Model No. 2033BG, 2033EX, 2033DC Kettle Assembly Cross Section – Parts List Part Number Item Part Description 2033BG 2033EX 2033DC SCREW #8-32X1/2 PAN HD PH 74147 74147 74147 HEX NUT #8-32 ESLOK 74146 74146 74146 SET SCREW #8-32 X 5/8...
- Page 28 Jumbo 360 Model No. 2033BG, 2033EX, 2033DC Unit Top View (under Kettle) See Gas Line Parts Breakdown Section. Part Number Item Part Description 2033BG 2033EX 2033DC DUMP BAR HANDLE 74112 74112 74112 DUMP BAR HANDLE ASSY 74113 74113 74113 COLLAR...
- Page 29 Jumbo 360 Model No. 2033BG, 2033EX, 2033DC Gas Line – Rear View – Parts Breakdown gmpopcorn.com Page 29...
- Page 30 Jumbo 360 Model No. 2033BG, 2033EX, 2033DC Gas Line – Rear View – Parts List Part Number Item Part Description 2033BG 2033EX 2033DC AIR ADJUSTMENT CAP 74023 74023 74023 ELBOW,BULKHEAD SPECIAL 74037 74037 74037 5/16 OD ALUM TUBE (uses 0.6 ft.)
- Page 31 Jumbo 360 Model No. 2033BG, 2033EX, 2033DC Accessories Item Part Description Part No. PERF JET SCOOP REGULAR RH 2072 MEASURE 1/4 CUP 47169 CORN CUP ASSY 36 OZ 67905-36 TANK REGULATOR 89920 GAS HOSE (has a Flared Hose Fitting) 109000 gmpopcorn.com...
-
Page 32: Wiring Diagram
Jumbo 360 Model No. 2033BG, 2033EX, 2033DC Wiring Diagram Model No. 2033BG gmpopcorn.com Page 32... - Page 33 Jumbo 360 Model No. 2033BG, 2033EX, 2033DC Model No. 2033EX gmpopcorn.com Page 33...
- Page 34 Jumbo 360 Model No. 2033BG, 2033EX, 2033DC Model No. 2033DC gmpopcorn.com Page 34...
- Page 35 © 2016 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
