Related Manuals for Gold Medal 1866
Summary of Contents for Gold Medal 1866
- Page 1 Gold Medal equipment and this information may not be the latest available for your purposes. It is critical that you call Gold Medal Products technical service department at 1-800-543-0862 for any questions about machine operations, replacement parts, or any service questions.

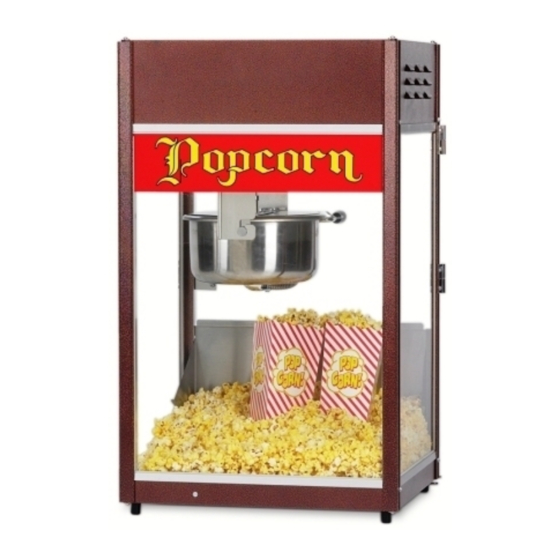

- Page 2 WWW.CONCESSIONPALACE.COM Part No. 49064 Revised: October 2004 P-60 / 60 Special / & Uncle Walt’s Popcorn Machine Instruction Manual Model #1866, #2085, #2086, #2656 and #2656UW Models #1866 and #2086 Models #2085 2656, and 2656UW Cincinnati, OH 45241-4807 USA SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
-
Page 3: Safety Precautions
WWW.CONCESSIONPALACE.COM Popcorn Machines SAFETY PRECAUTIONS #1866, #2085, #2086, #2656 #2656UW ALL MODELS SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE... -
Page 4: Installation Instructions
3. Load pre-measured popcorn and oil pouch into kettle. 4. When corn has popped, dump kettle. 5. Repeat cycle starting with Item #3; always pop 3-5 batches for best popcorn. #1866, #2085, #2086, #2656 #2656UW ALL MODELS SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE... -
Page 5: Care And Cleaning
Wipe the outside of the machine also. NOTE: Never use a glass or plastic cleaner that contains ammonia. It will crack the plastic on the machine. #1866, #2085, #2086, #2656 #2656UW ALL MODELS SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE... -
Page 6: Maintenance Instructions
WWW.CONCESSIONPALACE.COM Popcorn Machines MAINTENANCE INSTRUCTIONS ACCESSORIES Description Part Number Shipping Carton 49026 Corn Measure Cup 49049 Scoop 2071 Flavacol Cup 47678 #1866, #2085, #2086, #2656 #2656UW ALL MODELS SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE... -
Page 7: Ordering Spare Parts
Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 or, place orders at: (800) 543-0862 (513) 769-7676 Fax: (513) 769-8500 E-mail: info@gmpopcorn.com Web Page: www.gmpopcorn.com #1866, #2085, #2086, #2656 #2656UW ALL MODELS SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE... - Page 8 WWW.CONCESSIONPALACE.COM Popcorn Machines 60 SPECIAL & P-60 POPPER ASSEMBLY #1866, #2085, #2086, #2656 #2656UW ALL MODELS SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
-
Page 9: Parts List - Hanger Assembly
#10-24 x 1 Hex Mach Screw 1-23 87087 Label, Caution Hot 1-24 14821 Bolt ¼-20 x ½" Hex HD 1-25 74133 ¼-20 Hex Nut 1-26 49507 Motor Plate #1866, #2085, #2086, #2656 #2656UW ALL MODELS SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE... -
Page 10: Parts List - Cabinet Assembly
2-32 74149 74149 #8-32 Hex Nuts 2-33 74150 74150 #8 Internal Tooth Washer 2-34 41019 41019 Universal Popper Decal 2-35 75267 75267 Tee Bolt * Not Shown #1866, #2085, #2086, #2656 #2656UW ALL MODELS SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE... - Page 11 2-38 49510 49510 Rigid Glass Channel 17" LG (2 Req) * 2-39 49511 49511 2-40 49508 49062 Glass Extrusion 14 9/32" LG (4 Req) * Not Shown #1866, #2085, #2086, #2656 #2656UW ALL MODELS SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
- Page 12 74149 74149 74149 #8-32 Hex Nut 2-33 74150 74150 74150 #8 Internal Tooth Washer 2-34 41019 41019 41019 Universal Popper Decal 2-35 75267 75267 75267 Tee Bolt #1866, #2085, #2086, #2656 #2656UW ALL MODELS SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
- Page 13 49510 Rigid Glass Channel 17" LG (2 Req) * 2-39 49511 49511 49511 2-40 49602 49508 49508 Glass Extrusion 14 9/32" LG (4 Req) * Not Shown #1866, #2085, #2086, #2656 #2656UW ALL MODELS SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
-
Page 14: Parts List - 6 Oz. Kettle Assembly
WWW.CONCESSIONPALACE.COM Popcorn Machines 6 oz. KETTLE ASSEMBLY PARTS LIST - 6 oz. KETTLE ASSEMBLY #1866, #2085, #2086, #2656 #2656UW ALL MODELS SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE... - Page 15 49362 Dump Handle Spacer 77080NM Bushing, Conduit 49593 #8-32 x 5/8" Screw Kettle Lead-In Cord Assembly * 49328 * Includes Item No. 24-26, 28-31, 33, and 35 #1866, #2085, #2086, #2656 #2656UW ALL MODELS SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
- Page 16 WWW.CONCESSIONPALACE.COM Popcorn Machines PARTS LIST - 6 oz. KETTLE ASSEMBLY Models #1866, #2656 and #2656UW Item No. Part No. Description 49434 6 Oz. Kettle Complete 49435 6 Oz. Lid & Agitator Assembly 49433 6 Oz. Kettle Bottom Only 49701 External Snap Ring...
-
Page 17: Electrical Schematic
WWW.CONCESSIONPALACE.COM Popcorn Machines ELECTRICAL SCHEMATIC #1866, #2085, #2086, #2656 #2656UW ALL MODELS SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE... -
Page 18: Warranty
Popcorn Machines WARRANTY WE WARRANT to the original purchaser the Gold Medal equipment sold by us to be free from defects in material or workmanship under normal use and service. Our obligation under this warranty shall be limited to the repair or replacement of any...
