Part
No.49064
P-60 / 60 Special

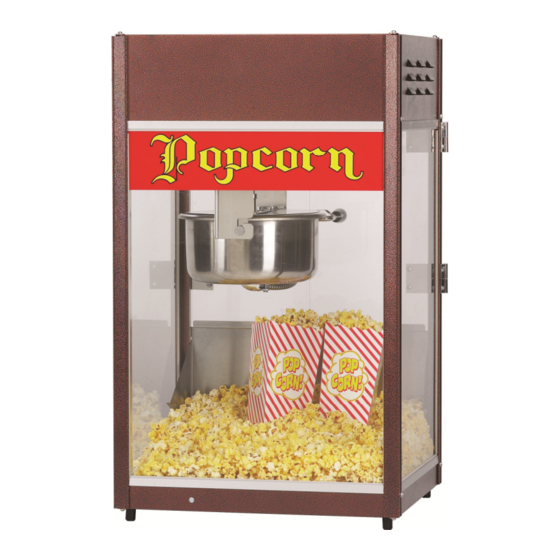

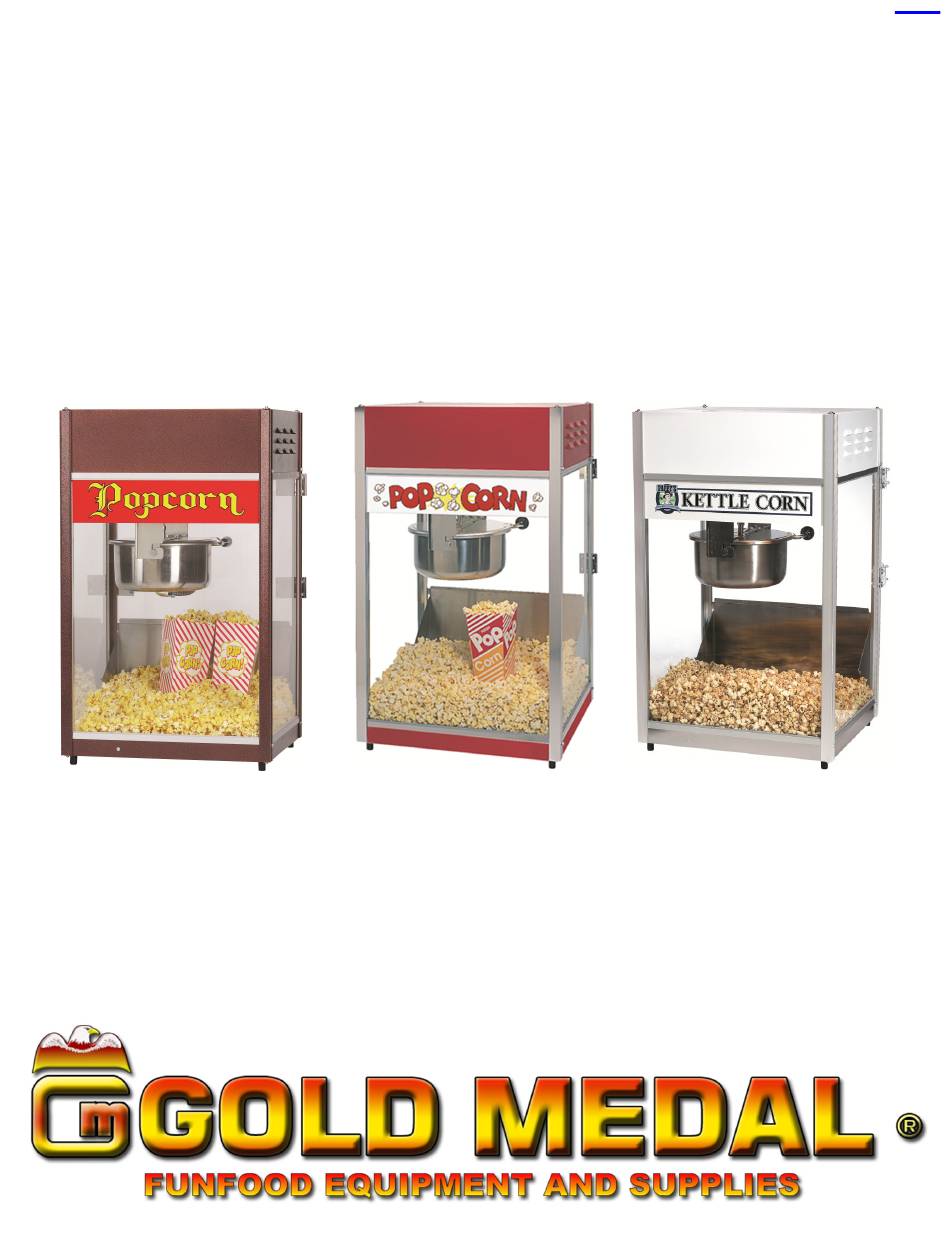

Instruction Manual
Model No.1866, 1866XJ, 2085, 2086, 2656, 2656KC
1866, 1866XJ, 2086
2085, 2656
2656KC
Cincinnati, OH 45241-4807 USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P-60 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gold Medal P-60

Summary of Contents for Gold Medal P-60

  • Page 1 Part No.49064 P-60 / 60 Special Instruction Manual Model No.1866, 1866XJ, 2085, 2086, 2656, 2656KC 1866, 1866XJ, 2086 2085, 2656 2656KC Cincinnati, OH 45241-4807 USA...

  • Page 2: Safety Precautions

    P-60/60 Special Model No. 1866, 1866XJ, 2085, 2086, 2656, 2656KC SAFETY PRECAUTIONS http://www.gmpopcorn.com Page 2...

  • Page 3: General Instructions

    P-60/60 Special Model No. 1866, 1866XJ, 2085, 2086, 2656, 2656KC GENERAL INSTRUCTIONS INSPECTION OF SHIPMENT Unpack all cartons and check thoroughly for any damage that may have occurred during transit. Damage claims should be filed immediately with the transportation company.

  • Page 4: Controls And Their Functions

    P-60/60 Special Model No. 1866, 1866XJ, 2085, 2086, 2656, 2656KC OPERATING INSTRUCTIONS CONTROLS AND THEIR FUNCTIONS LIGHT AND WARMER SWITCH: Turns on the heat to the bottom corn pan and heat light. KETTLE MOTOR SWITCH: Turns on the motor which drives the kettle agitator.

  • Page 5: Care And Cleaning

    P-60/60 Special Model No. 1866, 1866XJ, 2085, 2086, 2656, 2656KC CARE AND CLEANING KETTLE 1. Each time you finish a series of popping, allow the kettle to cool down and wipe the outside of the kettle with a soft cloth to remove any oil drippings left behind.

  • Page 6: Maintenance Instructions

    P-60/60 Special Model No. 1866, 1866XJ, 2085, 2086, 2656, 2656KC MAINTENANCE INSTRUCTIONS http://www.gmpopcorn.com Page 6...

  • Page 7: Ordering Spare Parts

    P-60/60 Special Model No. 1866, 1866XJ, 2085, 2086, 2656, 2656KC ORDERING SPARE PARTS 1. Identify the worn or broken part by checking it with the illustrations and parts list. 2. When ordering parts, include part number, part name, and quantity required.
  • Page 8 P-60/60 Special Model No. 1866, 1866XJ, 2085, 2086, 2656, 2656KC KETTLE BREAKDOWN Kettle Part No. 56000 Relevant Models: 1866, 2085, 2086, 2656 Number Part No. Description Quantity 47060 Spur Gear 43434 Agitator Bearing Hub 47106 Needle Bearing 41742 Set Screw...
  • Page 9 P-60/60 Special Model No. 1866, 1866XJ, 2085, 2086, 2656, 2656KC KETTLE BREAKDOWN Kettle Part No. 49434KC (Model 2656KC) 49434XJN (Model 1866XJ) ITEM PART NO. MODEL(S) PART NAME QTY. 47060 BOTH Spur Gear 43434 BOTH Agitator Bearing Hub 47106 BOTH Needle Bearing...

  • Page 10: Cabinet Breakdown

    P-60/60 Special Model No. 1866, 1866XJ, 2085, 2086, 2656, 2656KC CABINET BREAKDOWN Models No. ALL (2085-2656 Shown) 13-14 http://www.gmpopcorn.com Page 10...
  • Page 11 P-60/60 Special Model No. 1866, 1866XJ, 2085, 2086, 2656, 2656KC CABINET BREAKDOWN Model No. ALL (2085-2656 Shown) 18-29 21-28 http://www.gmpopcorn.com Page 11...
  • Page 12 P-60/60 Special Model No. 1866, 1866XJ, 2085, 2086, 2656, 2656KC CABINET BREAKDOWN PARTS LIST ITEM PART NO. MODEL(S) PART NAME QTY. 49452 2085-2656 Red Top Pan 49587 2656KC Pappy's Top Pan 49769 2086-1866-1866XJ Dome 1866/2086 47120 Knob Lid Left 75267...
  • Page 13 P-60/60 Special Model No. 1866, 1866XJ, 2085, 2086, 2656, 2656KC CABINET BREAKDOWN ITEM PART NO. MODEL(S) PART NAME QTY. 49480 Light Shield Conical 47047 Lamp Holder 49330 15A TWST LC Kettle Recpt 48501 Small Switch Box 1866-2085-2086- 47038 Kettle Drive Motor...

  • Page 14: Wiring Diagram

    P-60/60 Special Model No. 1866, 1866XJ, 2085, 2086, 2656, 2656KC WIRING DIAGRAM Model No. 1866 http://www.gmpopcorn.com Page 14...
  • Page 15 P-60/60 Special Model No. 1866, 1866XJ, 2085, 2086, 2656, 2656KC WIRING DIAGRAM Model No. 1866XJ http://www.gmpopcorn.com Page 15...
  • Page 16 P-60/60 Special Model No. 1866, 1866XJ, 2085, 2086, 2656, 2656KC WIRING DIAGRAM Model No. 2085-2086 http://www.gmpopcorn.com Page 16...
  • Page 17 P-60/60 Special Model No. 1866, 1866XJ, 2085, 2086, 2656, 2656KC WIRING DIAGRAM Model No. 2656KC http://www.gmpopcorn.com Page 17...

  • Page 18: Warranty

    © 2013 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.

This manual is also suitable for:

P 60 special18661866xj208520862656 ... Show all

Table of Contents
