Related Manuals for Gold Medal Astro Pop 2023ETS
Summary of Contents for Gold Medal Astro Pop 2023ETS

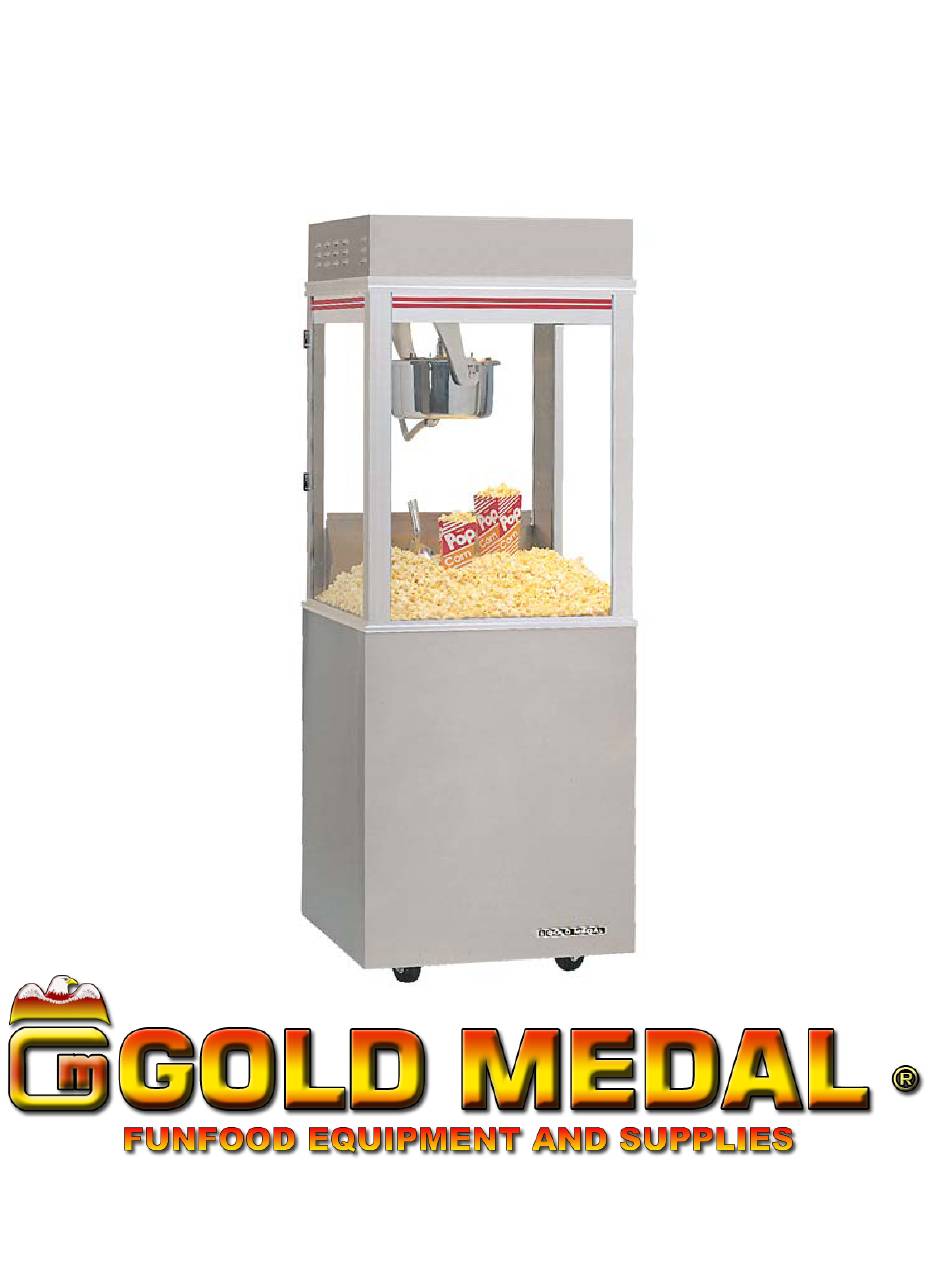

- Page 1 Astro Pop Part No. 67837 Instruction Manual Model No. 2023ETS, 2023ETSB Cincinnati, OH 45241-4807 USA...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS Astro Pop Model No. 2023ETS, 2023ETSB http://www.gmpopcorn.com Page 2... -
Page 3: Installation Instructions
Failure to wire properly will void the warranty and may result in damage to the machine. It is Gold Medal® Products Company’s recommendation that this machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to safety concerns and may cause sacrificed and/or reduced performance. -
Page 4: Controls And Their Functions
CONTROLS AND THEIR FUNCTIONS Astro Pop Model No. 2023ETS, 2023ETSB OIL SYSTEM MASTER SWITCH Sends power to the oil pump, either the Bucket Pump or Bag-in-Box models. The warmer/blower on the oil pump is activated. The warmer/blower on the oil pump will keep coconut popping oil in liquid form if the doors on the base are kept closed. -
Page 5: Amount Of Popcorn And Oil
RECOMMENDED AMOUNTS The 16 oz. Astro-Pop is equipped with a 16 oz. corn measure cup (Part No. 68050). Gold Medal® Products Company recommends the use of flavored and colored coconut oil. Coconut oil does not leave black deposits in the kettle like other oils. -
Page 6: Care And Cleaning
1 hour before attempting to clean. CAUTION: 2. Every night, mix a gallon of Heat’n Kleen solution (Gold Medal® Part No. 2095) – (2 tablespoons per gallon of water). Add enough solution to fill the kettle 1/2" deep. -
Page 7: Filter Cleaning Instructions
FILTER CLEANING INSTRUCTIONS Astro Pop Model No. 2023ETS, 2023ETSB CLEANING THE FILTERS Your popcorn machine is equipped with an efficient and durable filtration system. The filter (Part No. 69850) should be cleaned every 1-2 weeks to maintain maximum efficiency. Follow the steps below for proper filter cleaning: The filter is located on the inside of the popcorn machine directly above the popping kettle. -
Page 8: Maintenance Instructions
MAINTENANCE INSTRUCTIONS Astro Pop Model No. 2023ETS, 2023ETSB http://www.gmpopcorn.com Page 8... -
Page 9: Ordering Spare Parts
2. When ordering parts, include part number, part name, and quantity required. 3. Include your model name and machine serial number (found on nameplate) with your order. 4. Address orders to: Parts Department Gold Medal® Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807... -
Page 10: Temperature Control
TEMPERATURE CONTROL Astro Pop Model No. 2023ETS, 2023ETSB The Astro-Pop 16Oz has an electronic kettle control with 2 thermocouples, one for control and one for limit. There are no mechanical thermostats in this kettle. There are (4) factory adjustments on the control: •... -
Page 11: Kettle Assembly
KETTLE ASSEMBLY Astro Pop Model No. 2023ETS, 2023ETSB (Pg. 11-12) Part No. 55166E 55176 Kettle Lead Assy Item Part No. Description Qty. 41120 Rear Lid 41123 Front Lid 41081 Kettle Shell Assy 47102 Dump Handle Assy 47691 Thumb Screw 41598 16Oz Kettle Gasket 46311 1/4"... - Page 12 KETTLE ASSEMBLY Astro Pop Model No. 2023ETS, 2023ETSB (Continued) Part No. 55166E 8, 4 43434 Agitator Bearing Hub Item Part No. Description Qty. 47106 Needle Bearing 47060 Spur Gear 47751 1/4-20 x 3/16 Set Screw 41093 Agitator Shaft Assy 41239 Oil Tube With Funnel 41086 16Oz Crossbar Assy...
-
Page 13: Cabinet Assembly
CABINET ASSEMBLY Astro Pop Model No. 2023ETS, 2023ETSB (Pg. 13-15) 7, 8 2, 3 10, 11 41345NL Dome Item Part No. Description Qty. 41350 Male Hinge Short Right 41351 Female Hinge Long Right 41014 Astro Door 41017 Drop Pannel Assy 41013 Door Knob 47561... - Page 14 CABINET ASSEMBLY Astro Pop Model No. 2023ETS, 2023ETSB (Continued) 4, 8 10, 11 17451 Rocker Push Button Box Item Part No. Description Qty. 17450 5 Hole Switch Box 69850 Box Filter (Not Shown) 47176 65W Coated Reflector Flood 67194 Gear Block Assy 47262 Hanger Arm Front 47228...
- Page 15 CABINET ASSEMBLY Astro Pop Model No. 2023ETS, 2023ETSB (Continued) 47356 115V Motor Warmer Item Part No. Description Qty. 61021 Female Cord 61020 Male Cord 41113 Blower Wheel **NOTE: Rubber pad is not actually white. The White line displays the location of the 47355 120V, 400W Heat Element black rubber pad (Part No.
-
Page 16: Base Assembly
BASE ASSEMBLY Astro Pop Model No. 2023ETS, 2023ETSB 2023ETSB Only 12, 13 11, 14 41102 Bottom Corn Pan Item Part No. Description Qty. 41838 Old Maid Pan 41499 Wire Harness For Oil Pump 41215 Bin Retainer Assy 41778 Corn Bin 11, 14 12, 13 37326... - Page 17 TOP MOTOR PLATE ASSEMBLY Astro Pop Model No. 2023ETS, 2023ETSB 11, 14 47047 Lamp Holder Item Part No. Description Qty. 48018 120V 60CY Exaust Blower 47038 120V Kettle Drive Motor 41001 Temperature Control 55219 30A DPST 120V Relay 62306 Kettle Receptacle Assy 47364 15 Amp Circuit Breaker 55222...
-
Page 18: Final Notes
If your machine is equipped with the Flexi-Pop option, the small indicator on the Kettle Stir Motor is utilized to indicate that the circuit breaker has tripped. In the event of a tripped circuit breaker, please contact Gold Medal® Products service department. The circuit breaker is not accessible to the operator. -
Page 19: Wiring Diagram
WIRING DIAGRAM Astro Pop Model No. 2023ETS, 2023ETSB http://www.gmpopcorn.com Page 19... -
Page 20: Warranty
Model No. 2023ETS, 2023ETSB WARRANTY WE WARRANT to the original purchaser the Gold Medal equipment sold by us to be free from defects in material or workmanship under normal use and service. Our obligation under this warranty shall be limited to the repair or replacement of any...
