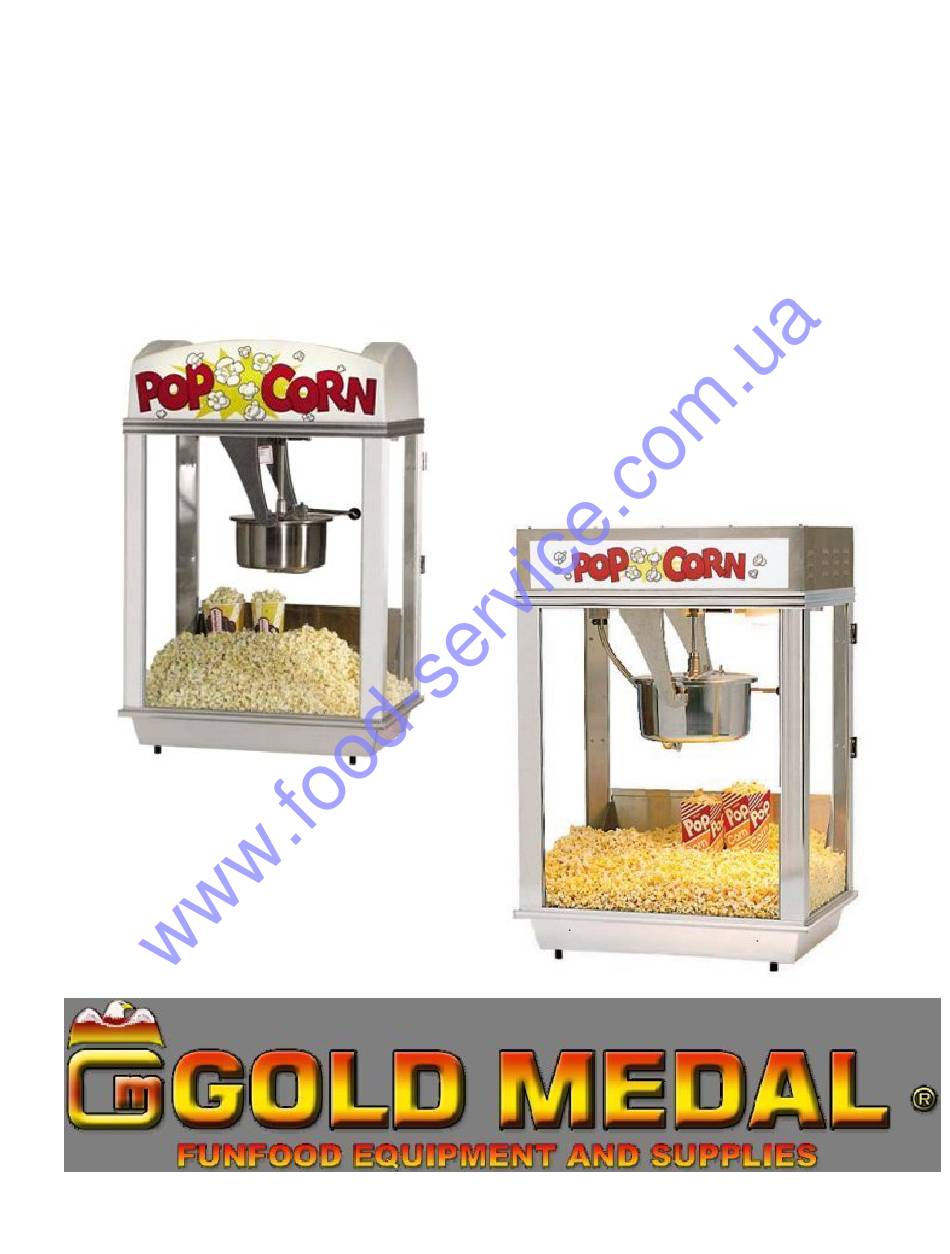

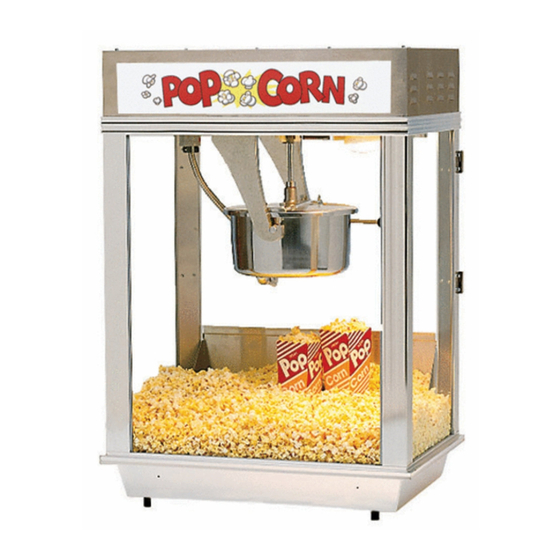

- Page 1 Part No. 67860EX Issued: September 2009 Whiz Bang Models #2003EX, 2003BNX, 2003STX, 2005EX, 2005BNX, 2005STX Instruction Manual Cincinnati, OH 45241-4807 USA...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS... -
Page 3: Installation Instructions
Failure to wire properly will void the warranty and can result in damage to the heat elements, light, motor and etc. It is Gold Medal Products Company’s recommendation that this machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to safety reasons and the popper’s performance will be sacrificed/reduced. - Page 4 Whiz Bang Unimaxx OPERATING INSTRUCTIONS Controls and their functions LIGHT SWITCH Turns on all of the lights, interior, and dome on your popcorn machine. WARMER Switch Operates the elements for the heated corn pan. KETTLE HEAT SWITCH Operates the heating elements in the popping kettle.
- Page 5 Whiz Bang Unimaxx POPPING CORN Amount of popcorn and oil Your new popper is equipped with a corn, salt, and oil measure. We recommend flavored and colored coconut oil. Popcorn popped in coconut oil stays fresh longer and does not leave black deposits in your kettle like other oils.
-
Page 6: Cleaning Instructions
2. Ammonia cleaners will damage the plastic doors. Use only non-ammonia cleaners, such as Gold Medal’s – Watchdog Glass Cleaner – item number 2588. Models 2003EX, 2003BNX, 2003STX, 2005EX, 2005BNX... -
Page 7: Maintenance Instructions
Whiz Bang Unimaxx MAINTENANCE INSTRUCTIONS Models 2003EX, 2003BNX, 2003STX, 2005EX, 2005BNX... -
Page 8: Troubleshooting
Whiz Bang Unimaxx TROUBLESHOOTING Below are some common issues you may encounter, along with basic trouble shooting steps. Experiencing long popping cycles If your pop cycle is longer than 4 minutes, it can be the result of several things: LOW VOLTAGE - If the machine is operated on low voltage, this could cause the kettle not to reach the proper operating temperature. -
Page 9: Ordering Spare Parts
Whiz Bang Unimaxx ORDERING SPARE PARTS 1. Identify the needed part by checking it against the photos, illustrations, and/or the parts list. 2. When ordering, please include part number, part name, and quantity needed. 3. Please include the machine’s model name, serial number, and date of manufacture (located on the machine nameplate) with your order. -
Page 10: Cabinet Breakdown
Whiz Bang Unimaxx Cabinet Breakdown Magnetic Catch Bracket p/n 41340 Magnetic Catch p/n 47561 Kettle Receptacle 15A Twist Lock p/n 49330 Kettle Plug 15A Twist Lock p/n 49329 Kettle Lead Assy. p/n 61053 Connector 90 Degree p/n 46241 Hardware Kits for Doors (See p. - Page 11 Whiz Bang Unimaxx Complete Hardware Complete Hardware Kit for LH Door Kit for RH Door p/n 47054 p/n 47055 Door Hardware Kits Cabinet Interior – Ceiling Components Spur Gear (2) p/n 47060 10-32 x 3/16 Set Gear Block Assy. Screw for Spur...
- Page 12 Whiz Bang Unimaxx Filter p/n 47043 Bottom Corn Pan Assembly – Part Number 47598 Complete Bottom Corn Pan Assembly For 2003EX Models: Everything Shown Below, Including Female Cordset p/n 61021. Heat Element 230V, p/n 44075 Male Cordset Cover, Corn Pan...
-
Page 13: Kettle Shell Components
Whiz Bang Unimaxx Heater Blower Components For 2005EX And 2005BNX Heat Element 250W Tubular P/N 61184EX Thermostat P/N 47385 Warmer Fan P/N 48037 Blower Plug and Cord P/N 47199 (Above Items Not Shown In Illustration) Kettle Shell Components 8-32 x ½” (4) - Page 14 Whiz Bang Unimaxx Lid And Agitator Assy. Spur Gear Set Screw for Spur Gear p/n 47060 10-32 x 3/16 p/n 41742 Needle Bearing p/n 47106 Set Collar (2) (Same above and below lid) p/n 47326 Kettle Lid Rear p/n 47119...
- Page 15 Whiz Bang Unimaxx Unixmaxx 12/14 OZ Kettle Specification – UNIMAXX 12/14 OZ KETTLE P/N 58220 - 120V P/N 58220EX - 230V LID AND AGITATOR PARTS KETTLE PARTS PART PART DESCRIPTION DESCRIPTION NUMBER NUMBER 47707 DUMP HANDLE 58011 120V KETTLE W/ELEMENTS...
- Page 16 Whiz Bang Unimaxx Top - Motor Plate Assy. Lamp Holder Light Shield 75 Watt Flood Light 20W Fluorescent Kettle Drive Motor, 20 W Assembly 230V p/n 47067 Fluorescent p/n 47047 p/n 49480 p/n 49033 Bulb 20 Watt p/n 77002EX p/n 16264...
- Page 17 Whiz Bang Unimaxx Electrical Schematic – 2003EX Models 2003EX, 2003BNX, 2003STX, 2005EX, 2005BNX...
- Page 18 Whiz Bang Unimaxx Electrical Schematic – 2005EX Models 2003EX, 2003BNX, 2003STX, 2005EX, 2005BNX...
-
Page 19: Warranty
Whiz Bang Unimaxx WARRANTY WE WARRANT to the original purchaser the Gold Medal equipment sold by us to be free from defects in material or workmanship under normal use and service. Our obligation under this warranty shall be limited to the repair or replacement of any...
