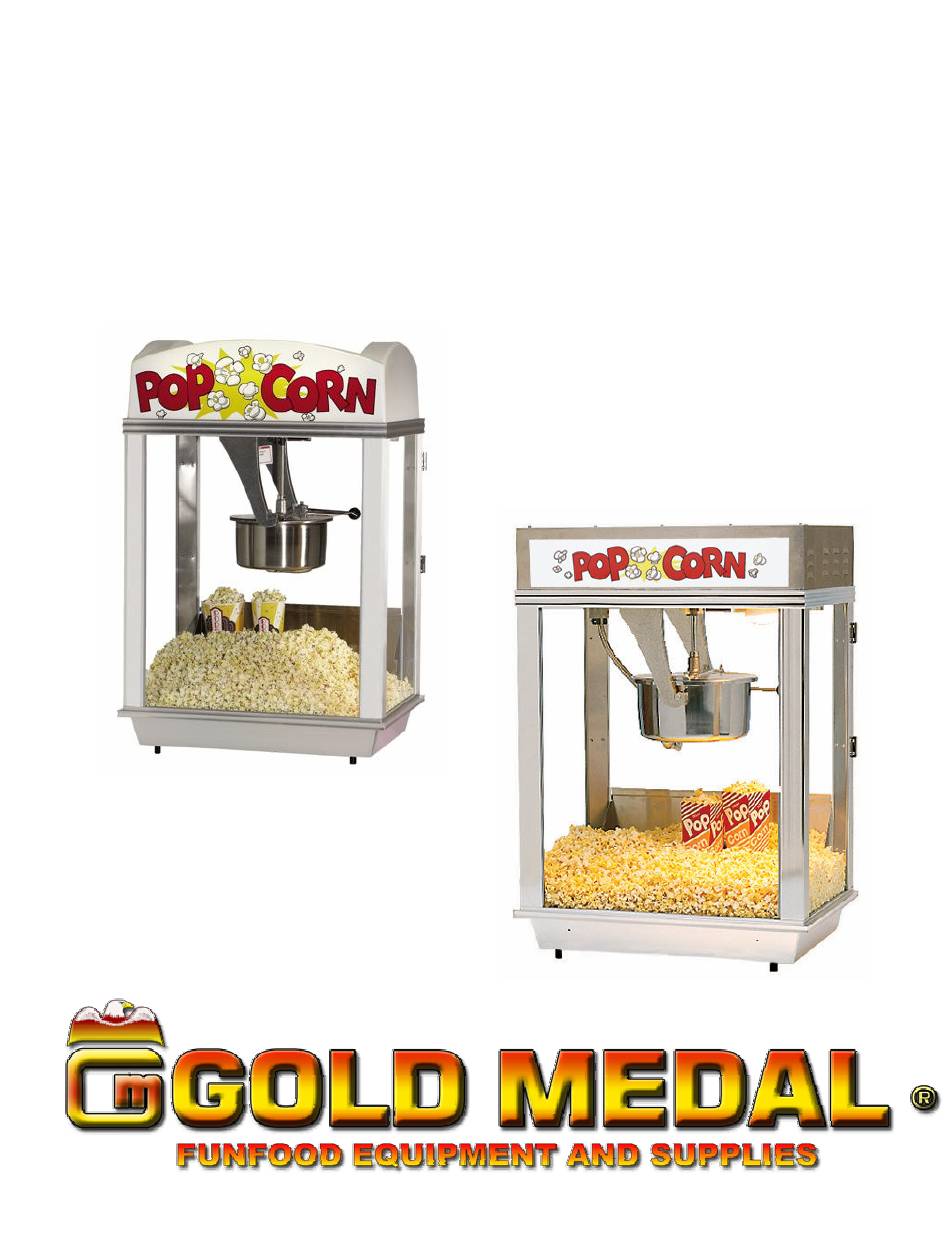

- Page 1 Part No. 67860 Issued: November 2008 Whiz Bang Models #2003, 2003BN, 2003ST, 2005, 2005BN, 2005ST Instruction Manual Cincinnati, OH 45241-4807 USA...
-
Page 2: Table Of Contents
Whiz Bang Unimaxx Table of Contents Safety Precautions ..............Installation Instructions .............. Operating Instructions ............Cleaning Instructions ..............Maintenance Instructions ........................... Troubleshooting ..............Ordering Spare Parts System Parts Location Section ........11-17 ........Cabinet Breakdown & Door Hardware 11-12 ............ -
Page 3: Safety Precautions
SAFETY PRECAUTIONS... -
Page 4: Installation Instructions
It is Gold Medal Products Company’s recommendation that this machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to safety reasons and the popper’s performance will be sacrificed/reduced. -
Page 5: Operating Instructions
Whiz Bang Unimaxx OPERATING INSTRUCTIONS Controls and their functions LIGHT SWITCH Turns on all of the lights, interior, and dome on your popcorn machine. WARMER Switch Operates the elements for the heated corn pan. KETTLE HEAT SWITCH Operates the heating elements in the popping kettle. KETTLE MOTOR SWITCH Operates the kettle agitator motor. - Page 6 Whiz Bang Unimaxx POPPING CORN AMOUNT OF POPCORN AND OIL Your new popper is equipped with a corn, salt, and oil measure. We recommend flavored and colored coconut oil. Popcorn popped in coconut oil stays fresh longer and does not leave black deposits in your kettle like other oils.
-
Page 7: Cleaning Instructions
2. Ammonia cleaners will damage the plastic doors. Use only non-ammonia cleaners, such as Gold Medal’s – Watchdog Glass Cleaner – item number 2588. Models 2003, 2003BN, 2003ST, 2005,2005BN... -
Page 8: Maintenance Instructions
Whiz Bang Unimaxx MAINTENANCE INSTRUCTIONS Models 2003, 2003BN, 2003ST, 2005,2005BN... -
Page 9: Troubleshooting
Whiz Bang Unimaxx TROUBLESHOOTING Below are some common issues you may encounter, along with basic trouble shooting steps to resolve them. EXPERIENCING LONG POPPING CYCLES If your pop cycle is longer than 4 minutes, it can be the result of several things: LOW VOLTAGE - If the machine is operated on low voltage, this could cause the kettle not to reach the proper operating temperature. -
Page 10: Ordering Spare Parts
3. Please include the machine’s model name, serial number, and date of manufacture (located on the machine nameplate) with your order. 4. Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 or, place orders at:... -
Page 11: System Parts Location Section
Whiz Bang Unimaxx Cabinet Breakdown Magnetic Catch Bracket p/n 41340 Magnetic Catch p/n 47561 Kettle Receptacle 15A Twist Lock p/n 49330 Kettle Plug 15A Twist Lock p/n 49329 12/14 oz Unimaxx Kettle Complete p/n 58220 Kettle Lead Assy. p/n 61053 Connector 90 Degree p/n 46241 Hardware Kits for... -
Page 12: Cabinet Interior-Ceiling
Whiz Bang Unimaxx Complete Hardware Complete Hardware Kit for LH Door Kit for RH Door p/n 47054 p/n 47055 Door Hardware Kits Cabinet Interior – Ceiling Components Spur Gear (2) p/n 47060 10-32 x 3/16 Set Gear Block Assy. Screw for Spur p/n 67194 Gear (2) p/n 41742 Hanger Arm... -
Page 13: Bottom Corn Pan Assembly
Whiz Bang Unimaxx Filter p/n 47043 Bottom Corn Pan Assembly – Part Number 47598 Complete Bottom Corn Pan Assembly For 2003 Models: Everything Shown Below, Including Female Cordset p/n 61020. Heat Element 115V, p/n 44026 Male Cordset Cover, Corn Pan p/n 61020 Conduit p/n 47653... -
Page 14: Kettle Shell Components
Whiz Bang Unimaxx Heater Blower Components For 2005 And 2005BN Heat Element 250W Tubular P/N 61184 Thermostat P/N 47385 Warmer Fan P/N 48018 Blower Plug And Cord P/N 47199 (Above Items Not Shown In Illustration) Kettle Shell Components 8-32 x ½” (4) Countersunk Phillips Flathead Screws p/n 20066... -
Page 15: Lid And Agitator Assembly
Whiz Bang Unimaxx Lid And Agitator Assy. Spur Gear Set Screw for Spur Gear p/n 47060 10-32 x 3/16 p/n 41742 Needle Bearing p/n 47106 Set Collar (2) (Same above and below lid) p/n 47326 Kettle Lid Rear p/n 47119 Set Screw for Collar (2) 1/4-20 x 3/16 p/n 47751... -
Page 16: Unimaxx 12/14 Oz Kettle Specification
Whiz Bang Unimaxx Unixmaxx 12/14 OZ Kettle Specification UNIMAXX 12/14 OZ KETTLE P/N 58220 - 120V P/N 58220EX - 230V LID AND AGITATOR PARTS KETTLE PARTS PART PART DESCRIPTION DESCRIPTION NUMBER NUMBER 47707 DUMP HANDLE 58011 120V KETTLE W/ELEMENTS 47110 KNOB FOR DUMP HANDLE 58011EX 230V KETTLE W/ELEMENTS... -
Page 17: Motor Plate Assembly
Whiz Bang Unimaxx Top - Motor Plate Assy. 20W Fluorescent Kettle Drive Motor, 20 W Lamp Holder Light Shield 75 Watt Flood Light p/n 41671 Assembly 120V p/n 47038 Fluorescent p/n 47047 p/n 49480 (EX uses p/n 49033) p/n 77002 Bulb 20 Watt p/n 16264 Exhaust Blower... -
Page 18: Electrical Schematic
Whiz Bang Unimaxx Electrical Schematic – 2003 Models 2003, 2003BN, 2003ST, 2005,2005BN... - Page 19 Whiz Bang Unimaxx Electrical Schematic - 2005 Models 2003, 2003BN, 2003ST, 2005,2005BN...
-
Page 20: Warranty
Whiz Bang Unimaxx WARRANTY WE WARRANT to the original purchaser the Gold Medal equipment sold by us to be free from defects in material or workmanship under normal use and service. Our obligation under this warranty shall be limited to the repair or replacement of any...
