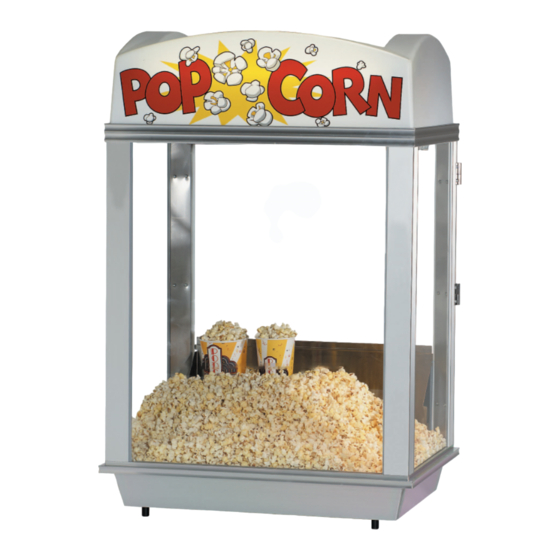

- Page 1 Instruction Manual Staging Cabinets Model No.: 2016, 2025, and 2025ST Model 2016 shown 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA © 2019 Gold Medal Products Co. Part No. 53021...
-
Page 2: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215 gmpopcorn.com... - Page 3 007_010914 Note: Improvements are always being made to Gold Medal’s equipment. This information may not be the latest available for your purposes. It is critical that you call Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions.
-
Page 4: Installation Instructions
Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862. Model Description 2016: Pop-A-Lot Staging Cabinet with white molded dome, LED lighting, and a heated corn pan crisper. 2025: Citation Staging Cabinet with white molded dome, LED lighting, and a forced air popcorn crisper. -
Page 5: Electrical Requirements
We recommend this equipment be on a dedicated and protected circuit. Failure to wire properly will void the warranty and may result in damage to the machine. It is Gold Medal Products Co.’s recommendation that this machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to safety concerns, and may cause sacrificed and/or reduced performance. -
Page 6: Controls And Their Functions
Staging Cabinets Model No.: 2016, 2025, and 2025ST OPERATING INSTRUCTIONS Controls and Their Functions POWER SWITCH Two position, ON-OFF toggle switch, provides power to the crisper system and to the cabinet lighting and sign. Power Switch Operating Instructions Follow the instructions below to operate the Staging Cabinet: 1. -
Page 7: Care And Cleaning
Gold Medal Watchdog Stainless Cleaner (Item No. 2088). DO NOT use oven cleaners or abrasive materials as they will damage parts of machine. 7. Clean glass panels with glass cleaner. Gold Medal Watchdog Glass Cleaner (Item No. 2588) is recommended. -
Page 8: Maintenance Instructions
Staging Cabinets Model No.: 2016, 2025, and 2025ST MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. DO NOT immerse any part of this equipment in water. -
Page 9: Ordering Spare Parts
Web Page: gmpopcorn.com Replacing Broken Glass Broken glass panels can be easily replaced. Gold Medal Products Co. does not ship glass. It can be obtained from a local glass shop, always purchase tempered glass. GLASS DIMENSIONS (Height x Width x Thickness) -
Page 10: Cabinet Assembly
Staging Cabinets Model No.: 2016, 2025, and 2025ST Cabinet Assembly Model 2016 shown (Model 2025ST has a Stainless Steel Dome. For Glass, see Replacing Glass section. *Power Supply Cord and Strain Relief 3*, 4 *CAUTION: If supply cord is damaged, it must be replaced by Gold Medal Products Co., its service agent, or similarly qualified... - Page 11 Staging Cabinets Model No.: 2016, 2025, and 2025ST Door Hardware Kits – Individual Component Breakdown Complete Right Hand Door Complete Left Hand Door Hardware Kit (P/N 47055) Hardware Kit (P/N 47054) (contains all parts shown above) (contains all parts shown above)
- Page 12 Staging Cabinets Model No.: 2016, 2025, and 2025ST LED Lighting - Lighted Sign Assembly – Molded Dome 200 3 Model 2025ST Sign (PN 111873) Unit has a Stainless Steel Dome and uses two LED Strips (PN 55379). Complete LED 7, 8 Light Assembly LED Light Assembly –...
-
Page 13: Cabinet Interior
Staging Cabinets Model No.: 2016, 2025, and 2025ST Cabinet Interior 200 3 Model 2016 See next page for Blower Assembly parts breakdown. Model 2025 and 2025ST Part Number Item Part Description 2016 2025, 2025ST CORN PAN ASSY 120V (assy. includes element) - Page 14 Staging Cabinets Model No.: 2016, 2025, and 2025ST Warmer Blower Assembly 202 2E – 47 56 3 Blower Assem bl y Warmer Blower Assembly (PN 47563) Female Cordset 15, 16 15, 16 (not shown here) Warmer Blower – Interior View General images shown for parts reference only.
-
Page 15: Wiring Diagram
Staging Cabinets Model No.: 2016, 2025, and 2025ST Wiring Diagram Model No. 2016, 2015, 2015ST gmpopcorn.com Page 15... - Page 16 © 2019 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
