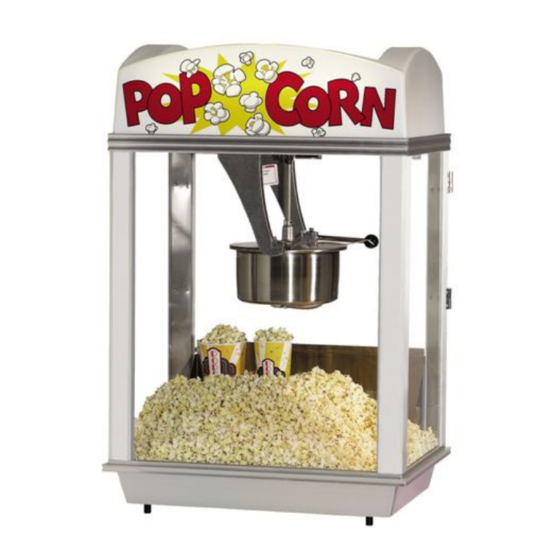

- Page 1 Part No. 67861EX Citation Models #2001EX, 2001STX, 2001BNX Instruction Manual Cincinnati, OH 45241-4807 USA...
-
Page 2: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215... - Page 3 This machine is NOT to be operated by minors. 007_010914 Note: Improvements are always being made to Gold Medal’s equipment. This information may not be the latest available for your purposes. It is critical that you call Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions.
-
Page 4: Installation Instructions
Export Citation UniMaxx Forward This manual covers the 16oz. Citation Popcorn Machine, model number 2001EX, 2001BNX, and 2001STX. Installation Instructions Inspection of Shipment: Unpack all cartons and check thoroughly for any damage that may have occurred during transit. Damage claims should be filed immediately with the transportation company. Gold Medal is not responsible for damage that occurs in transit. - Page 5 Export Citation UniMaxx FINAL PREPARATIONS The popcorn machine was adjusted, inspected, and tested before it left the factory. After removing machine from shipping box, remove all tape and packing material in or on the machine before beginning operation. OPERATING INSTRUCTIONS...
-
Page 6: Amount Of Popcorn And Oil
Export Citation UniMaxx Amount of Popcorn and Oil: The Citation popper is equipped with a sixteen ounce corn measure cup. Gold Medal Products Company recommends the use of flavored and colored coconut oil. Coconut oil does not leave black deposits in the kettle like other oils. -
Page 7: Cleaning Instructions
1. Wipe the stainless steel parts with a clean cloth and cleaner designed for stainless steel. Do not use oven cleaners, as they will damage parts of the machine. 2. Ammonia cleaners will damage the plastic doors. Use only non-ammonia cleaners, such as Gold Medal’s – Watchdog Glass Cleaner – item number 2588. Models 2001EX, 2001BNX, 2001STX... -
Page 8: Troubleshooting
Export Citation UniMaxx TROUBLESHOOTING Below are some common issues you may encounter, along with basic trouble shooting steps to resolve them. EXPERIENCING LONG POPPING CYCLES If your pop cycle is longer than 4 minutes, it can be the result of several things: LOW VOLTAGE - If the machine is operated on low voltage, this could cause the kettle not to reach the proper operating temperature. -
Page 9: Maintenance Instructions
Export Citation UniMaxx MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. DO NOT immerse any part of this equipment in water. DO NOT use excessive water when cleaning. -
Page 10: Ordering Spare Parts
Export Citation UniMaxx ORDERING SPARE PARTS 1. Identify the needed part by checking it against the photos, illustrations, and/or the parts list. 2. When ordering, please include part number, part name, and quantity needed. 3. Please include the machine’s model name, serial number, and date of manufacture (located on the machine nameplate) with your order. -
Page 11: Cabinet Breakdown
Export Citation UniMaxx Cabinet Breakdown Switch Box Magnetic Catch p/n 48543 Bracket p/n 47559 Switch Box Label p/n 48543 Magnetic Catch p/n 47561 Kettle Receptacle 20A Twist Lock p/n 47327 Kettle Plug 20A Twist Lock p/n 47363 16 oz Unimaxx... - Page 12 Export Citation UniMaxx Complete Hardware Complete Hardware Kit for LH Door Kit for RH Door p/n 47054 p/n 47055 Door Hardware Kits Individual Hardware Components Door Knob 41013 Tee Bolt 75267 LH Male Hinge 41349 8-32 X 3/8” Screws 74141...
- Page 13 Export Citation UniMaxx Filter p/n 47043 Heater Blower Components (Assembly p/n 50102EX) Thermostat Mount Heater Clamps Blower p/n 61186 p/n 61133 p/n 48037 Thermostat Heat Element 250W Blower Plug And p/n 47385 Tubular Cord p/n 61184EX p/n 47199 Models 2001EX, 2001BNX, 2001STX...
- Page 14 Export Citation UniMaxx Kettle Breakdown Kettle Complete – P/N 55199EX Dump Handle Knob Junction Box (On p/n 47110 Bottom of Kettle) p/n 47393 Junction Box Cover p/n 56108 Kettle Shell Assy. p/n 41081 Dump Handle Assy p/n 47102 Lead-in Cord Assy.
-
Page 15: Lid And Agitator Assembly
Export Citation UniMaxx Lid and Agitator Assembly Bearing Hub (Included with 41093 shaft assy.) p/n 43434 Needle Bearing p/n 47106 Spur Gear p/n 47060 Agitator Shaft Assy. (Includes 43434 Set Screw for Spur Bearing Hub) Gear p/n 41093 p/n 41742... - Page 16 Export Citation UniMaxx Top - Motor Plate Assy. Lamp Holder Light Shield 75 Watt Coated Kettle Drive Motor, Fluorescent Bulb Light Tube Flood Light 230V p/n 47067 p/n 47047 p/n 49480 (2001EX) Holder p/n 49033 p/n 16264 p/n 41020 (2001STX)
- Page 17 Export Citation UniMaxx Model No. 2001EX, 2001STX and 2001BNX Models 2001EX, 2001BNX, 2001STX...
- Page 18 © 2016 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
