SP-1

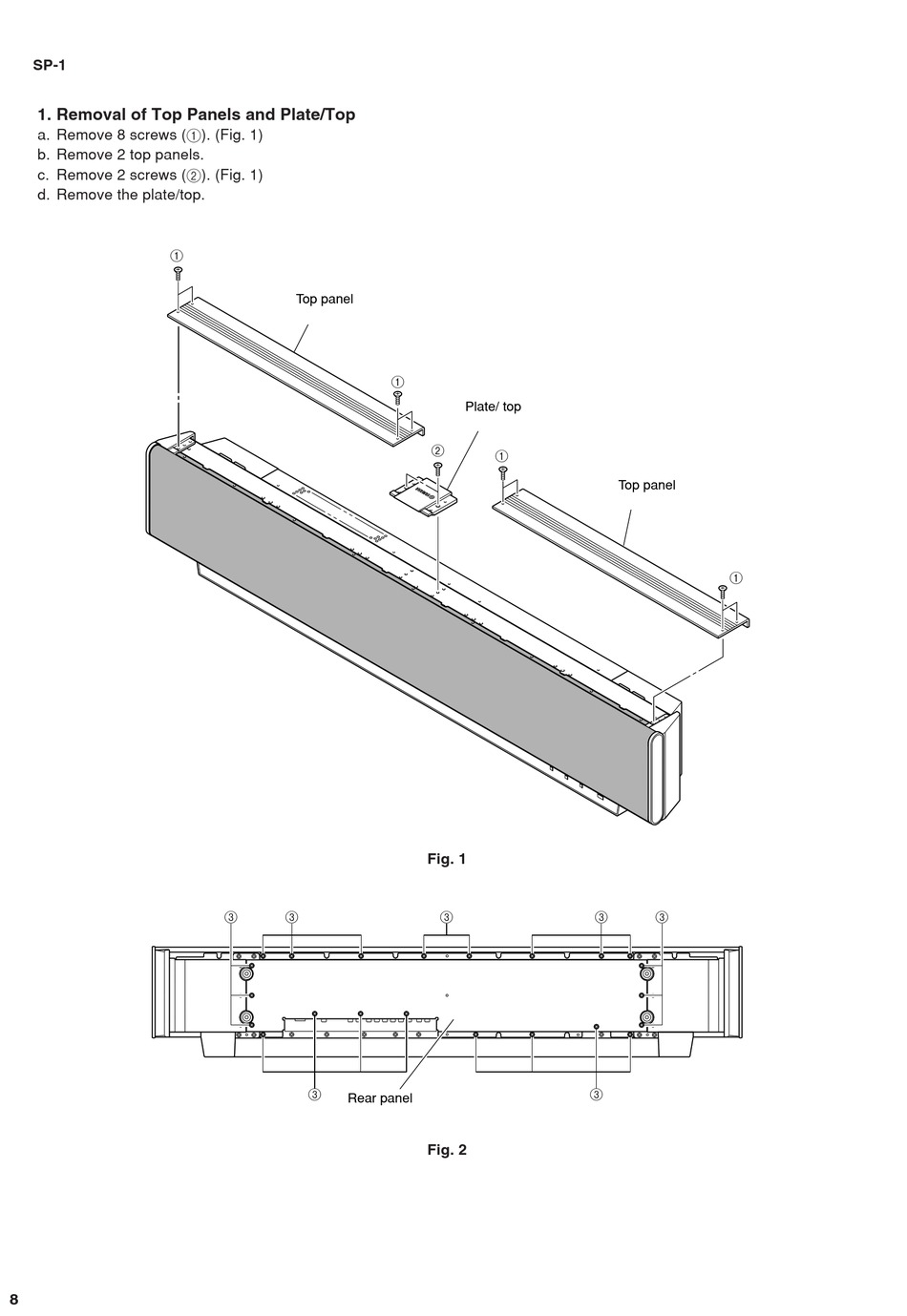

1. Removal of Top Panels and Plate/Top

a. Remove 8 screws (1). (Fig. 1)
b. Remove 2 top panels.
c. Remove 2 screws (2). (Fig. 1)
d. Remove the plate/top.
1
8
Top panel
1
3 3
3
Rear panel
1. トップパネル、プレート/トップの外し方
Plate/ top
2
1
Fig. 1
3 3
3
Fig. 2
Top panel
1
3
