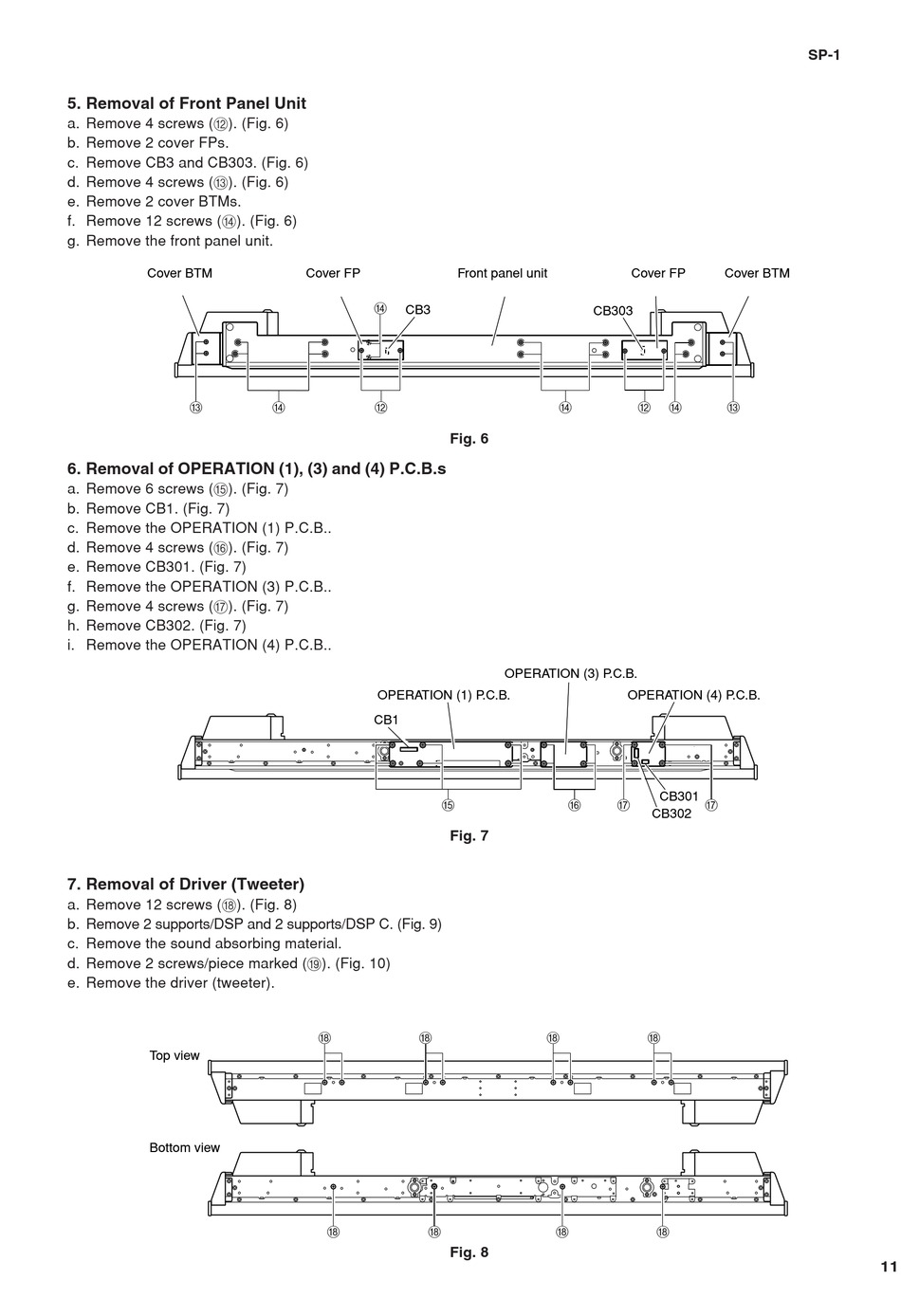

5. Removal of Front Panel Unit

a. Remove 4 screws (B). (Fig. 6)
b. Remove 2 cover FPs.
c. Remove CB3 and CB303. (Fig. 6)
d. Remove 4 screws (C). (Fig. 6)
e. Remove 2 cover BTMs.
f. Remove 12 screws (D). (Fig. 6)
g. Remove the front panel unit.
Cover BTM
C

6. Removal of OPERATION (1), (3) and (4) P.C.B.s

a. Remove 6 screws (E). (Fig. 7)
b. Remove CB1. (Fig. 7)
c. Remove the OPERATION (1) P.C.B..
d. Remove 4 screws (F). (Fig. 7)
e. Remove CB301. (Fig. 7)
f. Remove the OPERATION (3) P.C.B..
g. Remove 4 screws (G). (Fig. 7)
h. Remove CB302. (Fig. 7)
i. Remove the OPERATION (4) P.C.B..

7. Removal of Driver (Tweeter)

a. Remove 12 screws (H). (Fig. 8)
b. Remove 2 supports/DSP and 2 supports/DSP C. (Fig. 9)
c. Remove the sound absorbing material.
d. Remove 2 screws/piece marked (I). (Fig. 10)
e. Remove the driver (tweeter).
