Removal Of Driver (Woofer) - Loewe INDIVIDUAL SOUND PROJECTOR Service Manual

8. Removal of Driver (Woofer)

a. Remove 4 screws (J). (Fig. 11)
b. Remove the side covers L/R.
c. Remove the plate/cover.
d. Remove 4 screws (K). (Fig. 11)
e. Remove the plate/side.
f. Remove 18 screws (L). (Fig. 11)
g. Remove the front grille.
h. Remove 16 screws (M). (Black color model) (Fig. 11)
i. Remove the grille ass'y. (Black color model)
j. Remove 8 screws (N). (Fig. 11)
k. Remove the driver (woofer).
J
N
Plate cover
M
L
K
K
L
Plate side
Side cover L
サイドカバー L
Driver, woofer
Grille ass'y (Black color model)
Front grille

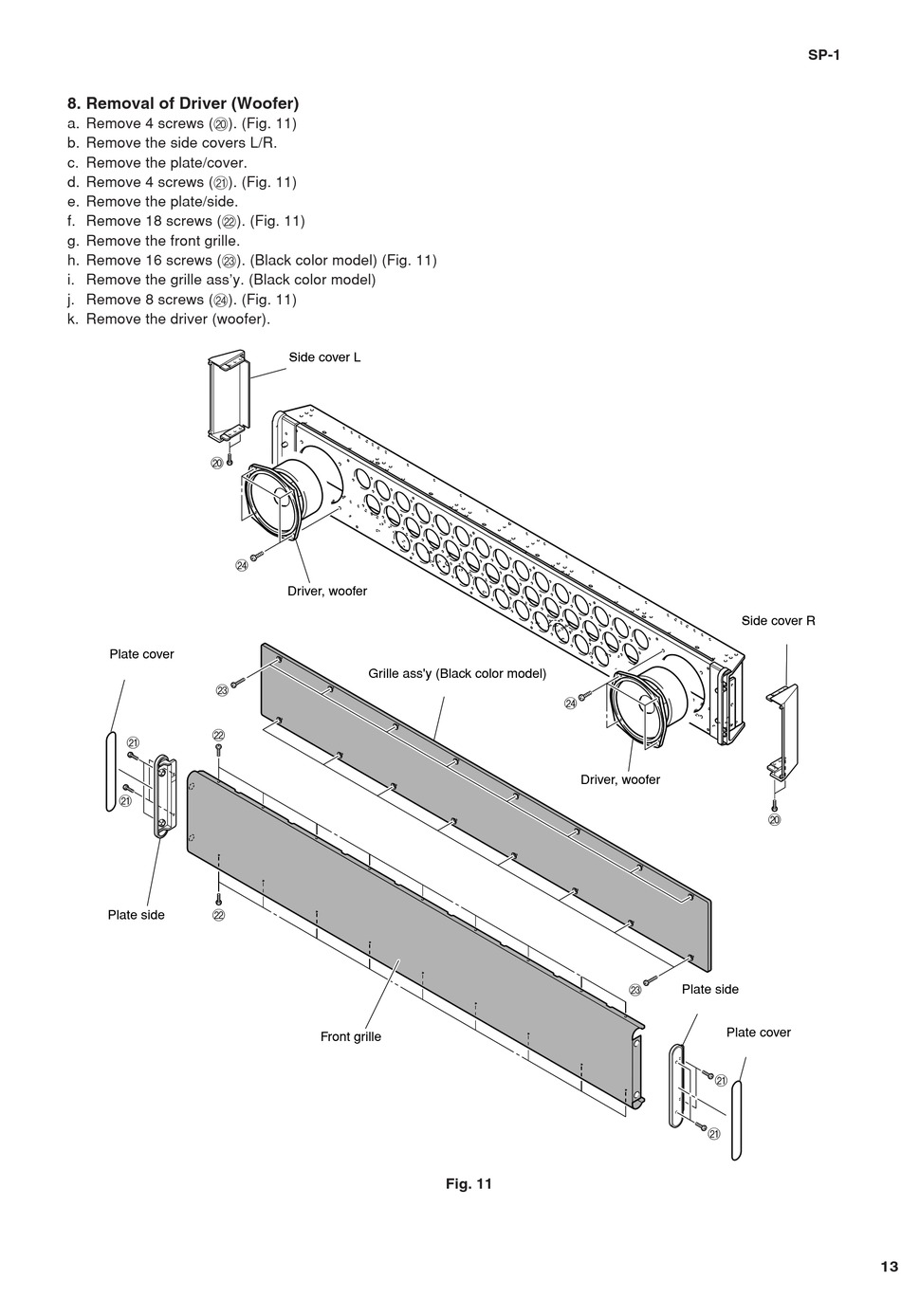

Fig. 11
