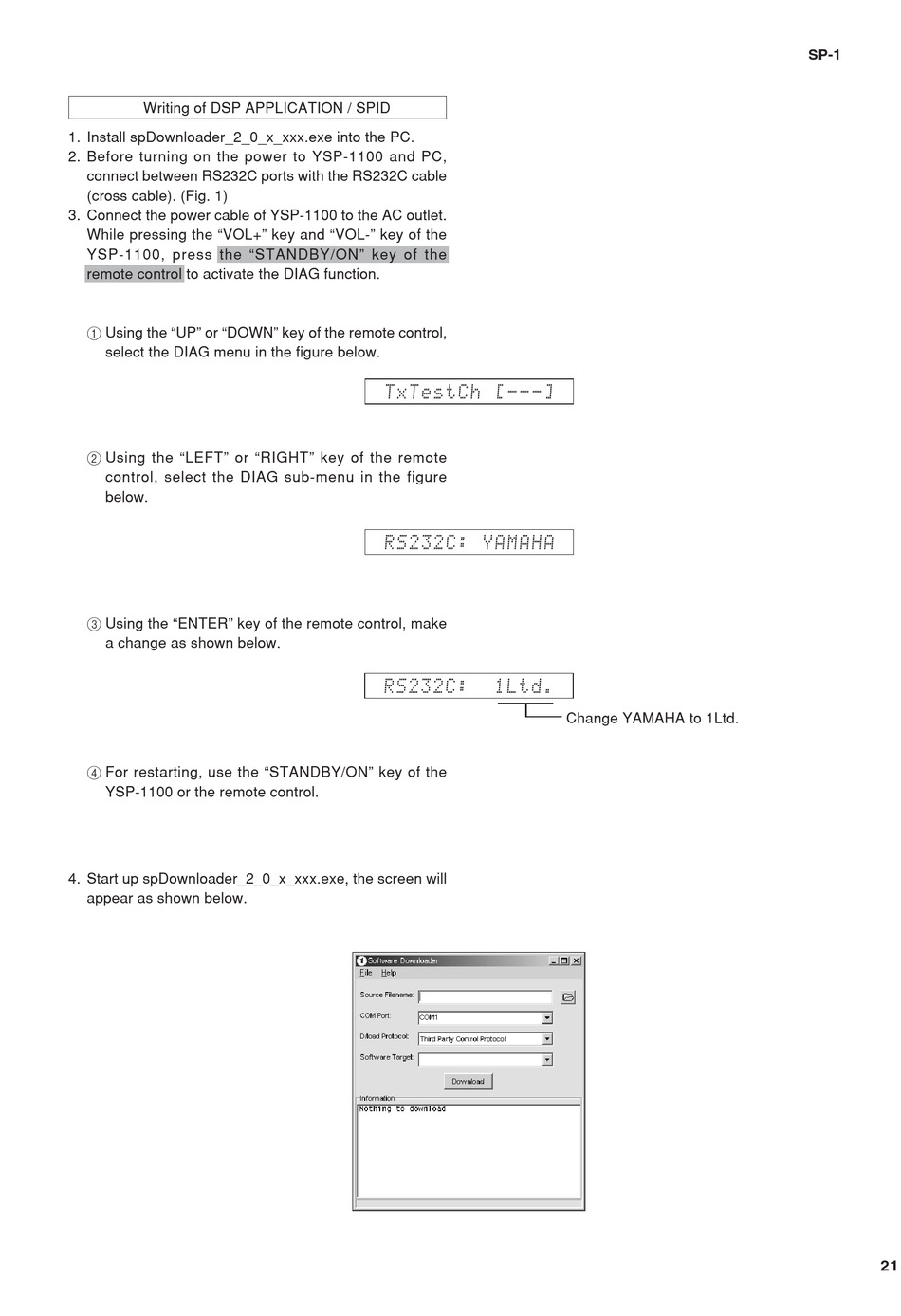

Writing of DSP APPLICATION / SPID

1. Install spDownloader_2_0_x_xxx.exe into the PC.
2. Before turning on the power to YSP-1100 and PC,
connect between RS232C ports with the RS232C cable
(cross cable). (Fig. 1)
3. Connect the power cable of YSP-1100 to the AC outlet.
While pressing the "VOL+" key and "VOL-" key of the
YSP-1100, press the "STANDBY/ON" key of the
remote control to activate the DIAG function.
1 Using the "UP" or "DOWN" key of the remote control,
select the DIAG menu in the figure below.
2 Using the "LEFT" or "RIGHT" key of the remote
control, select the DIAG sub-menu in the figure
below.
3 Using the "ENTER" key of the remote control, make
a change as shown below.
4 For restarting, use the "STANDBY/ON" key of the
YSP-1100 or the remote control.
4. Start up spDownloader_2_0_x_xxx.exe, the screen will
appear as shown below.
Change YAMAHA to 1Ltd.
