SP-1

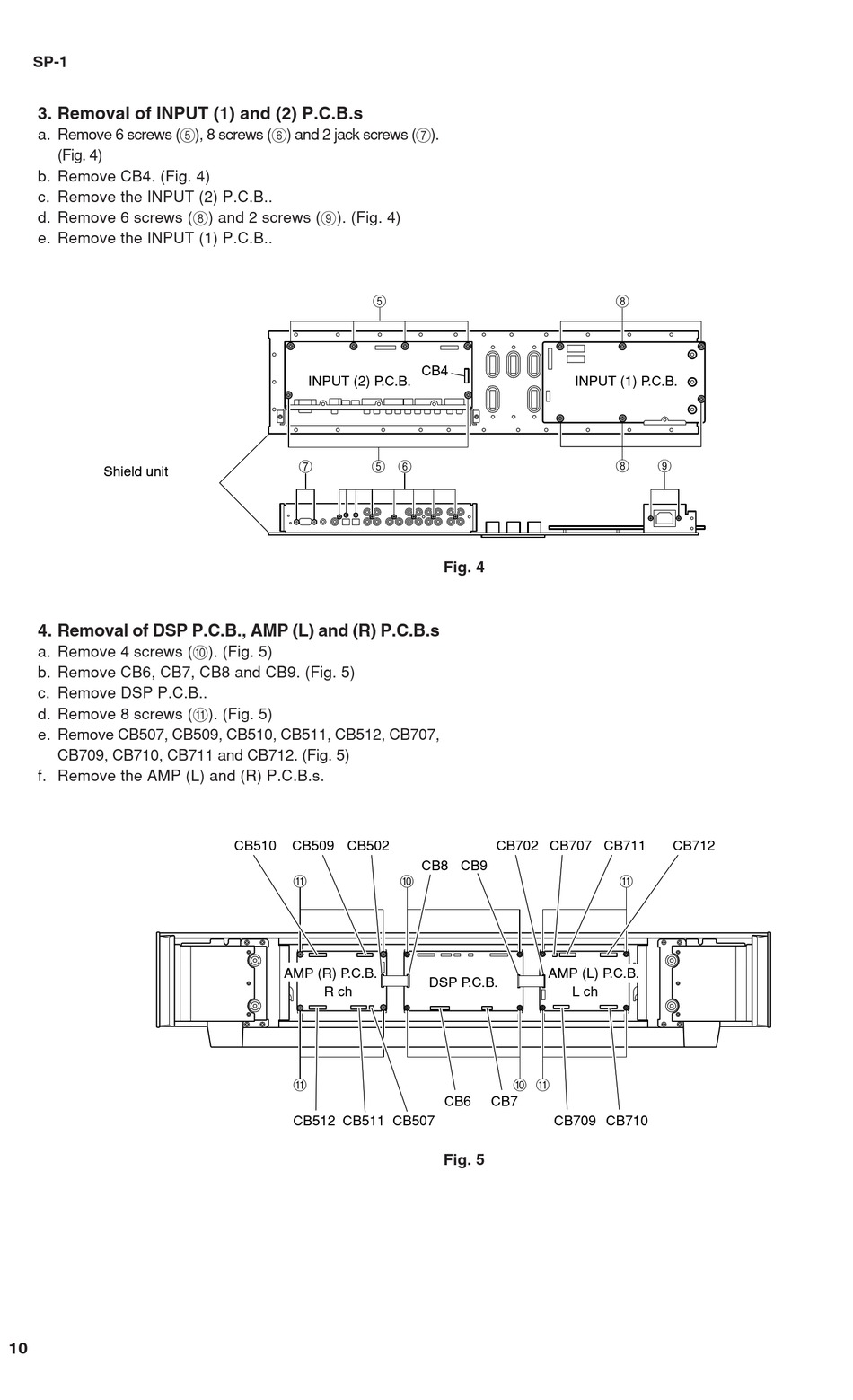

3. Removal of INPUT (1) and (2) P.C.B.s
a. Remove 6 screws (5), 8 screws (6) and 2 jack screws (7).
(Fig. 4)
b. Remove CB4. (Fig. 4)
c. Remove the INPUT (2) P.C.B..
d. Remove 6 screws (8) and 2 screws (9). (Fig. 4)
e. Remove the INPUT (1) P.C.B..
Shield unit

4. Removal of DSP P.C.B., AMP (L) and (R) P.C.B.s

a. Remove 4 screws (0). (Fig. 5)
b. Remove CB6, CB7, CB8 and CB9. (Fig. 5)
c. Remove DSP P.C.B..
d. Remove 8 screws (A). (Fig. 5)
e. Remove CB507, CB509, CB510, CB511, CB512, CB707,
CB709, CB710, CB711 and CB712. (Fig. 5)
f. Remove the AMP (L) and (R) P.C.B.s.
10
5
INPUT (2) P.C.B.
7 5 6
CB510 CB509 CB502
A 0
AMP (R) P.C.B.
R ch
A
CB512 CB511 CB507
3. INPUT （ 1） 、 （2） P.C.B.の外し方
CB4
INPUT (1) P.C.B.
Fig. 4
4. DSP P.C.B.、AMP （L） 、 （R） P.C.B.の外し方
CB702 CB707 CB711
CB8 CB9
AMP (L) P.C.B.
DSP P.C.B.
L ch
0 A
CB6 CB7
CB709 CB710
Fig. 5
8
8 9
CB712
A
