10. IF STATUS (Input function status)
Using the sub-menu, the status data is displayed one
after another in the hexadecimal notation.
During signal processing, the status before execution
of this menu is maintained.
* Numeric values in the figure example are for
reference.

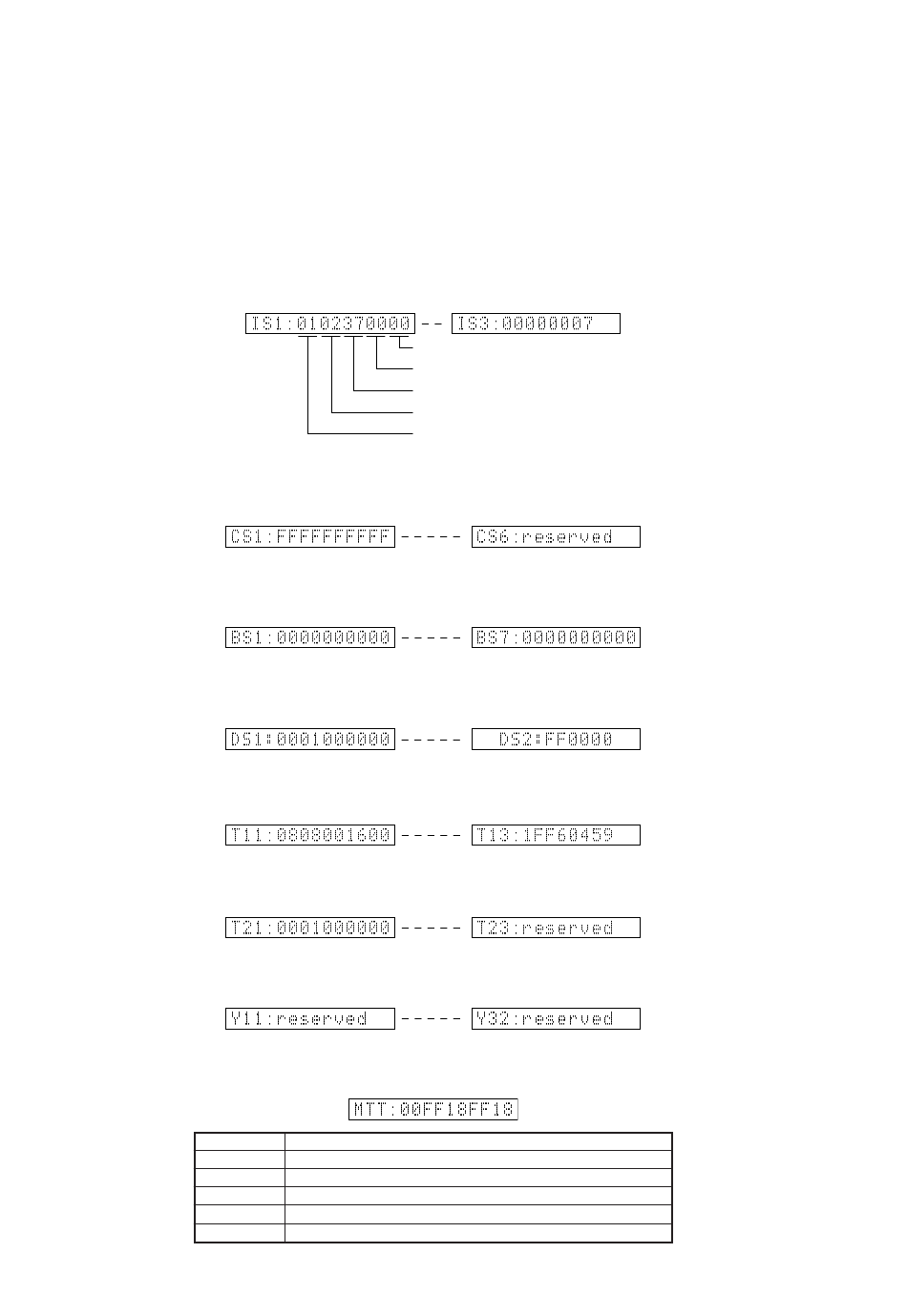

IS1-3 (Internal status):

Indicates the status information of the microprocessor.
CS1-6:
Indicates channel status information of the input signal
(IEC60958).
BS1-7:
Indicates information of the bit stream included in the dts
and AAC signal.
DS1-2:
Register information of the DIR.
T11-3:
Operation information of the DSP IC (T1).
T21-3:
Operation information of the DSP IC (T2).
Y11-2, 21-2, 31-2:
Not applied to this model.
MTT:
Mute Trigger
38
Byte No.
1 Mute condition
2 The last Mute Trigger
3 The previous state Mute Trigger of one
4 The previous state Mute Trigger of two
5 The previous state Mute Trigger of three
10. IF STATUS
IS1-3 （内部ステータス） :
5th byte
4th byte
3rd byte
2nd byte
1st byte
CS1-6:
BS1-7:
DS1-2:
T11-3:
T21-3:
Y11-2、21-2、31-2:
MTT:
Function
