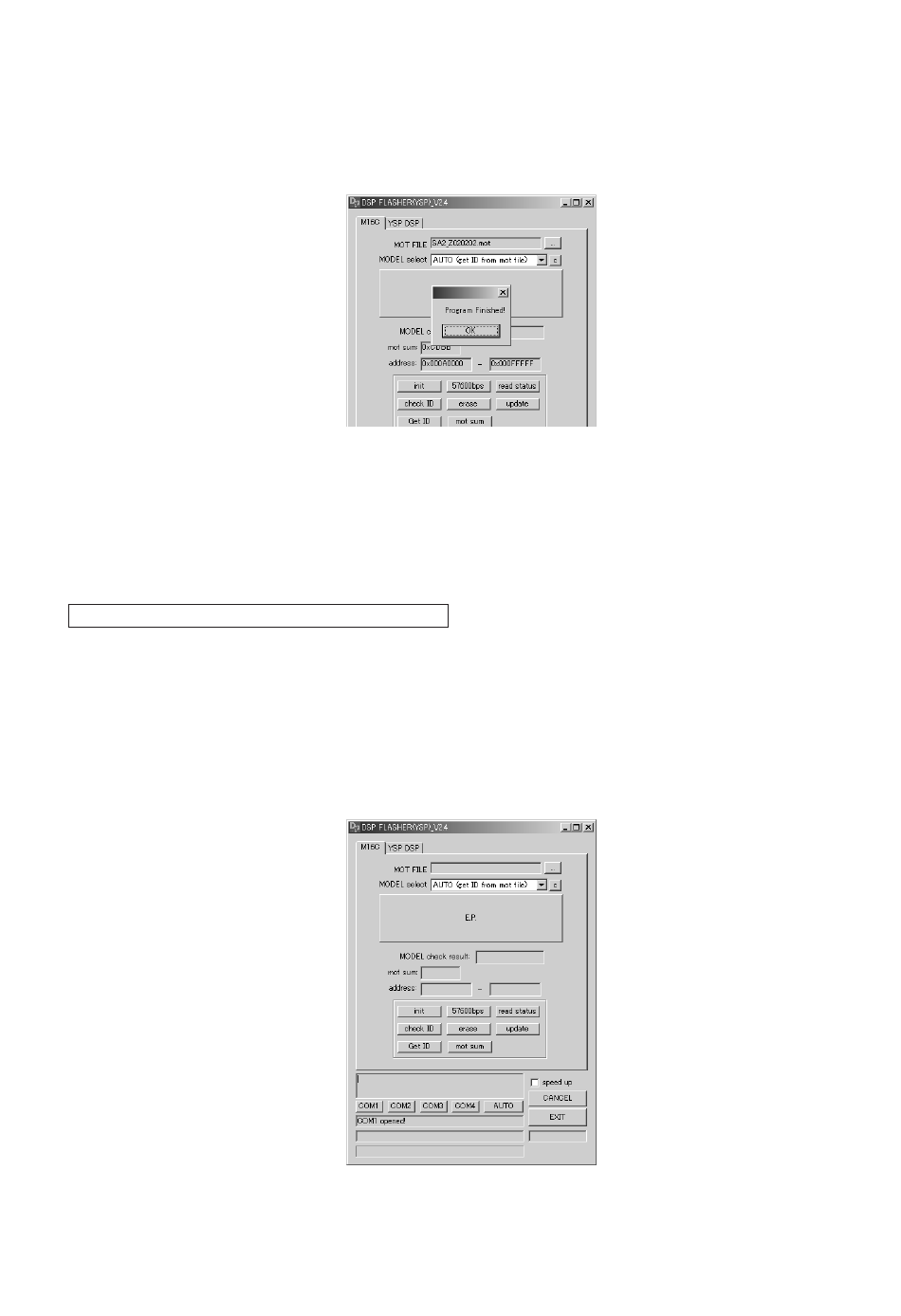

7. When the program transmission is completed, the
screen appears as shown below.
The press the [OK] button to end the procedure.
8. Disconnect the power cable of YSP-1100 from the AC
outlet.

Writing of DSP

1. Install DSP_FLASHER(YSP).exe into the PC.
2. Before turning on the power to YSP-1100 and PC, con-
nect between RS232C ports with the RS232C cable
(cross cable). (Fig. 1)
3. Start up DSP_FLASHER(YSP).exe, the screen will
appear as shown below.
SP-1
17
