Sp-1; Cert Mode; T1V; App - Loewe INDIVIDUAL SOUND PROJECTOR Service Manual

SP-1

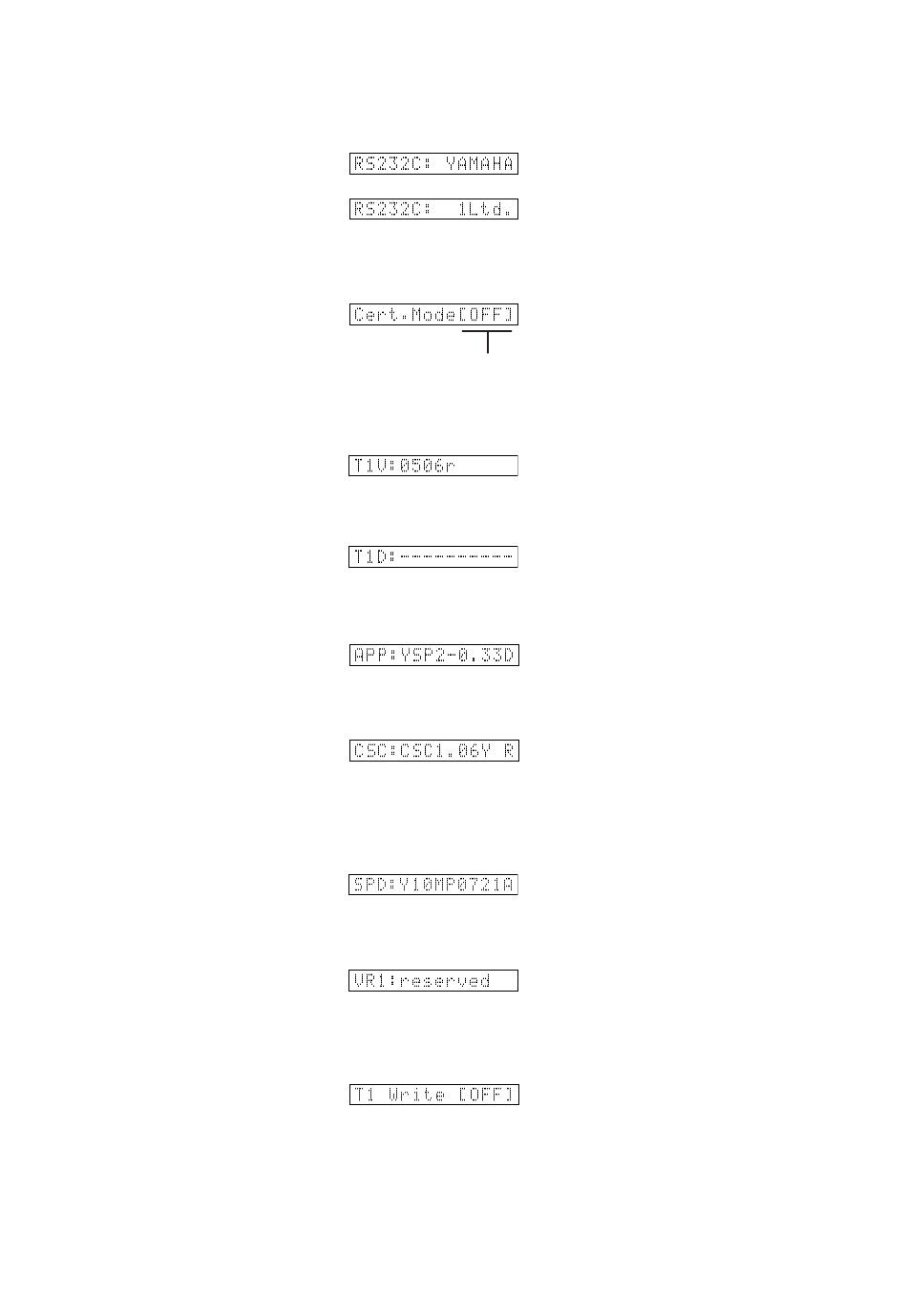

RS232C
Select the protocol of RS-232C connection.

Cert Mode

Select the special mode for testing.

T1V

The version of T1(DSP) is displayed.
T1D
Not applied to this model.

APP

The version of DSP Application Code is displayed.
CSC
The version of Core Start-Up Code is displayed.
SPD
The version of SPID is displayed.
* SPID is the abbreviation for the Sound Projector
Module Initialization Data Format.
VR1
Not applied to this model.
T1 Write
Select OFF/ON of firmware writing.
* Keep OFF selected other than when writing the firmware.
42
RS232C
It select it at the time of writing IC17. /
Cert Mode
* Be sure to set to "OFF"
T1V
T1D
APP
CSC
SPD
VR1
T1 Write
