Sime MURELLE EQUIPE 100 BOX ErP User, Installation And Servicing Instructions page 8

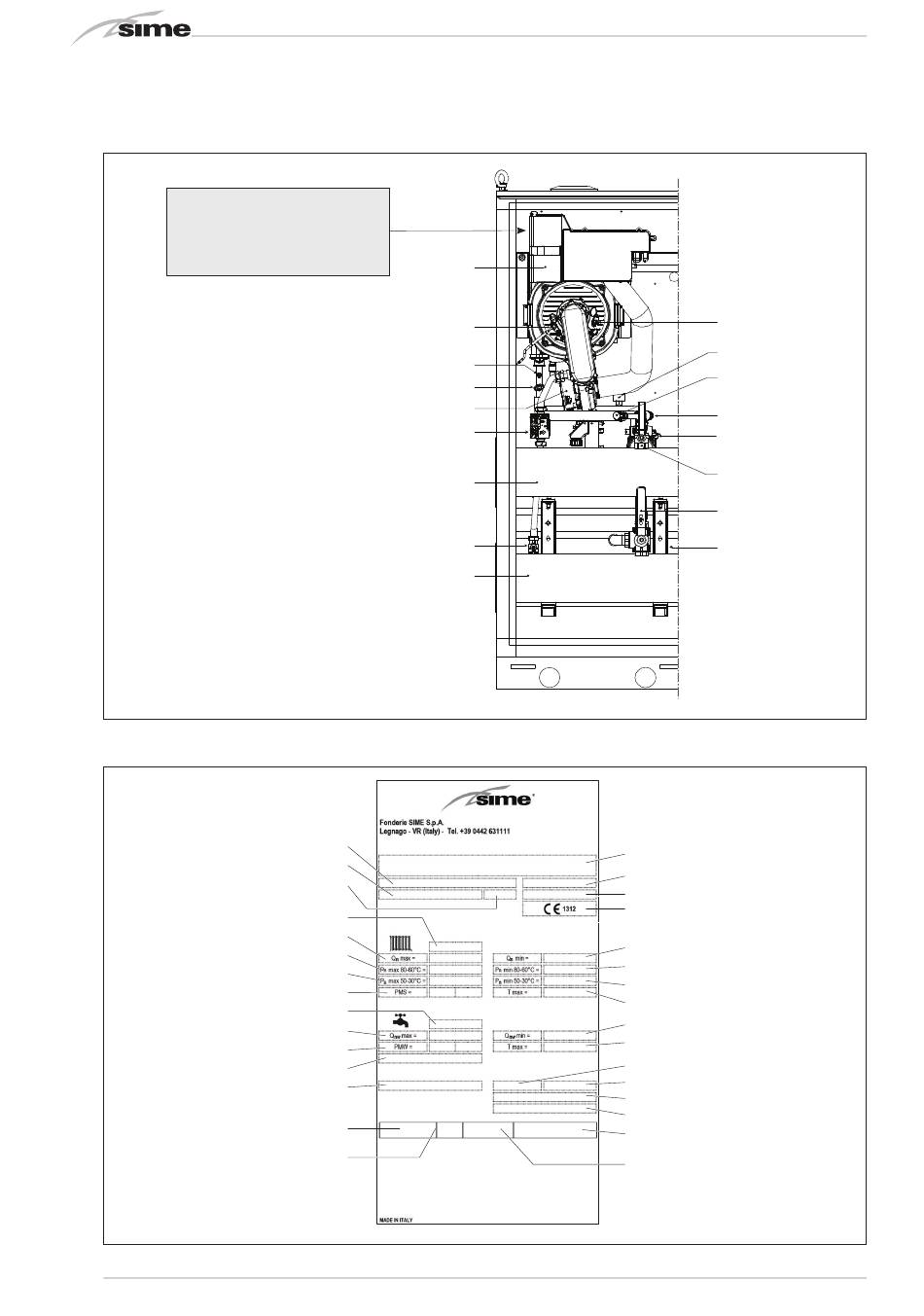

1.5 MAIN COMPONENTS (fig. 3)
Code 8117010
Model MURELLE EQUIPE 100 BOX ErP
Serial n. 9999999999
PAR 1 = 6 (G20) / 14 (G31)
PAR 2 = 9
KEY
1 System return manifold
2 Gas isolation valve
3 System supply manifold
4 Gas valve
5 Fan
6 Safety thermostat 100°C
7 Heating supply probe (SM)
8 Ignition electrode
9 Control panel
10 Ionisation electrode
11 Pressure transducer
12 Single module drain
13 Safety valve 3.5 bar
14 Pump high efficiency
15 Isolation valve
16 3-way isolation/drain valve
17 Gas manifold
CAUTION: To access the control panel (9)
remove the two screws which secure it
to the support bracket and turn the panel
downwards.
1.6 TECHNICAL DATA PLATE (fig. 3/a)
YEAR OF CONSTRUCTION
WATER CONTENT IN BOILER
HEAT INPUT MAX
HEAT OUTPUT MAX (80-60°C)
HEAT OUTPUT MAX (50-30°C)
MAX OPERATING PRESSURE
CONTENTS D.H.W.
HEAT INPUT MAX D.H.W.
MAX OPERATING PRESSURE D.H.W.
D.H.W. FLOW RATE
MAX POWER ABSORBED
COUNTRIES OF DESTINATION
8
MODEL
SERIAL NUMBER
POWER SUPPLY
CATEGORY
9
8
7
6
5
4
3
2
1
TYPE
CODE
PIN NUMBER
DIRECTIVE OF REFERENCE
HEAT INPUT MIN
HEAT OUTPUT MIN (80-60°C)
HEAT OUTPUT MIN (50-30°C)
MAX OPERATING PRESSURE
HEAT INPUT MIN D.H.W.
MAX OPERATING PRESSURE D.H.W.
ELECTRICAL PROTECTION GRADE
NOx CLASS
CODE GAS COUNCIL NUMBER (UK)
CERTIFICATION WRAS (UK)
TYPE OF GAS
GAS SUPPLY PRESSURE
CLASSIFICATIONS
10
11
12
13
14
15
16
17
Fig. 3
Fig. 3/a
