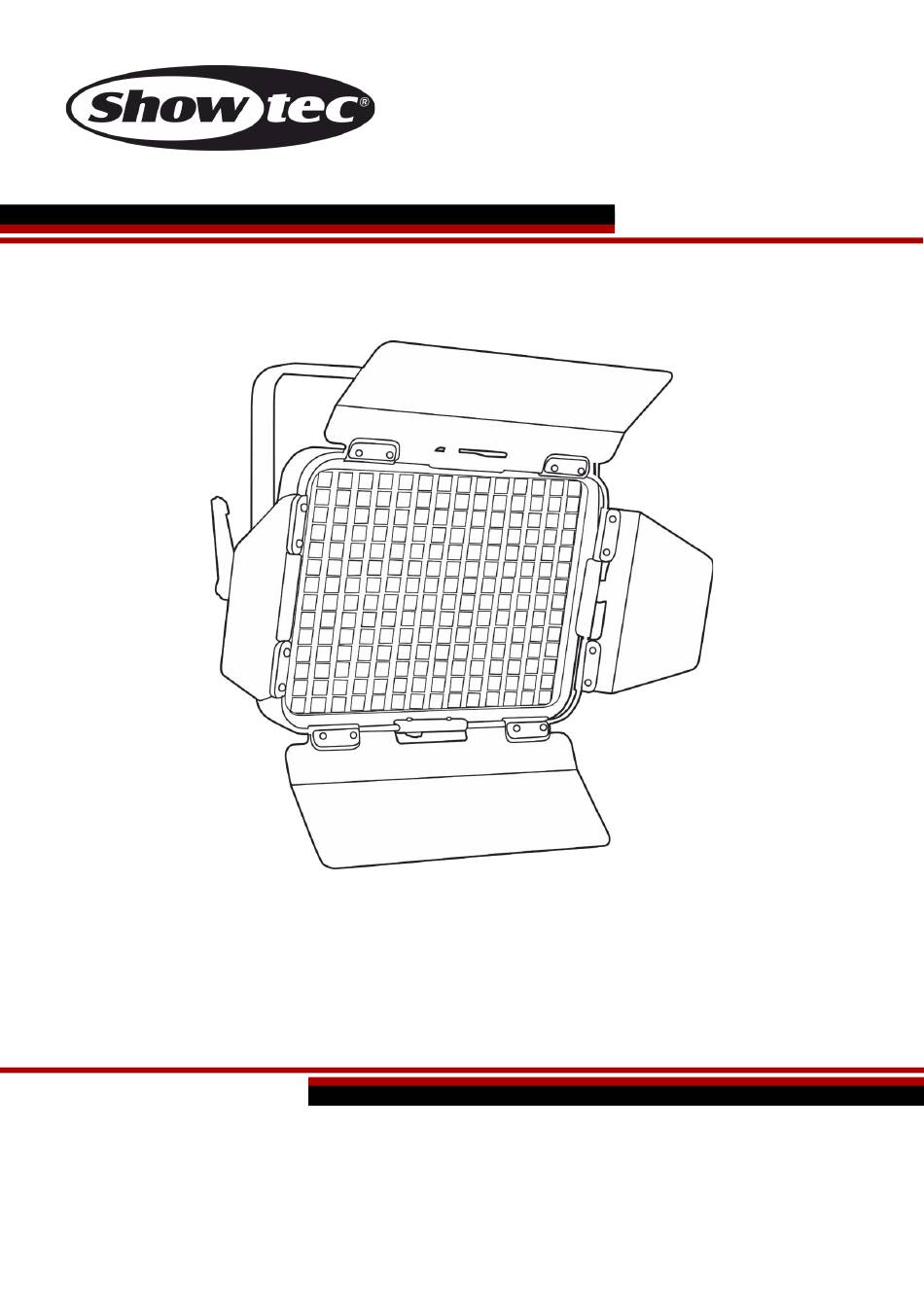

- Page 1 USER MANUAL ENGLISH Media Panel 100 Product code: 33301 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 Media Panel 100 Preface Thank you for purchasing this Showtec product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
Media Panel 100 Table of contents Introduction ................................3 Before Using the Product ..........................3 Intended Use ............................... 3 Product Lifespan ..............................3 LEDs Lifespan ............................... 3 Text Conventions ..............................4 Symbols and Signal Words ..........................4 Symbols on the Information Label ........................5 Safety .................................. -
Page 4: Introduction
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: ● Showtec Media Panel 100 ● Schuko to IEC power cable (1,5 m) ● Four-blade barndoor ●... -
Page 5: Text Conventions
Media Panel 100 Text Conventions Throughout the user manual the following text conventions are used: ● Buttons: All buttons are in bold lettering, for example “Press the UP/DOWN buttons” ● References: References to chapters and parts of the device are in bold lettering, for example: “Refer to 2. -
Page 6: Symbols On The Information Label
Media Panel 100 Symbols on the Information Label This product is provided with an information label. The information label is located on the backside of the device. The information label contains the following symbols: This device shall not be treated as household waste. This device falls under IEC protection class I. -
Page 7: Safety
Media Panel 100 Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. Warnings and Safety Instructions DANGER Danger for children For adult use only. - Page 8 Media Panel 100 WARNING Risk of burns due to hot surface The surface and the inner parts of the device can become very hot during operation. ● Do not touch the device during operation. ● Allow the device to cool down for at least 15 minutes before handling. WARNING Possible eye damage caused by high light intensity Possibly hazardous optical radiation emitted from this device.
-
Page 9: Requirements For The User
Media Panel 100 Attention For professional use only This device shall be used only for the purposes it is designed for. This device is designed to be used as an indoor spot. Any incorrect use may lead to hazardous situations and result in injuries and material damage. -
Page 10: Description Of The Device
Media Panel 100 Description of the Device The Media Panel 100 a bright 100 watt Daylight White Video LED Panel suited for various studio and video applications. A V-Mount Battery Holder is optional for mobile use (ordercode 33310). This optional accessory requires a 42V battery life pack. -
Page 11: Back View
Media Panel 100 Back View Fig. 03 05) LED Display 06) Dimmer control 07) ON/OFF 08) 24 V DC power adapter IN Product code: 33301... -
Page 12: Product Specifications
Media Panel 100 Product Specifications Model: Media Panel 100 Electrical: Input voltage: 100–240 V AC, 50/60 Hz Power Connector in Low Voltage DC plug Power consumption: 100 W Physical: Dimensions: 487 x 337 x 55 mm (LxWxH) Weight: 2,6 kg Optics: Light source: 392x 0,5 W White LED... -
Page 13: Optional Accessories
Media Panel 100 Optional Accessories The Media Panel is delivered with accessories. You can additionally purchase the following accessory: Product code: 33310 (Showtec A V-Mount Battery Holder is optional for mobile use) Dimensions Fig. 04 Product code: 33301... -
Page 14: Installation
Media Panel 100 Installation Safety Instructions for Installation WARNING Incorrect installation can cause serious injuries and damage of property. If trussing systems are used, installation must be carried out only by instructed or skilled persons. Follow all applicable European, national and local safety regulations concerning rigging and trussing. Personal Protective Equipment During installation and rigging wear personal protective equipment in compliance with the national and site-specific regulations. -
Page 15: Rigging
Media Panel 100 Rigging The device can be positioned on a flat surface or mounted to a truss or other rigging structure in any orientation. Make sure that all loads are within the pre-determined limits of the supporting structure. Fig. 05 CAUTION Restrict the access under the work area during rigging and/or derigging. - Page 16 Media Panel 100 To mount the device, follow the steps below: 01) Use a clamp to attach the device to the supporting structure, as shown in Fig. 05. Make sure that the device cannot move freely. 02) Secure the device with a secondary suspension, for example a safety cable. Make sure that the secondary suspension can hold 10 times the weight of the device.
-
Page 17: Angle Adjustment
Media Panel 100 Angle Adjustment You can adjust the angle of the device with the adjustment screw (01). 01) Turn the adjustment screw (01) counterclockwise to release it. 02) Tilt the device to the desired angle (see Fig. 06). 03) Turn the adjustment screw (01) clockwise to tighten it. Make sure that the device cannot move freely after the adjustment screw (01) is tightened. -
Page 18: Barndoor Installation
Media Panel 100 Barndoor Installation The accessory frame is equipped with a spring-loaded clip. This prevents the barndoor from falling out. Install the barndoor frame (see Fig. 08). Hold the spring-loaded clip and pull it upwards on the top of the device and pull it downwards at the bottom (see Fig. -
Page 19: Free-Standing Bracket Installation
Media Panel 100 Free-standing Bracket Installation Put the free-standing bracket on the Media Panel. Install all elements as shown in Fig. 11. Tighten the screws. Fig. 11 Product code: 33301... -
Page 20: Connecting To Power Supply
Media Panel 100 Connecting to Power Supply DANGER Electric shock caused by short-circuit The device accepts AC mains power at 100–240 V and 50/60 Hz. Do not supply power at any other voltage or frequency to the device. This device falls under IEC protection class I. Make sure that the device is always electrically connected to the ground (earth). -
Page 21: Setup
Media Panel 100 Setup Warnings and Precautions Attention Connect the cable before supplying power. Stand-alone Setup The Media Panel functions as a stand-alone device, It cannot be connected to a controller or to other devices. It can be only be operated manually. For more information about the control mode, refer to 6.2. -
Page 22: Operation
Media Panel 100 Operation Safety Instructions for Operation Attention This device must be used only for the purposes it is designed for. This device is intended for professional use as an indoor spot. It is suitable only for indoor installation. This device is not suitable for households and for general lighting. -
Page 23: Control Panel
Media Panel 100 Control Panel A) LED display Dimmer control Fig. 15 ● Use the Dimmer Control to increase/decrease numeric dimmer values. Start-up The display will show the current software version. Dimmer In this menu you can set the dimmer. 01) Turn the control wheel to set the dimmer intensity. -
Page 24: Troubleshooting
Media Panel 100 Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage. -
Page 25: Maintenance
Media Panel 100 Maintenance Safety Instructions for Maintenance DANGER Electric shock caused by dangerous voltage inside Disconnect power supply before servicing or cleaning. WARNING Risk of burns due to hot surface Allow the device to cool down for at least 15 minutes before servicing or cleaning. Preventive Maintenance Attention Before each use, examine the device visually for any defects. -
Page 26: Basic Cleaning Instructions
Media Panel 100 Basic Cleaning Instructions The external lens of the device must be cleaned periodically in order to optimize the light output. The cleaning schedule depends on the conditions at the site where the device is installed. When smoke or fog machines are used at the site, the device will need more frequent cleaning. -
Page 27: Deinstallation, Transportation And Storage
Media Panel 100 Deinstallation, Transportation and Storage Instructions for Deinstallation WARNING Incorrect deinstallation can cause serious injuries and damage of property. ● Let the device cool down before dismounting. ● Disconnect power supply before deinstallation. ● Always observe the national and site-specific regulations during deinstallation and derigging of the device. - Page 28 ©2021 Showtec...
