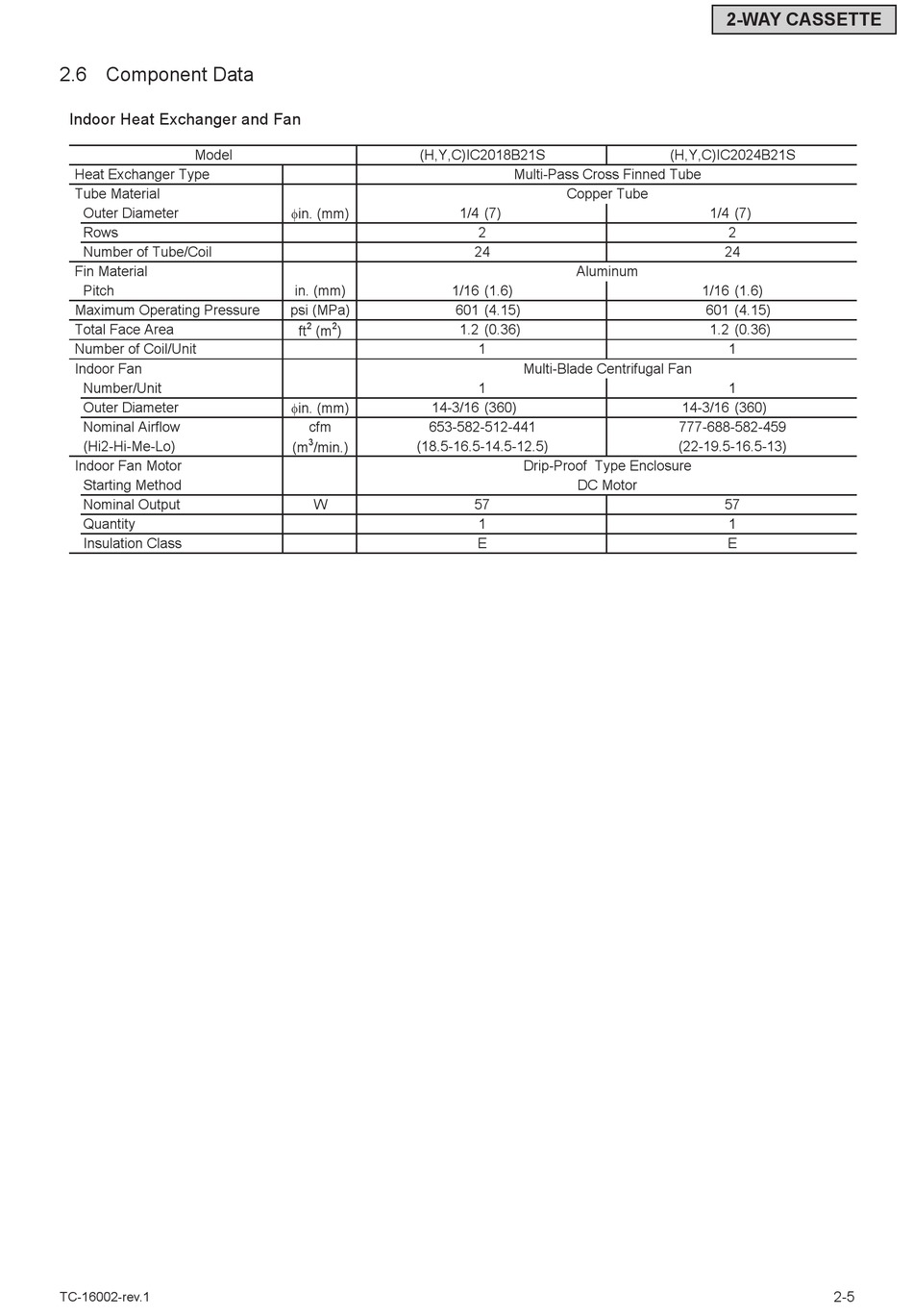

2.6 Component Data

Indoor Heat Exchanger and Fan
Model
Heat Exchanger Type
Tube Material
Outer Diameter
Rows
Number of Tube/Coil
Fin Material
Pitch
Maximum Operating Pressure
Total Face Area
Number of Coil/Unit
Indoor Fan
Number/Unit
Outer Diameter
Nominal Airflow
(Hi2-Hi-Me-Lo)
Indoor Fan Motor
Starting Method
Nominal Output
Quantity
Insulation Class
TC-16002-rev.1
(H,Y,C)IC2018B21S
1/4 (7)
in. (mm)
in. (mm) 1/16 (1.6)
psi (MPa) 601 (4.15)
2 2 1.2 (0.36)
ft (m )
14-3/16 (360)
in. (mm)
cfm 653-582-512-441
3
(18.5-16.5-14.5-12.5)
(m /min.)
W
Multi-Pass Cross Finned Tube
Copper Tube
2
24
Aluminum
1
Multi-Blade Centrifugal Fan
1
Drip-Proof Type Enclosure
DC Motor
57
1
E
2-WAY CASSETTE
(H,Y,C)IC2024B21S
1/4 (7)
2
24
1/16 (1.6)
601 (4.15)
1.2 (0.36)
1
1
14-3/16 (360)
777-688-582-459
(22-19.5-16.5-13)
57
1
E
2-5
