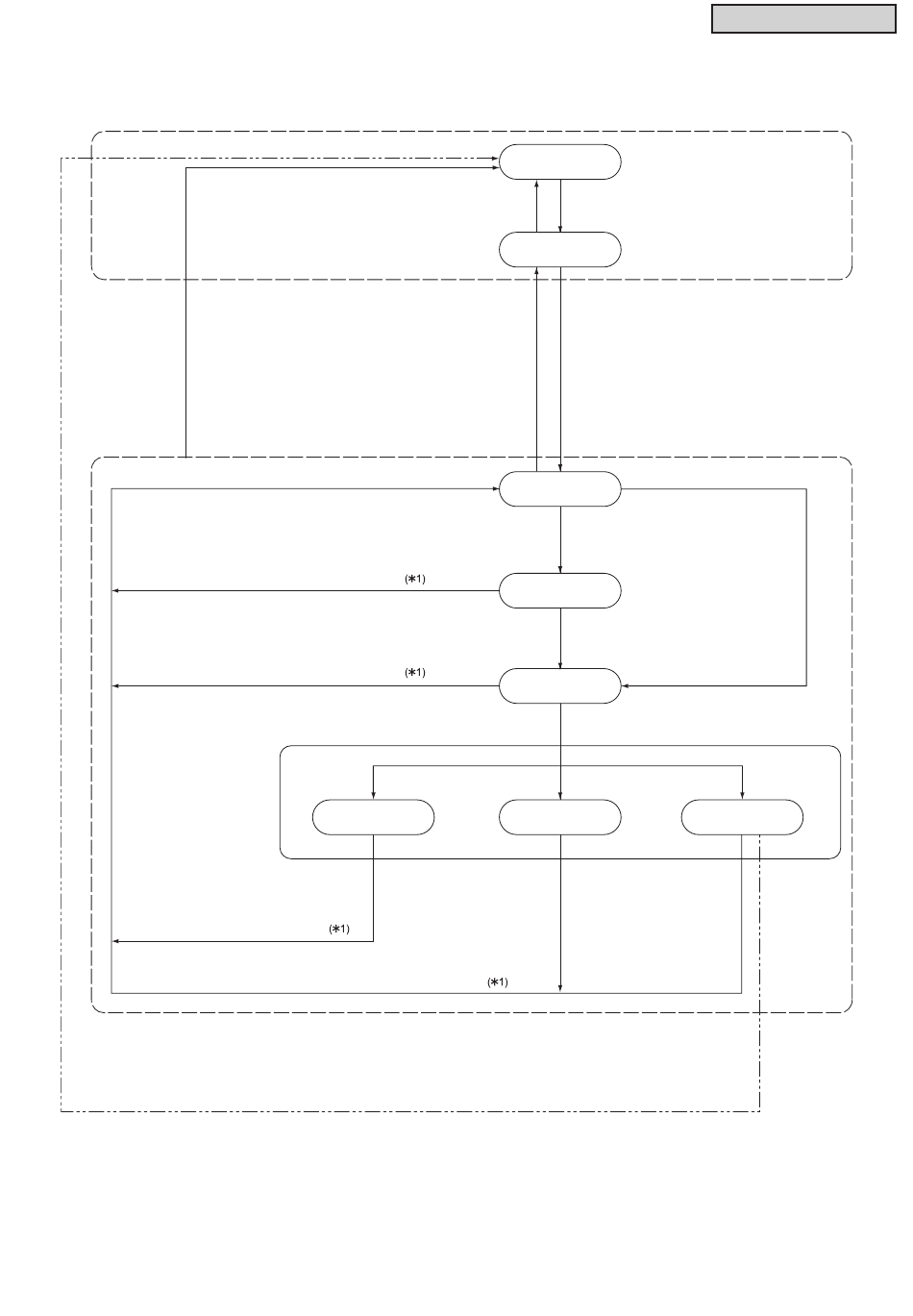

■ Control for Motion Sensor (with Decorative Panel P-AP90DNA)
Operation Stop
Much human activity is discerned for three minutes within a
10-minute period, or the setting is changed for the motion sensor
on the wired controller.
Much or little human activity is discerned for three minutes within a
10-minute period, or the setting is changed for the motion sensor
on the wired controller.
Much or little human activity is discerned
for three minutes within a 10-minute period,
or the setting is changed for the motion sensor
on the wired controller.
Much human activity is accumulated for five times within a 10-minute period,
or the setting is changed for the motion sensor on the wired controller.-
Control by Wired Controller
When "If Absent" is set as "Stop" on the wired controller and
all the indoor units with motion sensors connected to the same wired controller
are moved to "Mode 3, then the operation is stopped from the wired controller.
(*1) Motion sensor settings on the wired controller are "Sensor", "If Absent", "Check Interval"
and "Simultaneous Operation / Individual Operation".
The amount of human activity is according to the following information detected by the motion sensor.
None: No Human Activity (Absent)
Small: Little Human Activity
Large: Much Human Activity
TC-16002-rev.1
Operation Stop
When the wired controller is set to one of the
following or at Test Run Mode.
1. Motion Sensor setting: OFF
2. Motion Sensor setting: Cooling/Dry, with
operation mode in Heating or Automatic
Cooling Heating in Heating Operation.
3. Motion Sensor setting: Heating, with
operation mode in Cooling, Dry, Fan or
Automatic Cooling Heating in Heating
Operation.
Mode 3
"If absent" Setting
: Running
Running
Operation: OFF
Operation Start
Normal Operation
When the wired controller is set to one of the
following and not at Test Run Mode.
1. Motion Sensor setting: ON
2. Motion Sensor setting: Cooling/Dry, with operation
mode in Cooling, Dry, Fan or Automatic Cooling
Heating in Cooling Operation.
3. Motion Sensor setting: Heating, with operation mode
in Heating or Automatic Cooling Heating in
Cooling Operation.
No human activity is
sensed for 10 minutes.
Normal Operation
Little or no human activity is
sensed for 10 minutes.
Mode 1
No human activity is
sensed for 10 minutes.
Mode 2
No human activity is
continued for selected time in "Check Interval" .
"If absent" Setting
: Stand-by
Stand-by
2-WAY CASSETTE
Motion Sensor : OFF
Motion Sensor : ON
"If absent" Setting
: Stop
Stop
