OPTIONAL PARTS

3.3 Antibacterial Long Life Air Filter: F-90MD-K1

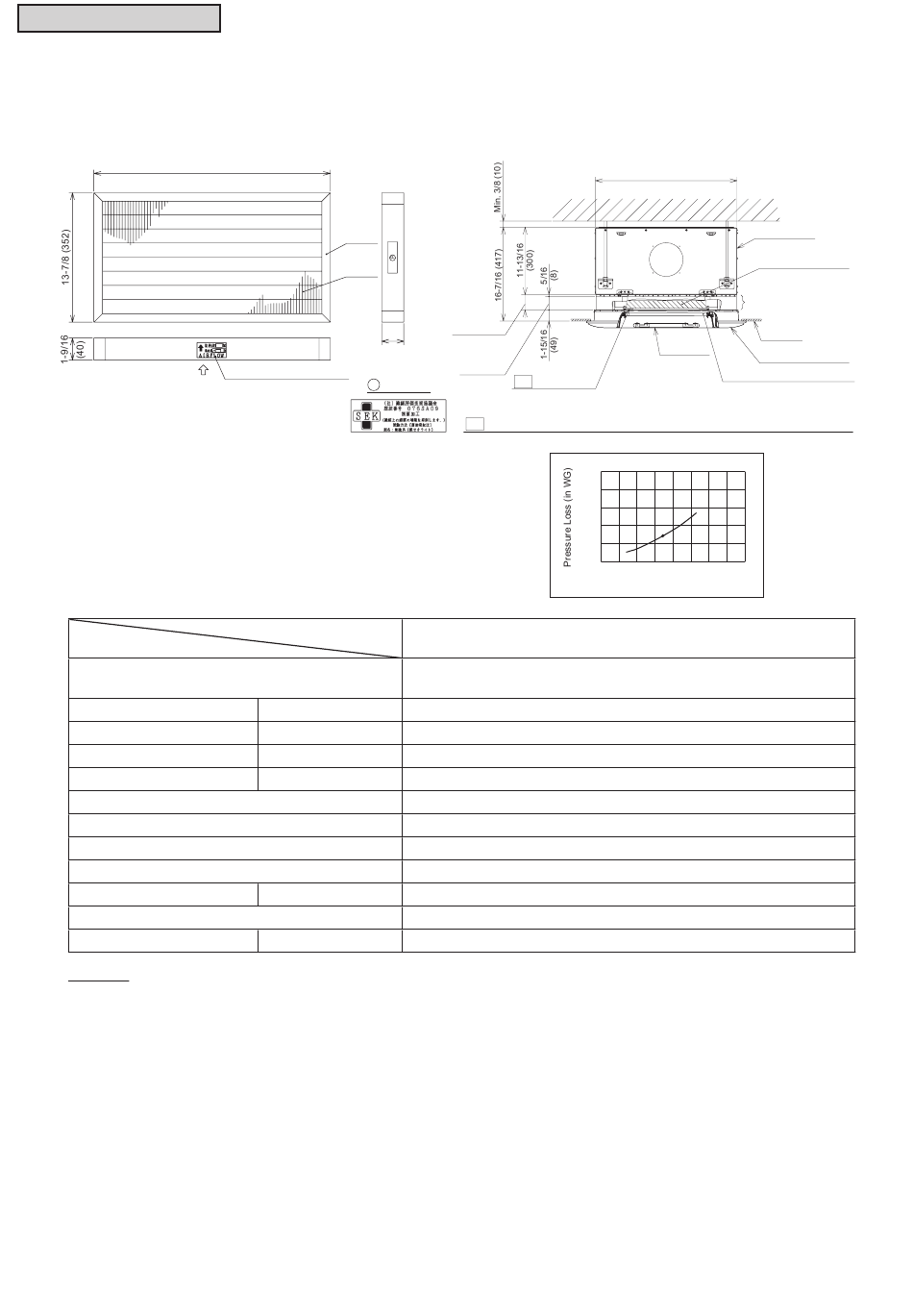

Dimensional Data
32-1/16 (814)
air
Specifications
Item
Applicable Indoor Unit Model
((H,Y,C)IC2**B21S)
Dust Collection Efficiency
Airflow
Initial Pressure Loss
End Pressure Loss
Color (Filter/Frame)
Life Period
Cleaning
Accessory
Weight
Performance
Filter Material
NOTES:
1. This product is designed for standard air conditioning only.
Do not use this product for specific purposes, such as oil drifts, etc.
2. The dust collection efficiency is against the general airborne dust (Dust Concentration: 0.15mg/m
It is not the collection efficiency for bacteria and mold. (*1)
3. The life period may differ depending on the environment. If dust accumulates on the filter, the antibacterial
efficiency may decrease.
4. Change the filter if its life period is over.
5. Select the function selection mode with the remote control switch and set the high speed mode to "High
Speed 1" before using this antibacterial long life air filter.
Refer to the "Installation and Maintenance Manual" for details of high speed mode.
6. When the high speed mode "HIGH" or "HIGH 2" is used, the noise level may increase.
7. For this antibacterial long life air filter, the airflow volume "HIGH 2" will be equal to "HIGH".
8. The life period of the filter using the air volume "HIGH 2" is somewhat shorter than that of the filter using
"HIGH."
3-6
Paper
Frame
Filter
Media
1-9/16
(40)
Model / Airflow Direction
P SEK Mark
Model
%
3
cfm (m /min.)
in WG (Pa)
in WG (Pa)
lbs (kg)
Antibacterial Fiber
Installation State
2-11/16 (68)
Installation
Height
2-3/8 (60)
*1 Filter Holder
*1
Insert the antibacterial long life filter into the filter box; then fix with filter holder.
0.20
0.15
0.10
0.05
0
F-90MD-K1
018 and 024
65 (Gravimetric Method *1)
688 (19.5)
0.07 (17.0)
0.22 (55.9)
White/Brown
8 Years (with maintenance per 2,500 hours)
Not Available (change the filter if its life period is over)
Installation Manual
2.0 (0.9)
Prevent Bacteria and Mold from Multiplying
Synthetic Fiber Non-woven Fabric
Unit: inch (mm)
24-13/16 (630)
Indoor Unit
Antibacterial
Long Life Air Filter
Filter Box (Option)
Ceiling
Air Inlet
Flat Grille
Decorative Panel
Long Life Filter
(Attached with
Optional Decorative Panel)
400 800 1200
Air Volume (cfm)
3
).
