DOAS

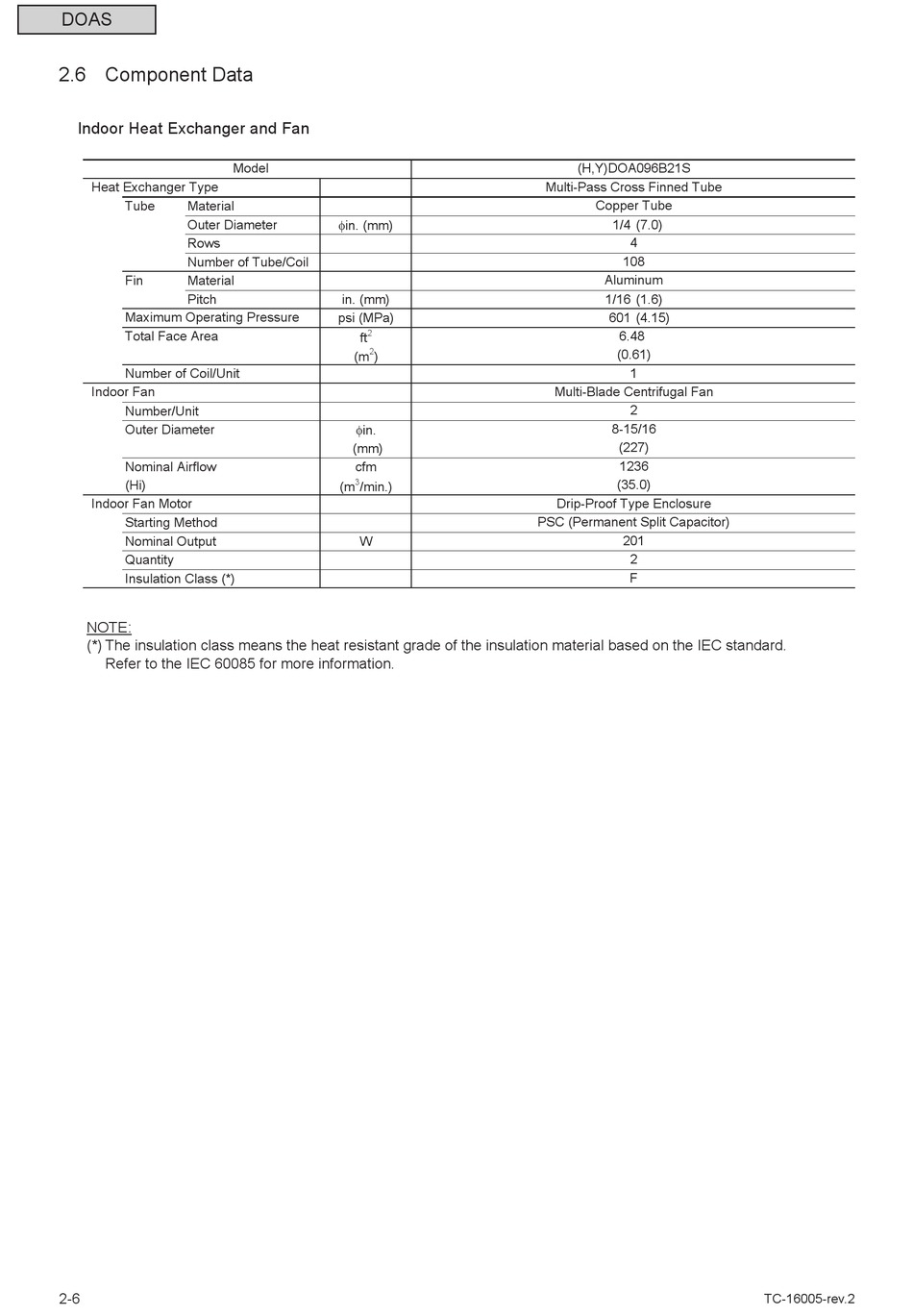

2.6 Component Data

Indoor Heat Exchanger and Fan
Heat Exchanger Type
Tube Material
Outer Diameter
Rows
Number of Tube/Coil
Fin Material
Pitch
Maximum Operating Pressure
Total Face Area
Number of Coil/Unit
Indoor Fan
Number/Unit
Outer Diameter
Nominal Airflow
(Hi)
Indoor Fan Motor
Starting Method
Nominal Output
Quantity
Insulation Class (*)
NOTE:
(*) The insulation class means the heat resistant grade of the insulation material based on the IEC standard.
Refer to the IEC 60085 for more information.
2-6
Model
in. (mm)
in. (mm)
psi (MPa)
2
ft
2
(m )
in.
(mm)
cfm
3
(m /min.)
W
(H,Y)DOA096B21S
Multi-Pass Cross Finned Tube
Copper Tube
1/4 (7.0)
4
108
Aluminum
1/16 (1.6)
601 (4.15)
6.48
(0.61)
1
Multi-Blade Centrifugal Fan
2
8-15/16
(227)
1236
(35.0)
Drip-Proof Type Enclosure
PSC (Permanent Split Capacitor)
201
2
F
TC-16005-rev.2
