● Do not run the connecting cable for the motion sensor kit and the power source cable in parallel.
It may cause malfunction of the motion sensor kit because of electromagnetic interference.
● When the motion sensor kit is mounted with the indoor unit's installation, start from procedure
● When the motion sensor kit is mounted after the indoor unit's installation, be sure to turn off the power
source completely before starting installation.
Removing Corner Pocket Covers
1

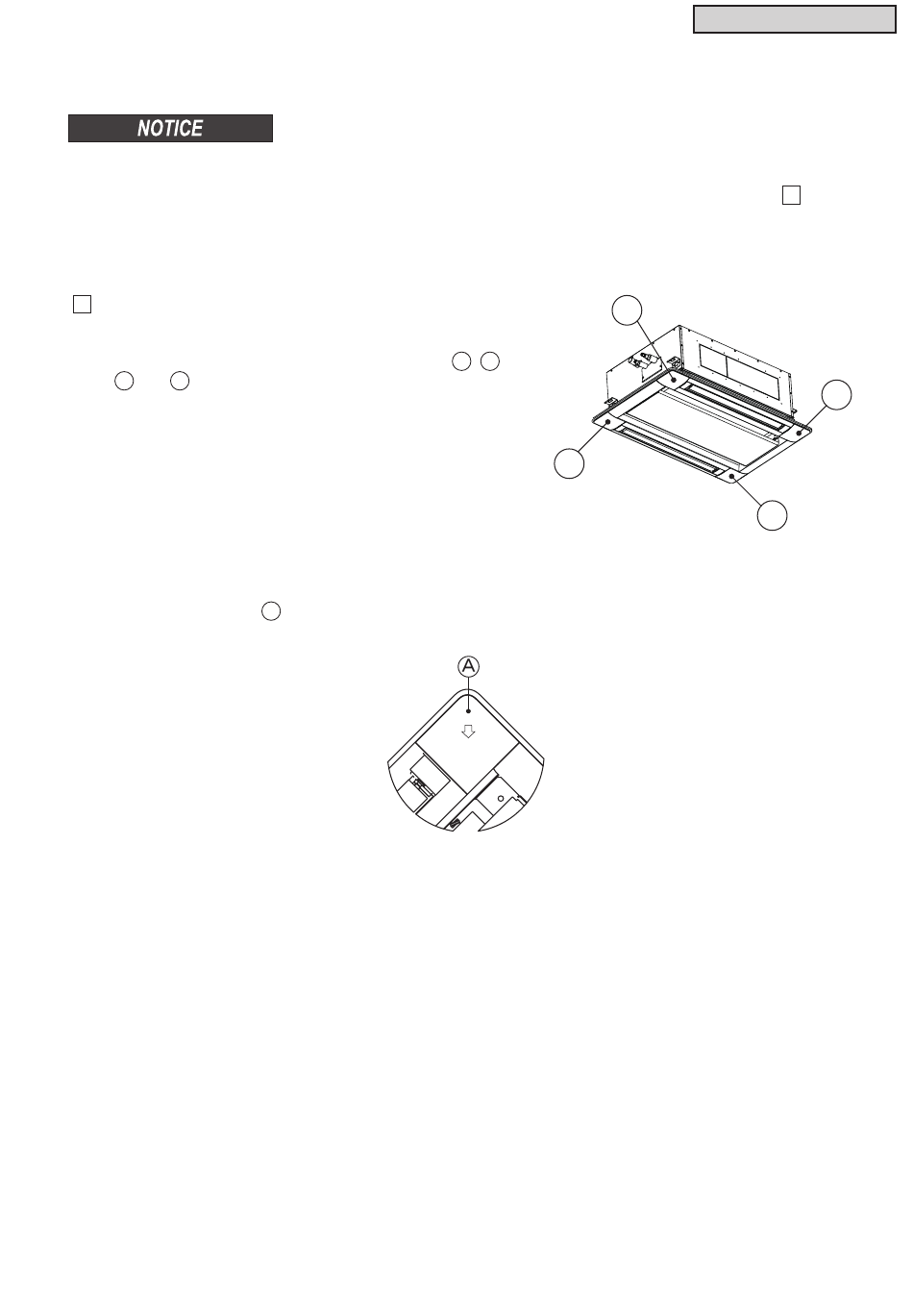

(1) The corner pocket cover with the motion sensor can be
attached to any of the corners (four directions, 1 , 2 ,
3 and 4 ). Determine the attaching place as the user
requests.
(2) Remove the corner pocket covers and the corner pocket cover with the motion sensor. They can be
removed pulling the A part in the direction of the arrow as in the figure below.
TC-16002-rev.1
OPTIONAL PARTS
1
4
.
2
2
3
