2-WAY CASSETTE

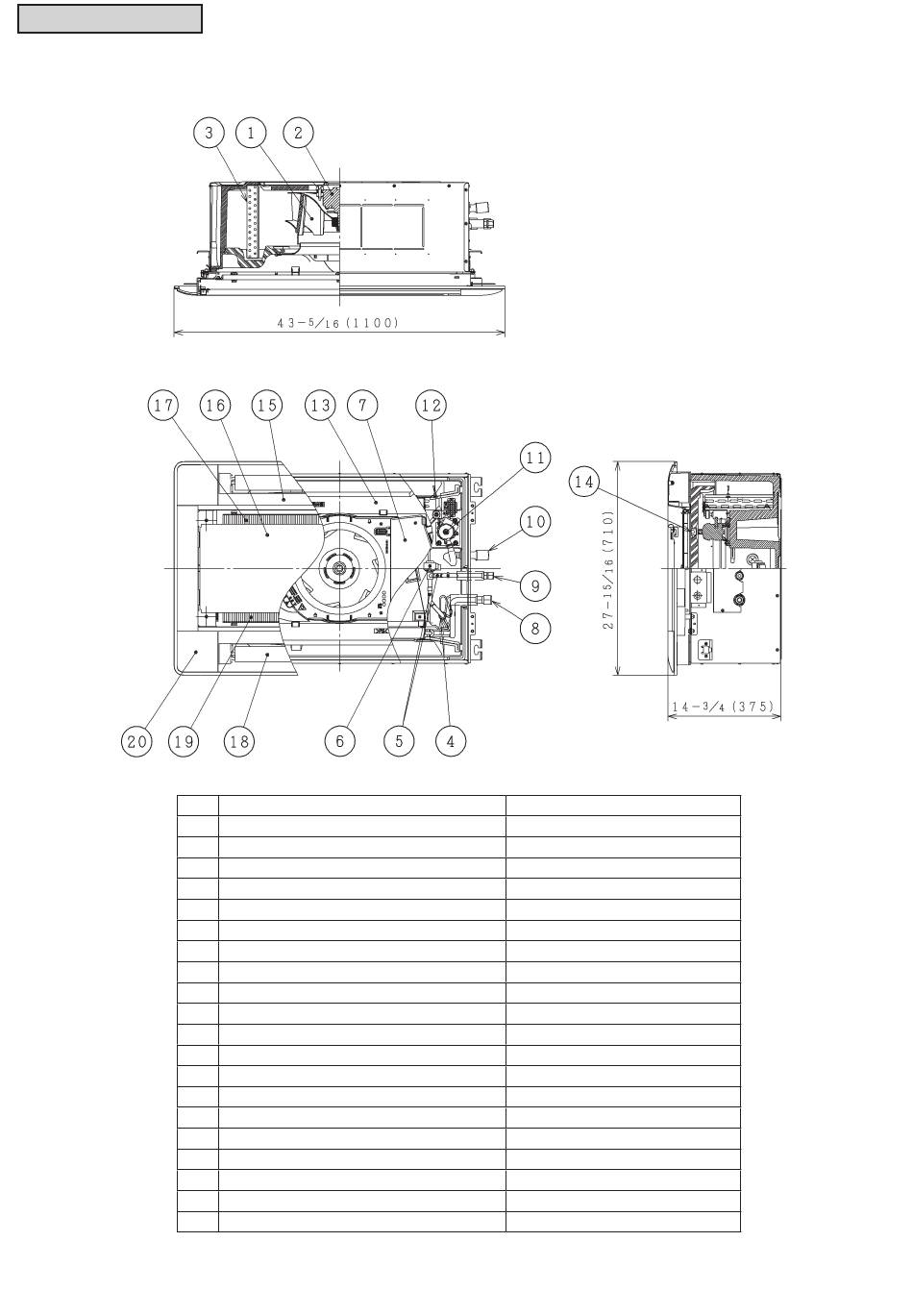

2.5 Structure

No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
2-4
Part Name
Fan
Fan Motor
Heat Exchanger
Distributor
Strainer
Electronic Expansion Valve
Electrical Control Box
Refrigerant Gas Pipe Connection
Refrigerant Liquid Pipe Connection
Condensate Pipe Connection
Drain-up Mechanism
Float Switch
Condensate Pan
Rubber Plug for Drain
Decorative Panel (P-AP90DNA)
Air Inlet Grille
Air Filter
Air Outlet
Air Inlet
Cover for Corner Pocket
Unit: inch (mm)
Remarks
DC
with f5/8 (15.88) Flare Nut
with f3/8 (9.52) Flare Nut
VP25 (OD f1-1/4 (32))
Optional
(Use with P-AP90DNA)
TC-16002-rev.1
