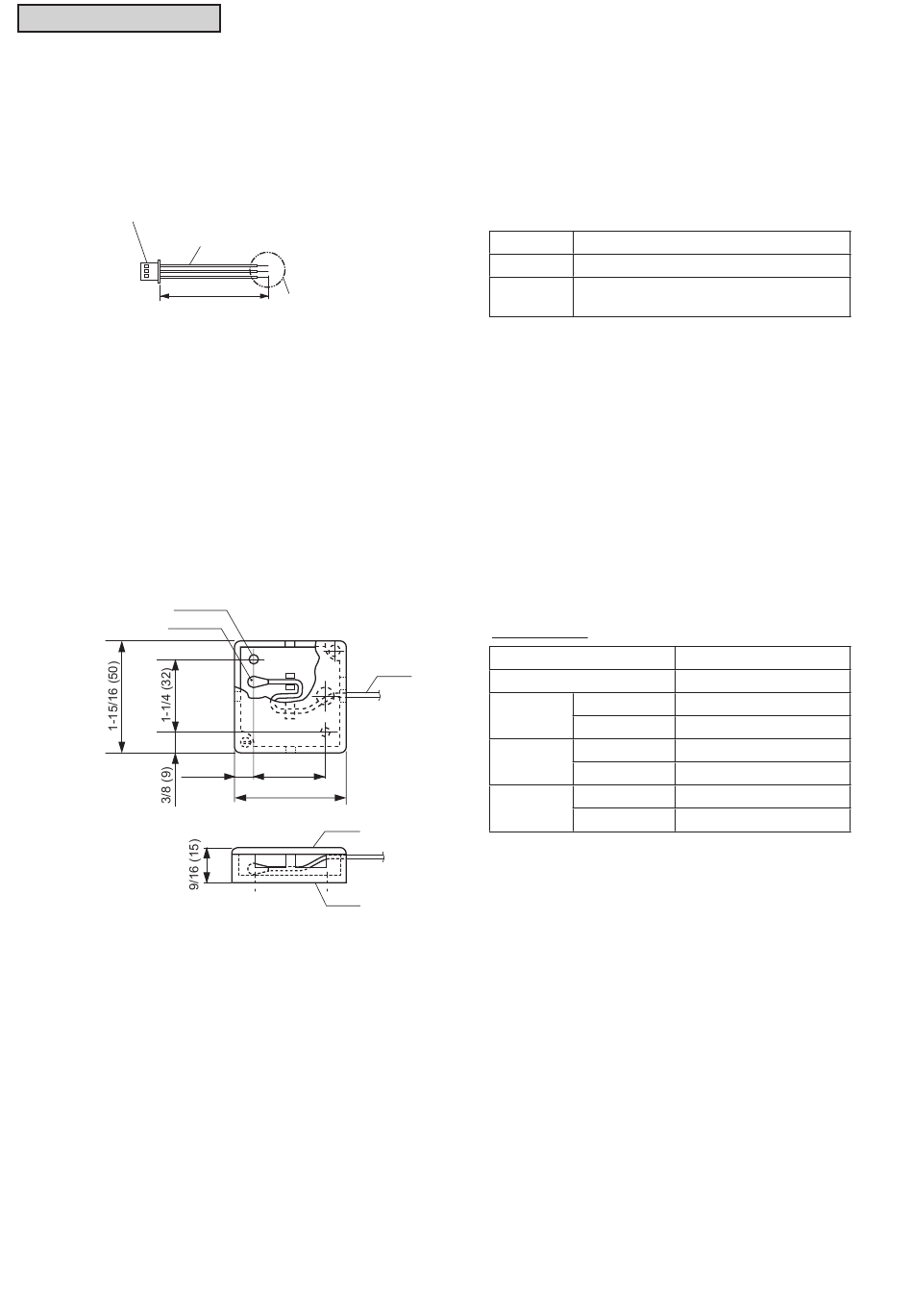

3.7 3P Connector Cable: PCC-1A
This accessory connector is utilized to provide remote start/stop capability (binary input) to an indoor unit and
provide operating status (binary output) of an indoor unit's functions. (System Parts: One set contains five
3P cords.)
Connector
("XARP-03V" of NIPPON
ACCHAKU TANSHI = JST)
Lead Wire AWG22 (0.3mm
Approximately
11-13/16inch (300mm)
3P Connector Cable

3.8 Remote Sensor: THM-R2A

When a remote temperature sensor is installed with an indoor unit, the indoor unit is configurable to use the
temperature at the location of the remote sensor OR the average of the unit's return air temperature and
the temperature at the location of the remote sensor to control that unit. (reference the specific controller
Installation Manual for function configuration details)
2-φ4.5
Sensor
3/8 (9)
3-16
2
)
If long cord is needed,
connect field supplied
wires [AWG22 (0.3 to 0.5mm
with soldering.
Unit: inch (mm)
Cord
1-1/4 (32)
1-15/16 (50)
Case
Base
Name 3P Connector Cable
Model PCC-1A
One set contains five 3P connector
Remarks
cables.
2
)]
Specifications
Item
Model
Material
Case
Color
Material
Base
Color
Part Name
Sensor
Cord Length
Specification
THM-R2A
ABS Resin
Silky White
ABS Resin
Silky White
Thermistor
approx. 26 ft (8m)
TC-16002-rev.1
