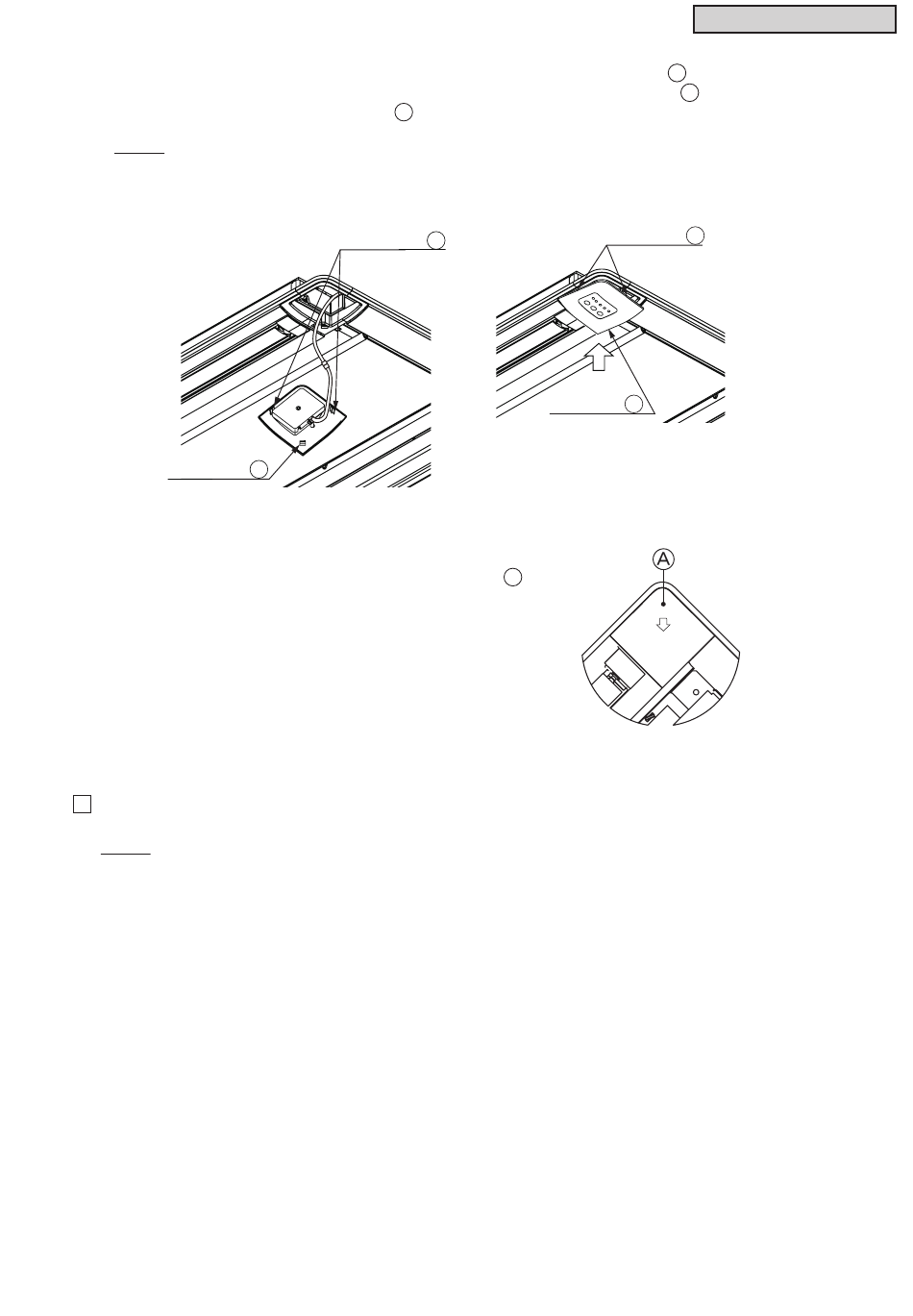

(2) While pushing the wiring into the corner pocket, insert two coupling hooks at A to the square hole of
the decorative panel, and push the IR receiver kit in the direction of the arrow ( A ) shown at the far
right. Then, insert the mounting tab at B to the square hole of the decorative panel.
NOTE:
Securely fasten the coupling hooks of the IR receiver kit to the decorative panel to avoid damage to
the mounting tabs.
Mounting Tab B
(3) Removing Corner Pocket Cover
The corner pocket covers can be removed pulling the A
part in the direction of the arrow.
After the installation work for the IR receiver kit is completed, attach the corner pocket covers (three
8
places). For details, refer to the installation manual for the decorative panel.
NOTE:
After the IR receiver kit is attached to the decorative panel, the one corner pocket cover becomes
unnecessary.
