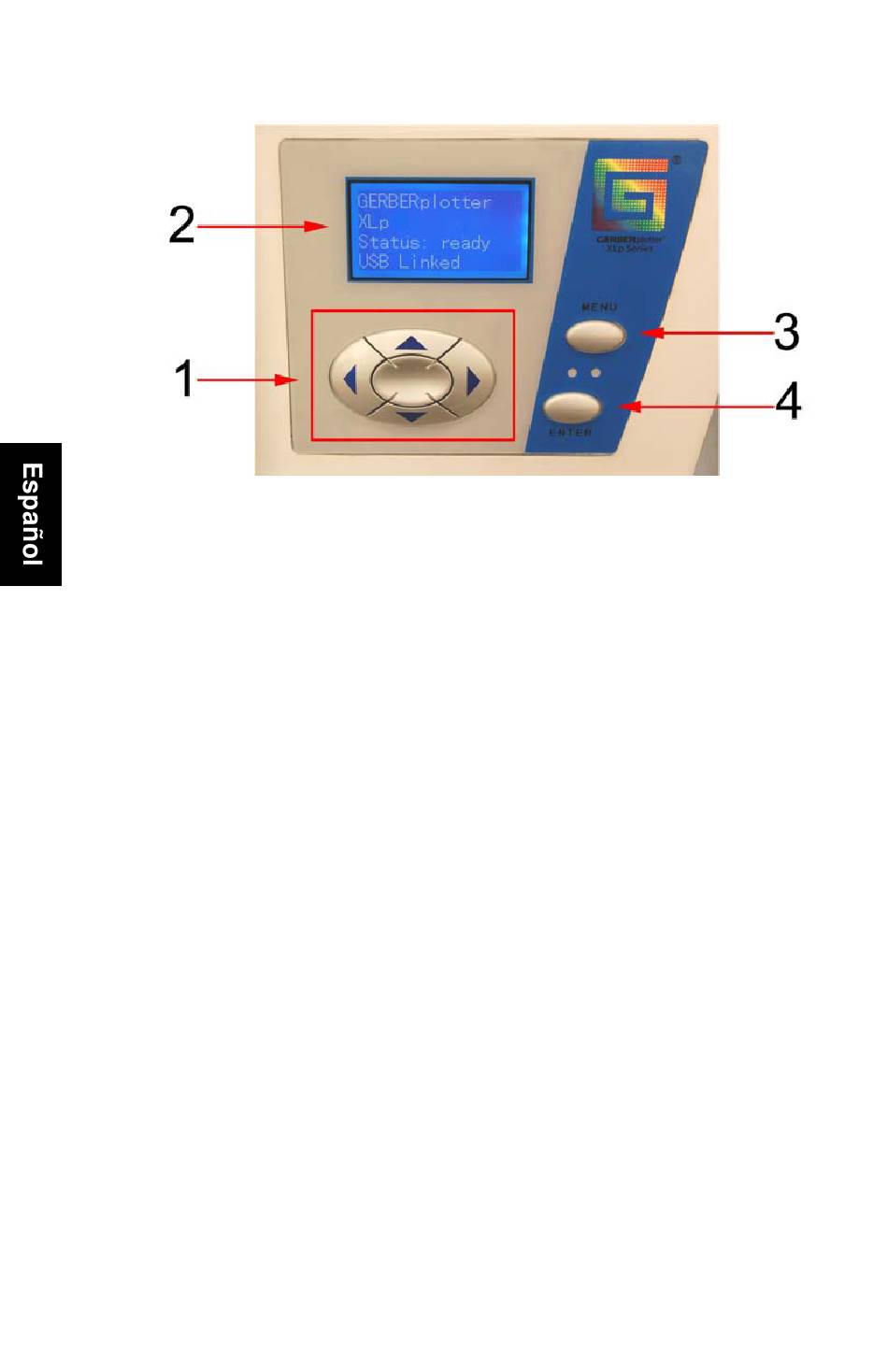

Claves de la figura y descripción del panel de control
(1) Teclas de flechas
Se usan para navegar los mandos
de la pantalla LCD en cuatro
direcciones: izquierda, derecha,
arriba y abajo.
(2) Pantalla LCD
Presenta y controla los mandos de
la pantalla LCD del graficador.
________________________________________________
Figura 3. Panel de control
(3) Botón de menú
Se utiliza para ver menús en la
pantalla LCD.
(4) Botón de introducción
Se utiliza al calibrar el graficador
mediante la pantalla LCD.
